*Discontinued* Rosslare - AC215IP - Scalable Networked Access Control - PCBA Only - 2 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC

*Discontinued* Rosslare - AC215IP - Scalable Networked Access Control - PCBA Only - 2 Readers - TCP/IP - 30K Users - 20K Event History - 12VDC

Discontinued
SKU ROS-AC-215IP-PCBA NSID 25217
$425.64$510.77On Sale You save $85.13 (17%)

Networked Control Panels are Rosslare's most advanced and secure access solutions. Featuring a 2 reader scalable model that supports online and offline operation, they easily scale up to multiple remote premises. Designed for ease of installation, this product provides high secure professional performance in AC215 Systems. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via 10/100 Ethernet port.

Features:

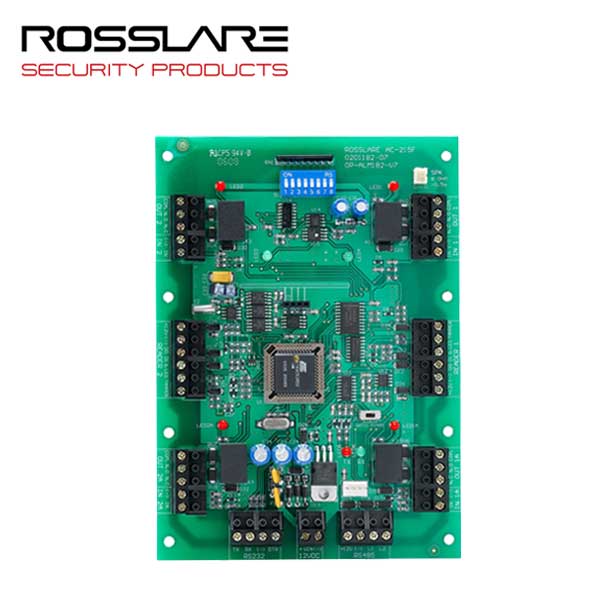

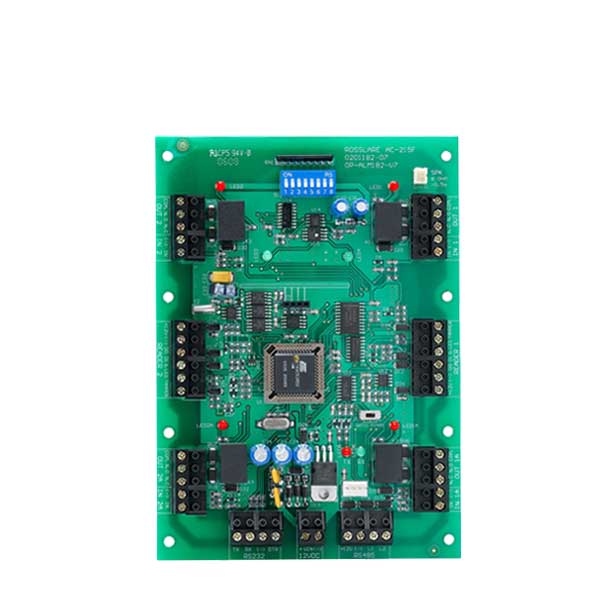

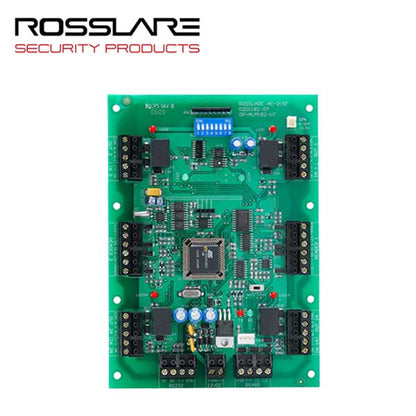

  • Printed Circuit Board Assembly (PCBA) Only for AC215
  • Networked up to 1023 Panels
  • Networked up to 2046 Doors
  • Up to 30,000 users with access rights for every panel
  • Panel supports 1-door (In/Out) and 2-door (In/Out, In/In or Out/Out) configurations


View full details

Details

Specifications:

Type: Printed Circuit Board Assembly
Readers: 2 reader ports
Output voltage: 12 VDC
Max. current: 300 mA
LED control output D0/D1, tamper input
Inputs: 4 supervised, hi-impedance, inputs
Max. voltage: 5 VDC
Outputs: 4 fully programmable 5 A, N.O. and N.C. relay outputs rated 5A @ 30 VDC
Interface: TCP / IP
TCP / IP: Onboard RJ-45 connector
Speed Options: 9600, 19200, 57600, 115200 bps
Serial Ports: 10/100 Ethernet Port
Networking: Rosslare's AxTraxNG™ Server
Users: 30,000 active credentials (Card & PIN)
Event Log: 20,000 Events
Operating Voltage: 12 VDC 1.5 A from PS-14
Max Input Current: Standby: 120 mA. Maximum: 370 mA
Housing: Printed Circuit Board Assembly Only
Standard Approvals: CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b
Warranty: 2-Year Limited
