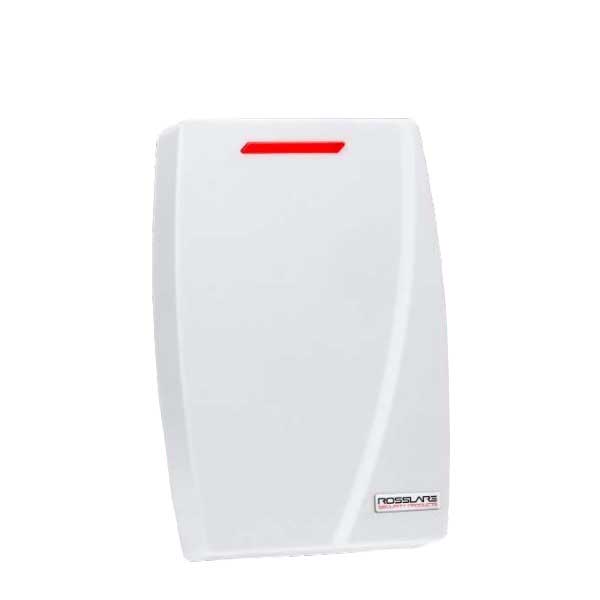

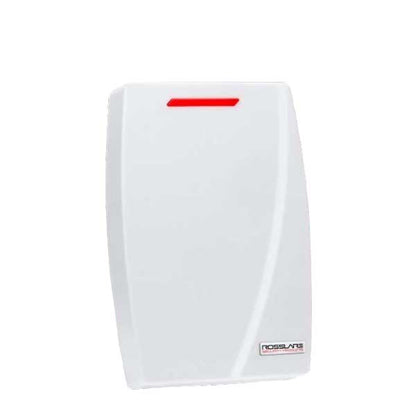

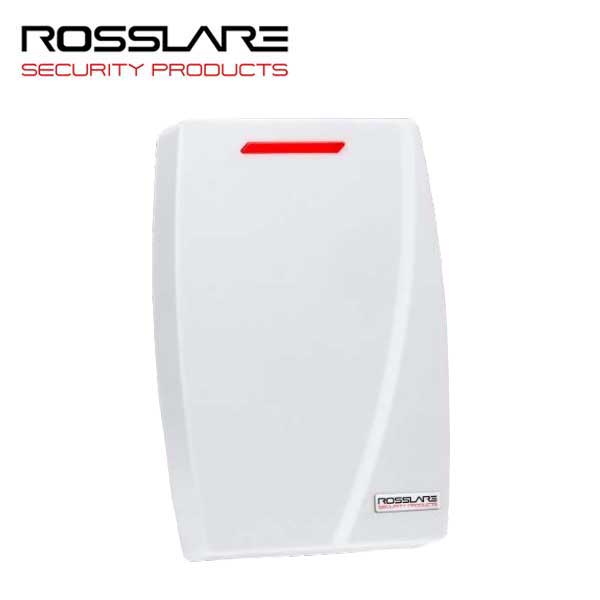

*Discontinued* Rosslare - W6260 - Outdoor Sector Reader - MIFARE Classic EV1 - 5-16 VDC - IP65

*Discontinued* Rosslare - W6260 - Outdoor Sector Reader - MIFARE Classic EV1 - 5-16 VDC - IP65

Discontinued
SKU ROS-AY-W6260 NSID 25333
$133.09$159.71On Sale You save $26.62 (17%)

The Sector Reader is a fully-featured smartcard contactless reader, ideal for highly secured facilities as well as other locations that wish to utilize smartcard based applications such as electronic wallets combined with access control or intrusion, time & attendance applications, and more. The AY-W6260 elegantly designed readers are made of tough Polycarbonate plastic and are fully potted and sealed, making them suitable for outdoor use in all weather conditions.

Features

  • Advanced, secure, multi-application functionality for intelligent installations
  • Easy to deploy in the field with the configuration card (Master card) for secure sector reading of data from the sectors
  • Configurable multi output format, supports Wiegand 26-Bit format and many others
  • Multiple keypad transmission formats (AY-W6360)
  • Compatible with CP-R25 USB Desktop Card Programmer
  • PC software for Master and User Card configuration (AS-B01)
  • Reads MIFARE Classic® EV1 ISO14443 Type A, Standard cards
  • Dedicated LED and buzzer control inputs
  • Optical tamper sensor for case and wall tamper detection
  • Fully compatible with MIFARE Classic EV1 1K and 4K
  • Reads card’s serial number with MIFARE Classic EV1 Ultralight and MIFARE® DESFire®
  • Suitable for outdoor use and weather-resistant

View full details

Details

Specifications:

Operating Voltage Range: 5–16 VDC
Standby Input Current: 110 mA
Maximum Input Current: 165 mA
Tamper Output: Open collector, active low, max sink current 30 mA
Inputs: Programmable LED control / buzzer control Input, N.O, Dry Contact
Indicators: Tri-colored LED indicator
Output Format: Wiegand 26-Bit, Clock & Data, Wiegand 32-Bit, Wiegand 34-Bit, Wiegand 40-Bit
Built-In Proximity Reader:

Operating Frequency: 13.56 MHz
MIFARE Classic EV1 Compatible ISO-14443 A-3
Max. Proximity Read Range: 2.75 in.
Cards and Tags : Rosslare’s LT-UVS-26A-3000 and LT-UVH-26A-7000
EPC GEN2 (ISO18000-6C) tags
BLE-ID soft credentials
Device Certifications:
 IP65
Dimensions: 4.9 x 3.3 x 1.2 in.
Product Warranty: 2-Year Limited Product Warranty
