Sargent - 10G04 - Mechanical Cylindrical Lock - L Rose / L Lever - Storeroom -  LA Keyway - BSP - Black Suede Powder Coat - Grade 1 - UHS Hardware
Sargent - 10G04 - Mechanical Cylindrical Lock - L Rose / L Lever - Storeroom -  LA Keyway - BSP - Black Suede Powder Coat - Grade 1 - UHS Hardware

Sargent - 10G04 - Mechanical Cylindrical Lock - L Rose / L Lever - Storeroom - C Keyway - Black Suede Powder Coat - Grade 1

In Stock
SKU: SRG-SC-28-10G04-LL-BSP
NSID: 31899

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$319.45
$471.60
$319.45

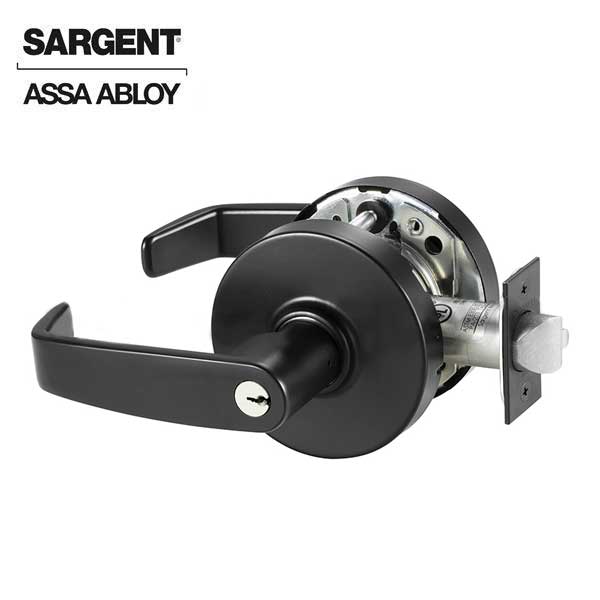

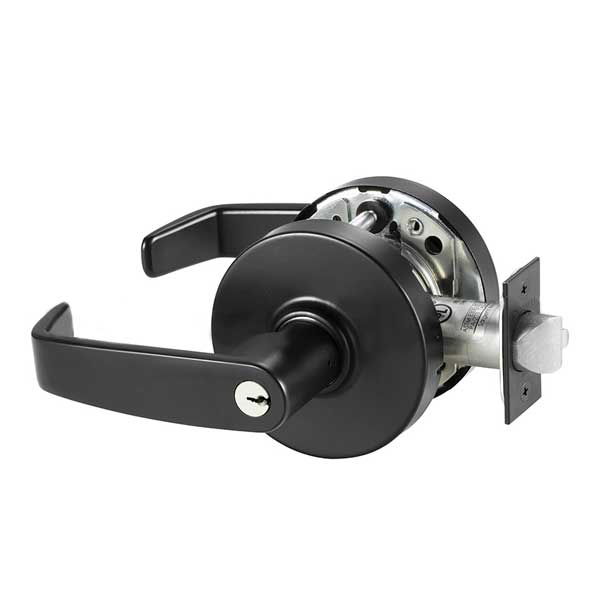

The SRG-SC-28-10G04-LL-BSP is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.

Features

  • ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
  • UL-cUL listed for 3 hour fire doors and windstorm applications
  • Freewheeling trim optional
  • Available in 21 different functions, including classroom security and electromechanical options for access control applications
  • Offered in 12 architectural grade finishes to match any decor
  • Integrates into most existing facility key systems including Sargent security systems (Degree, Signature, KESO, and XC; also accept Schlage® and Medeco LFIC)


Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Construction: Heavy Duty Steel
Lock Function: 04: Storeroom or Closet
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate: Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm)
Strike: Strike #808. Lip length 1-1/4". Lip lengths 1-5/8" to 2-7/8" in 1/4" increments only.
Latch Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option)
Bolt Projection: 1/2"
Stile: 4-1/2"
Rose & Lever: Standard L Rose and L Lever
Cylinder:
Brass, 6 pin, Schlage® C keyway
Keyway: 6 Pin
Finish: BSP - Black Suede Powder Coat
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 7-Year Manufacturer Warranty
