Sargent - 10G04 - Mechanical Cylindrical Lock - L Rose / L Lever - Storeroom - SFIC - BSP - Black Suede Powder Coat - Grade 1

Available to Order
SKU: SRG-28-70-10G04-LL-BSP
NSID: 24584

Please Note: This product has a lead time

$323.00
$387.60
$323.00

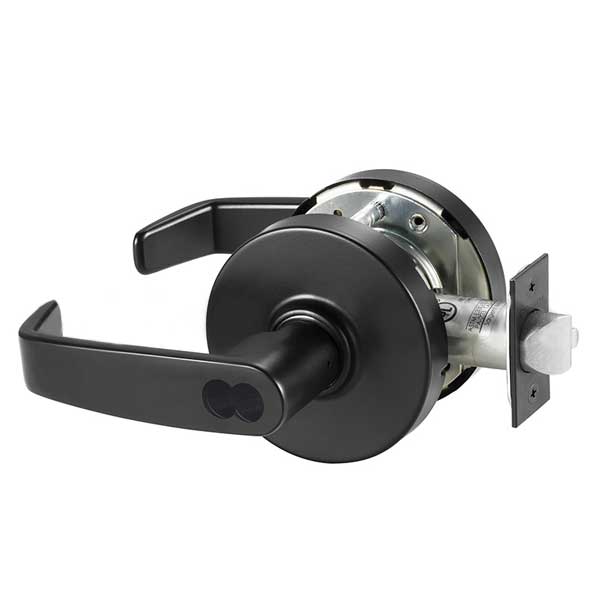

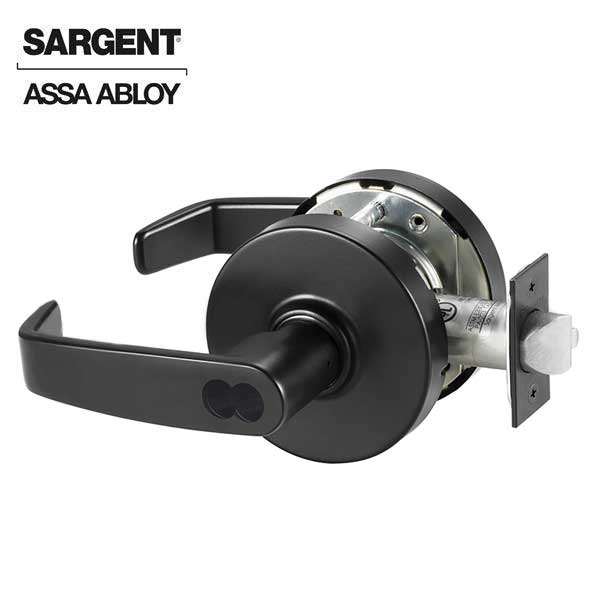

The 28-70-10G04-LL-BSP is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.

Features

  • ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
  • UL-cUL listed for 3 hour fire doors and windstorm applications
  • Freewheeling trim optional
  • Available in 21 different functions, including classroom security and electromechanical options for access control applications
  • Offered in 12 architectural grade finishes to match any decor
  • Integrates into most existing facility key systems including Sargent security systems (Degree, Signature, KESO, and XC; also accept Schlage® and Medeco )
  • Deadlocking latch
  • Latch by lever inside or key outside
  • Outside lever rigid at all times
  • ANSI F86

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Construction: Heavy Duty Steel
Lock Function: 10G04 : Storeroom or Closet
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate: Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm)
Strike: 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike (28- option)
Latch Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option)
Bolt Projection: 1/2"
Stile: 4-1/2"
Rose & Lever: Standard L Rose and L Lever
Cylinder:
Brass, 6 pin, LA keyway standard
Keyway: 6 Pin SFIC (not included)
Finish: BSP - Black Suede Powder Coat
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 7-Year Manufacturer Warranty
