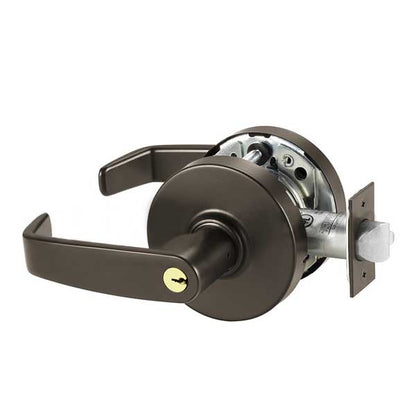

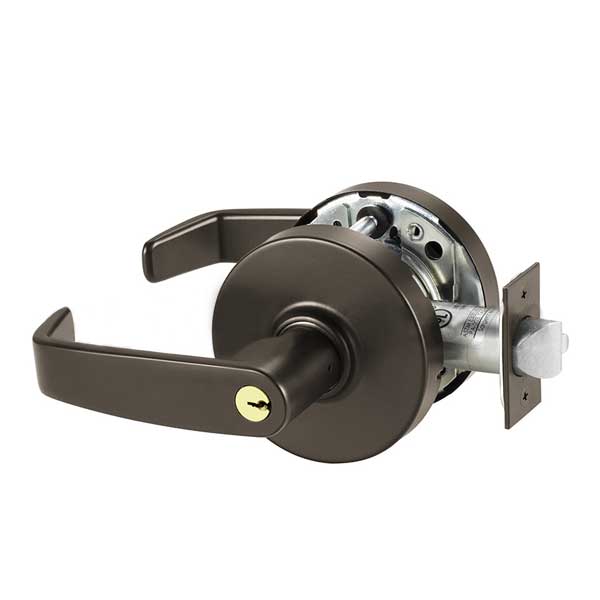

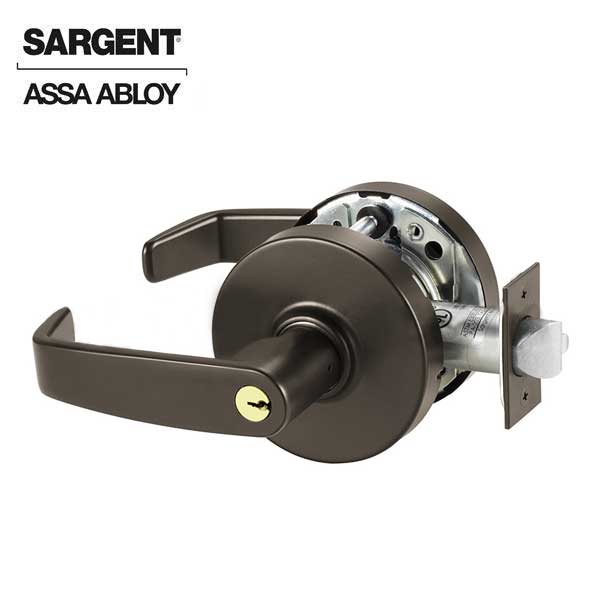

Sargent - 10G05 - Mechanical Cylindrical Lock - L Rose / L Lever - Entrance/Office - LA Keyway - 10BE - Dark Oxidized Satin Bronze - Grade 1
Sargent - 10G05 - Mechanical Cylindrical Lock - L Rose / L Lever - Entrance/Office -  LA Keyway - 10BE - Dark Oxidized Satin Bronze - Grade 1
Sargent - 10G05 - Mechanical Cylindrical Lock - L Rose / L Lever - Entrance/Office -  LA Keyway - 10BE - Dark Oxidized Satin Bronze - Grade 1
Sargent - 10G05 - Mechanical Cylindrical Lock - L Rose / L Lever - Entrance/Office -  LA Keyway - 10BE - Dark Oxidized Satin Bronze - Grade 1
Sargent - 10G05 - Mechanical Cylindrical Lock - L Rose / L Lever - Entrance/Office -  LA Keyway - 10BE - Dark Oxidized Satin Bronze - Grade 1

Sargent - 10G05 - Mechanical Cylindrical Lock - L Rose / L Lever - Entrance/Office - LA Keyway - 10BE - Dark Oxidized Satin Bronze - Grade 1

$330.00 $396.00
Availability: Available
Wishlist
  • Product SKU: SRG-28-10G05-LL-10BE
  • NSID: 24604
  • SRG-28-10G05-LL-10BE

    The SRG-28-10G05-LL-10BE is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.

    Features

    • ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
    • UL-cUL listed for 3 hour fire doors and windstorm applications
    • Freewheeling trim optional
    • Available in 21 different functions, including classroom security and electromechanical options for access control applications
    • Offered in 12 architectural grade finishes to match any decor
    • Integrates into most existing facility key systems including Sargent security systems (Degree, Signature, KESO, and XC; also accept Schlage® and Medeco LFIC)



    $330.00
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications

Construction: Heavy Duty Steel
Lock Function:  05: Office or Entry
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate: Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm)
Strike: 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike (28- option)
Latch  Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option)
Bolt Projection: 1/2"
Stile: 4-1/2"
Rose & Lever: Standard L Rose and L Lever
Cylinder:
Brass, 6 pin, LA keyway standard
Keyway: 6 Pin
Finish: 10BE - Dark Oxidized Satin Bronze Finish
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 7-Year Manufacturer Warranty


Downloads

SRG-28-10G05-LL-10BE

The SRG-28-10G05-LL-10BE is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.

Features

  • ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
  • UL-cUL listed for 3 hour fire doors and windstorm applications
  • Freewheeling trim optional
  • Available in 21 different functions, including classroom security and electromechanical options for access control applications
  • Offered in 12 architectural grade finishes to match any decor
  • Integrates into most existing facility key systems including Sargent security systems (Degree, Signature, KESO, and XC; also accept Schlage® and Medeco LFIC)


Specifications

Construction: Heavy Duty Steel
Lock Function:  05: Office or Entry
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate: Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm)
Strike: 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike (28- option)
Latch  Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option)
Bolt Projection: 1/2"
Stile: 4-1/2"
Rose & Lever: Standard L Rose and L Lever
Cylinder:
Brass, 6 pin, LA keyway standard
Keyway: 6 Pin
Finish: 10BE - Dark Oxidized Satin Bronze Finish
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 7-Year Manufacturer Warranty
