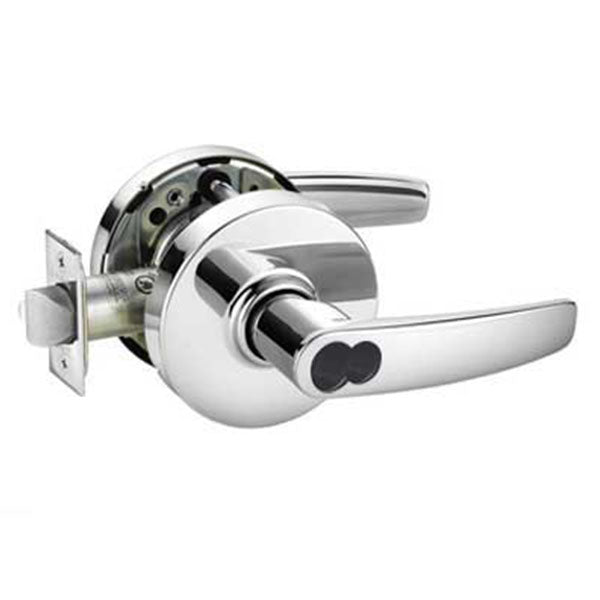

*Discontinued* Sargent - 10G05 - Mechanical Cylindrical Lock - L Rose / B Lever - Entrance Office - LFIC Removable Core - 26D - Satin Chrome - Grade 1
*Discontinued* Sargent - 10G05 - Mechanical Cylindrical Lock - L Rose / B Lever - Entrance Office - LFIC Removable Core - 26D - Satin Chrome - Grade 1
The is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.
Features
- ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
- UL-cUL listed for 3 hour fire doors and windstorm applications
- Freewheeling trim optional
- Available in 21 different functions, including classroom security and electromechanical options for access control applications
- Offered in 12 architectural grade finishes to match any decor
- Integrates into most existing facility key systems including Sargent security systems (Degree, Signature, KESO, and XC; also accept Schlage® and Medeco LFIC)
Details
Specifications
| Construction: | Heavy Duty Steel |
| Lock Function: | 05: Office or Entry |
| Door Thickness: | 1-3/4" (44mm) |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm) |
| Strike: | 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike (28- option) |
| Latch | Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option) |
| Bolt Projection: | 1/2" |
| Stile: | 4-1/2" |
| Rose & Lever: | Standard L Rose and B Lever |
| Cylinder: |
Lock to accept LFIC (removable core) and provided with keyed construction core; LFIC permanent core ordered separately |
| Keyway: | 6 Pin |
| Finish: | 26D - Satin Chrome |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 7-Year Manufacturer Warranty |
