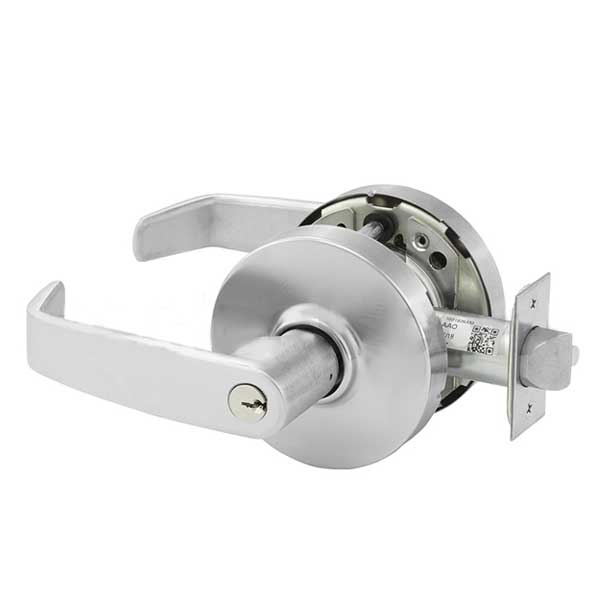

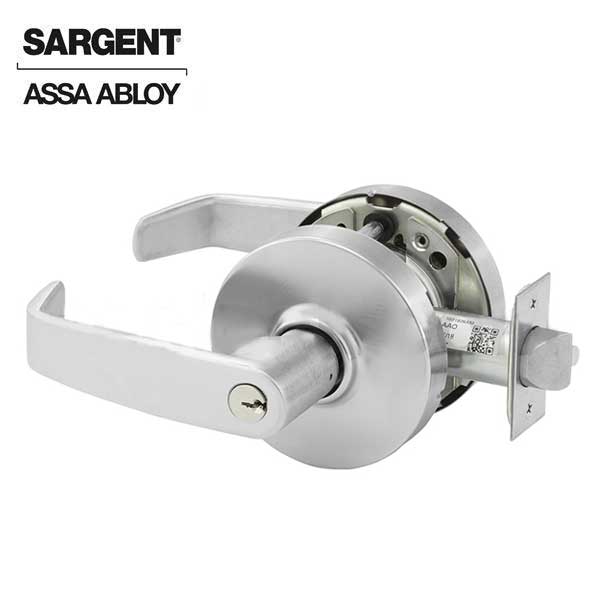

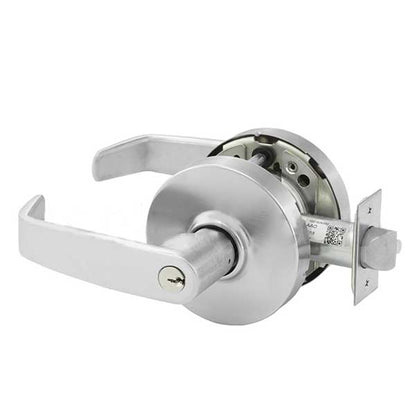

Sargent - 10G05 - Mechanical Cylindrical Lock - L Rose / L Lever - Entrance/Office - LA Keyway - 0 Bitted - Fire Rated - Satin Chrome - Grade 1
Sargent - 10G05 - Mechanical Cylindrical Lock - L Rose / L Lever - Entrance/Office - LA Keyway - 0 Bitted - Fire Rated - Satin Chrome - Grade 1
$530.36$636.43On Sale
You save $106.07 (17%)
Quantity
Couldn't load pickup availability
The is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.
Features
- Fits a variety of door preparations with adaptable through-bolt positioning
- User friendly packaging
- User friendly instruction sheets
- ANSI/BHMA Grade 1 certified for cycle and strength requirements.
- Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
- UL-cUL listed for 3 hour fire doors and windstorm applications
- Integrates into most existing facility key systems
View full details
Details
Specifications
| Construction: | Heavy Duty Steel |
| Lock Function: | 05: Office or Entry |
| Door Thickness: | 1-3/4" (44mm) |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm) |
| Strike: | 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike |
| Latch | Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option) |
| Bolt Projection: | 1/2" |
| Stile: | 4-1/2" |
| Rose & Lever: | L Rose and L Lever |
| Cylinder: |
0-Bitted |
| Keyway: | LA Keyway |
| Fire Rated: | 3-Hours |
| Finish: | 26D - Satin Chrome Plated |
| Certifications: | ANSI/BHMA A156.2 UL/cUL Listed, ADA, UL 10C |
| Warranty: | 7-Year Manufacturer Warranty |
