Sargent - 10G37 - Mechanical Cylindrical Lock - L Rose / L Lever - Classroom - LA Keyway - BSP - Black Suede Powder Coat - Grade 1

Sargent - 10G37 - Mechanical Cylindrical Lock - L Rose / L Lever - Classroom - LA Keyway - BSP - Black Suede Powder Coat - Grade 1

Discontinued
SKU SRG-28-10G37-LL-BSP NSID 24608
$330.00$396.00On Sale You save $66.00 (17%)

SRG-28-10G37-LL-26D

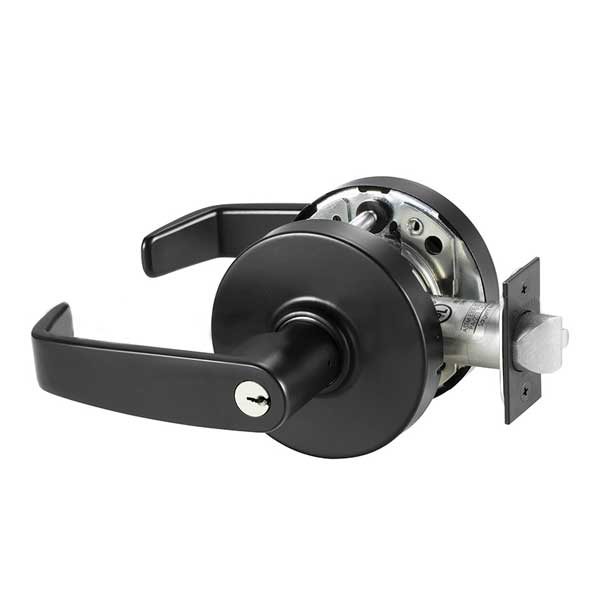

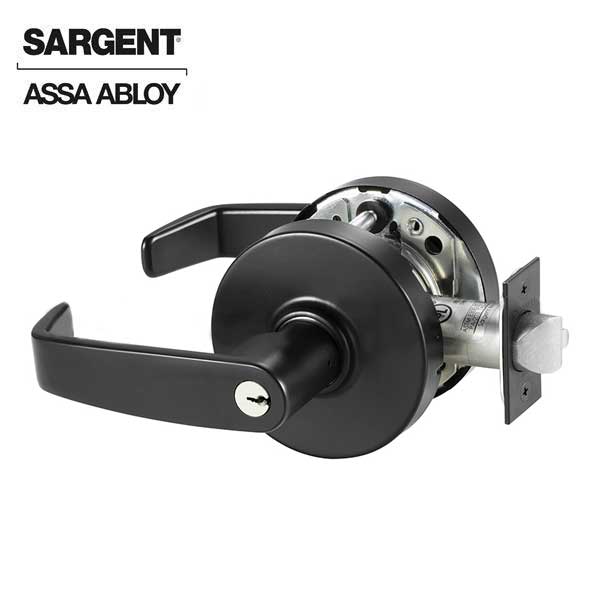

The SRG-28-10G37-LL-26D is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.

Features

  • Key outside retracts latchbolt, also locks and unlocks outside trim
  • Trim inside always retracts latchbolt
  • Auxiliary deadlatch
  • Multi-function 8200/R8200/7800 lockbody
  • ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
  • UL-cUL listed for 3 hour fire doors and windstorm applications

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications

Construction: Heavy Duty Steel
Lock Function: 37 : Classroom
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate: Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm)
Strike: 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike (28- option)
Latch  Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option)
Bolt Projection: 1/2"
Stile: 4-1/2"
Rose & Lever: Standard L Rose and L Lever
Cylinder:
 Brass, 6 pin, LA keyway standard
Keyway: 6 Pin
Finish: BSP - Black Suede Powder Coat
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 7-Year Manufacturer Warranty
