Sargent - 10G37 - Mechanical Cylindrical Lock - L Rose / B Lever - Classroom - LFIC - 26D - Satin Chrome Plated - Non Handed - Grade 1

Available to Order
SKU: SRG-64-28-10G37-LB-26D
NSID: 37973

Please Note: This product has a lead time

$344.40
$430.50
$344.40

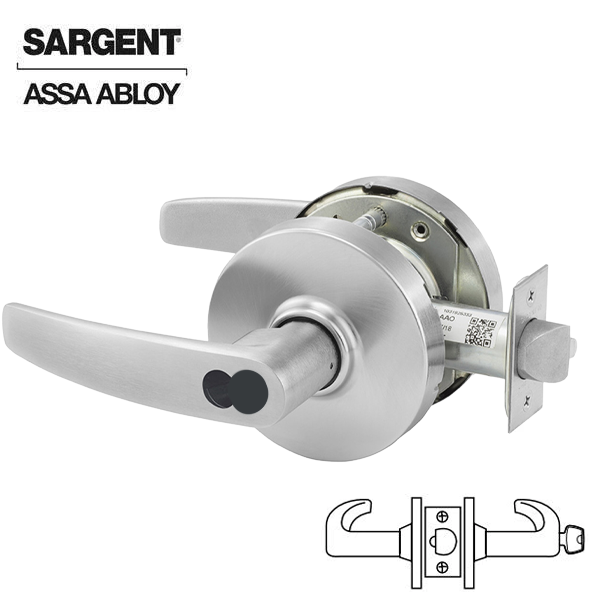

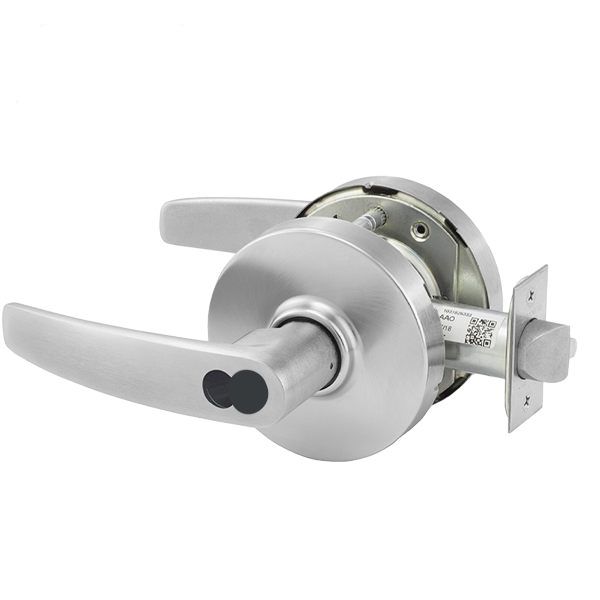

The Sargent 64-28-10G37-LB-26D is a heavy duty classroom cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.
Latch by either lever unless outside lever is locked by key. Lock to accept LFIC (removable core) and provided with keyed construction core; LFIC permanent core to be ordered separately

Features

  • ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
  • UL-cUL listed for 3 hour fire doors and windstorm applications
  • Freewheeling trim optional
  • Available in 21 different functions, including classroom security and electromechanical options for access control applications
  • Offered in 12 architectural grade finishes to match any decor
  • Integrates into most existing facility key systems including Sargent security systems (Degree, Signature, KESO, and XC; also accept Schlage® and Medeco )
  • Deadlocking latch
  • Latch by either lever unless outside lever is locked by key
  • Key in outside lever locks or unlocks outside lever and retracts latch
  • Inside lever always operative
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Construction: Heavy Duty Steel
Lock Function: 10G37 : Classroom
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Cylindrical Housing Steel, zinc dichromate finish
Faceplate: Wrought brass, bronze and stainless steel — 2-1/4" (57mm) x 1-1/8" (29mm)
Strike: 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike (28- option)
Latch Wrought brass, bronze and stainless steel - 808 curved lip ANSI strike
Handing Non Handed
Latchbolt
Stainless steel 1/2" (13mm) throw
Minimum Stile: 4-1/2"
Rose & Lever: Standard L Rose and B Lever
Cylinder:
Brass, 6 pin, LA keyway, 1 bitted standard
Keyway: LFIC (not included)
Finish: 26D - Satin Chrome Plated
Certifications: UL / cUL Listed for 3-Hour Doors, ANSI/BHMA A156 .2 Grade 1
Warranty: 7-Year Limited Manufacturer Warranty
