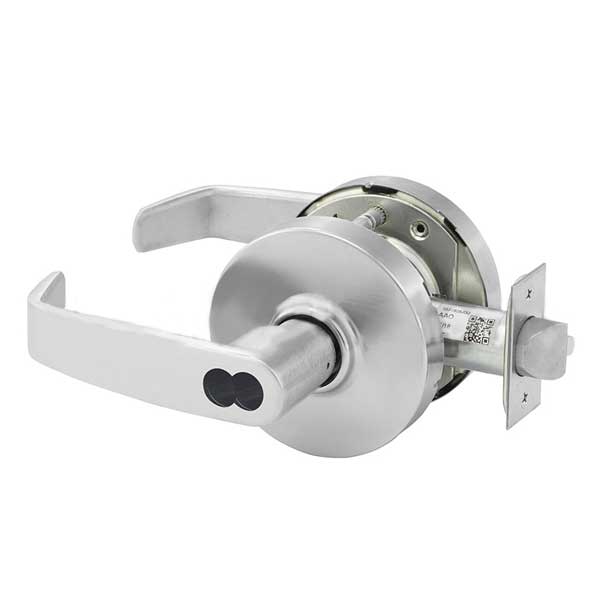

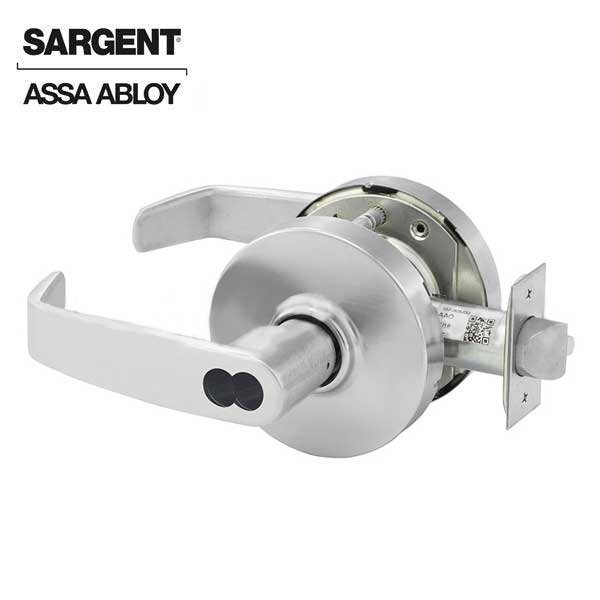

Sargent - 10G37 - Mechanical Cylindrical Lock - L Rose / L Lever - Classroom - SFIC - 26D - Satin Chrome Plated - Grade 1
Sargent - 10G37 - Mechanical Cylindrical Lock - L Rose / L Lever - Classroom - SFIC - 26D - Satin Chrome Plated - Grade 1
Sargent - 10G37 - Mechanical Cylindrical Lock - L Rose / L Lever - Classroom - SFIC - 26D - Satin Chrome Plated - Grade 1
Sargent - 10G37 - Mechanical Cylindrical Lock - L Rose / L Lever - Classroom - SFIC - 26D - Satin Chrome Plated - Grade 1
Sargent - 10G37 - Mechanical Cylindrical Lock - L Rose / L Lever - Classroom - SFIC - 26D - Satin Chrome Plated - Grade 1

Sargent - 10G37 - Mechanical Cylindrical Lock - L Rose / L Lever - Classroom - SFIC - 26D - Satin Chrome Plated - Grade 1

$323.00 $387.60
Available: In Stock
Wishlist
  • Product SKU: SRG-28-70-10G37-LL-26D
  • SRG-28-70-10G37-LL-26D

    The 28-70-10G37-LL-26D is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.

    Features

    • ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
    • UL-cUL listed for 3 hour fire doors and windstorm applications
    • Freewheeling trim optional
    • Available in 21 different functions, including classroom security and electromechanical options for access control applications
    • Offered in 12 architectural grade finishes to match any decor
    • Integrates into most existing facility key systems including Sargent security systems (Degree, Signature, KESO, and XC; also accept Schlage® and Medeco )
    • Deadlocking latch
    • Latch by either lever unless outside lever is locked by key
    • Key in outside lever locks or unlocks outside lever and retracts latch
    • Inside lever always operative
    • ANSI F84


    $323.00

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specifications

Construction: Heavy Duty Steel
Lock Function: 10G37 : Classroom
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate: Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm)
Strike: 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike (28- option)
Latch  Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option)
Bolt Projection: 1/2"
Stile: 4-1/2"
Rose & Lever: Standard L Rose and L Lever
Cylinder:
Brass, 6 pin, LA keyway standard
Keyway: 6 Pin SFIC (not included)
Finish: 26D - Satin Chrome Plated
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 7-Year Manufacturer Warranty
