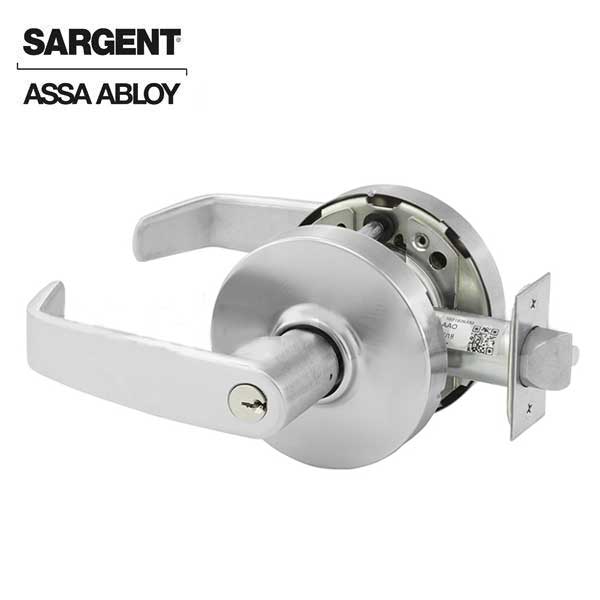

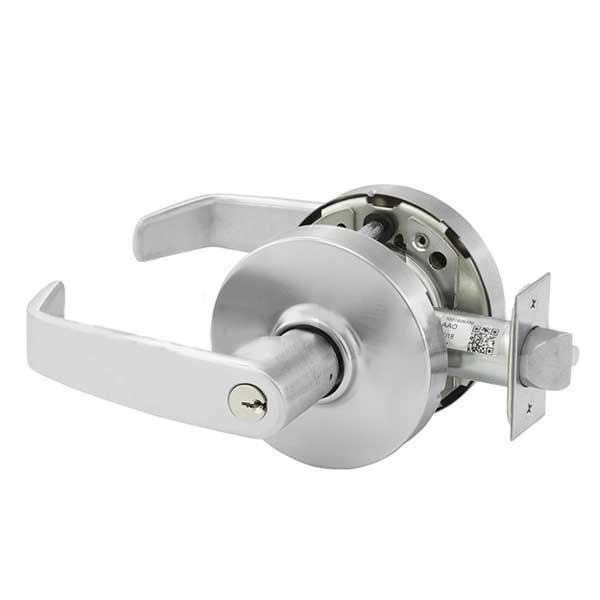

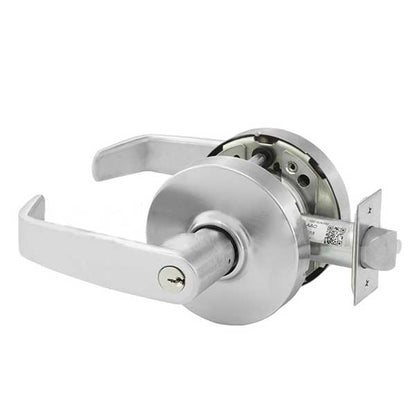

Sargent - 10G54 - Mechanical Cylindrical Lock - L Rose / L Lever - Corridor - LA Keyway - 26D - Satin Chrome Plated - Grade 1
Sargent - 10G54 - Mechanical Cylindrical Lock - L Rose / L Lever - Corridor - LA Keyway - 26D - Satin Chrome Plated - Grade 1
Sargent - 10G54 - Mechanical Cylindrical Lock - L Rose / L Lever - Corridor - LA Keyway - 26D - Satin Chrome Plated - Grade 1
Sargent - 10G54 - Mechanical Cylindrical Lock - L Rose / L Lever - Corridor - LA Keyway - 26D - Satin Chrome Plated - Grade 1
Sargent - 10G54 - Mechanical Cylindrical Lock - L Rose / L Lever - Corridor - LA Keyway - 26D - Satin Chrome Plated - Grade 1

Sargent - 10G54 - Mechanical Cylindrical Lock - L Rose / L Lever - Corridor - LA Keyway - 26D - Satin Chrome Plated - Grade 1

$350.00 $420.00
Availability: In Stock
Wishlist
  • Product SKU: SRG-28-10G54-LL-26D
  • NSID: 24609
  • SRG-28-10G54-LL-26D

    The SRG-28-10G54-LL-26D is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.

    Features

    • Key outside retracts latchbolt, also locks and unlocks outside trim
    • Trim inside always retracts latchbolt
    • Auxiliary deadlatch
    • Multi-function 8200/R8200/7800 lockbody
    • ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
    • UL-cUL listed for 3 hour fire doors and windstorm applications


    $350.00
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications

Construction: Heavy Duty Steel
Lock Function: 54 : Corridor Dormitory
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate: Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm)
Strike: 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike (28- option)
Latch  Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option)
Bolt Projection: 1/2"
Stile: 4-1/2"
Rose & Lever: Standard L Rose and L Lever
Cylinder:
Brass, 6 pin, LA keyway standard
Keyway: 6 Pin
Finish: 26D - Satin Chrome Plated
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 7-Year Manufacturer Warranty



Downloads

SRG-28-10G54-LL-26D

The SRG-28-10G54-LL-26D is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.

Features

  • Key outside retracts latchbolt, also locks and unlocks outside trim
  • Trim inside always retracts latchbolt
  • Auxiliary deadlatch
  • Multi-function 8200/R8200/7800 lockbody
  • ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
  • UL-cUL listed for 3 hour fire doors and windstorm applications

Specifications

Construction: Heavy Duty Steel
Lock Function: 54 : Corridor Dormitory
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate: Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm)
Strike: 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike (28- option)
Latch  Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option)
Bolt Projection: 1/2"
Stile: 4-1/2"
Rose & Lever: Standard L Rose and L Lever
Cylinder:
Brass, 6 pin, LA keyway standard
Keyway: 6 Pin
Finish: 26D - Satin Chrome Plated
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 7-Year Manufacturer Warranty
