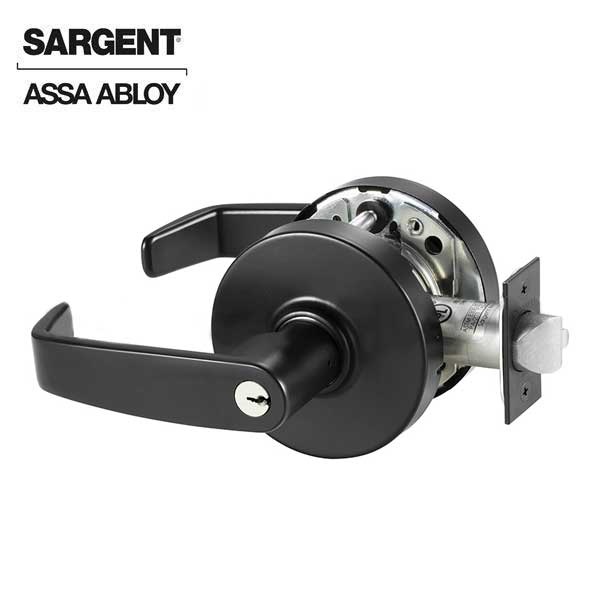

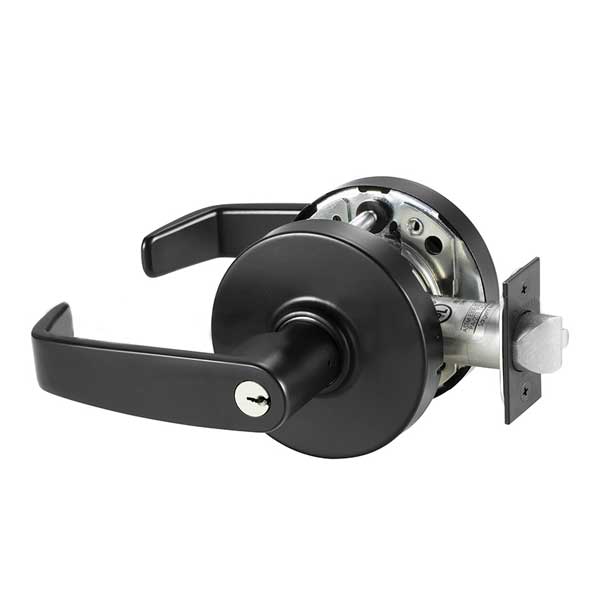

Sargent - 10G54 - Mechanical Cylindrical Lock - L Rose / L Lever - Corridor - LA Keyway - BSP - Black Suede Powder Coat - Grade 1
Available to Order
SKU:
SRG-28-10G54-LL-BSP
NSID:
24611
- $350.00
-
$420.00 - $350.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The SRG-28-10G54-LL-BSP is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.
Features
- Key outside retracts latchbolt, also locks and unlocks outside trim
- Trim inside always retracts latchbolt
- Auxiliary deadlatch
- Multi-function 8200/R8200/7800 lockbody
- ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
- UL-cUL listed for 3 hour fire doors and windstorm applications
Specifications
| Construction: | Heavy Duty Steel |
| Lock Function: | 54 : Corridor Dormitory |
| Door Thickness: | 1-3/4" (44mm) |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm) |
| Strike: | 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike (28- option) |
| Latch | Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option) |
| Bolt Projection: | 1/2" |
| Stile: | 4-1/2" |
| Rose & Lever: | Standard L Rose and L Lever |
| Cylinder: |
Brass, 6 pin, LA keyway standard |
| Keyway: | 6 Pin |
| Finish: | BSP - Black Suede Powder Coat |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 7-Year Manufacturer Warranty |
