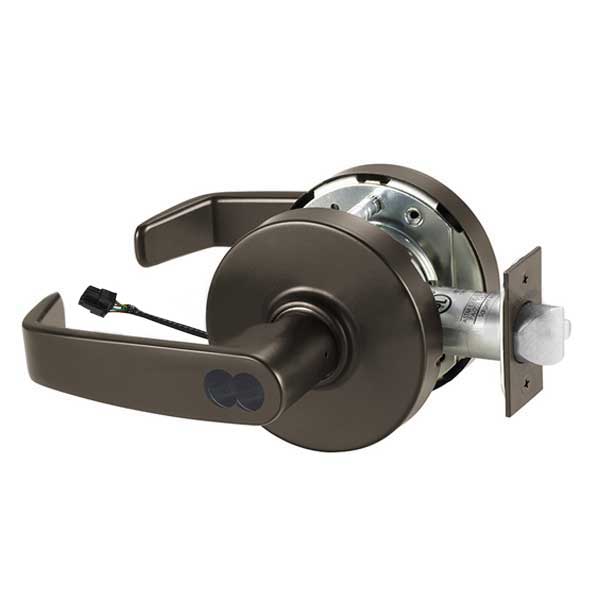

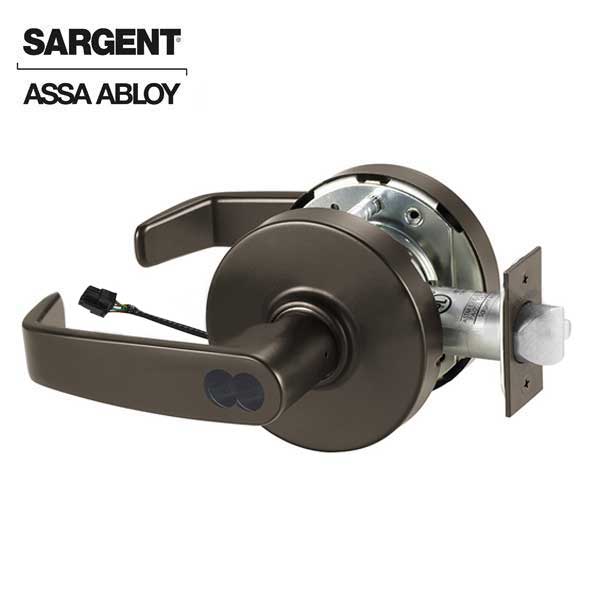

Sargent - 10G71 - Electromechanical Cylindrical Lock - L Rose / L Lever - Fail Secure - SFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1
Sargent - 10G71 - Electromechanical Cylindrical Lock - L Rose / L Lever - Fail Secure - SFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1
Sargent - 10G71 - Electromechanical Cylindrical Lock - L Rose / L Lever - Fail Secure - SFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1
Sargent - 10G71 - Electromechanical Cylindrical Lock - L Rose / L Lever - Fail Secure - SFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1
Sargent - 10G71 - Electromechanical Cylindrical Lock - L Rose / L Lever - Fail Secure - SFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1

Sargent - 10G71 - Electromechanical Cylindrical Lock - L Rose / L Lever - Fail Secure - SFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1

$460.00 $534.00
Availability: Available
Wishlist
  • Product SKU: SRG-28-70-10G71-LL-24V-10BE
  • NSID: 24598
  • SRG-28-70-10G71-LL-24V-10BE

    The SRG-28-70-10G71-LL-24V-10BE is a heavy duty electrified cylindrical key-in-lever handle lockset exceeds by nine times the Grade 1 standards. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.


    Features

    • 10G71: Power off, locks outside lever
    • Deadlocking latch
    • Key retracts latch
    • Inside lever always allows egress
    • Voltage requirements: 24VDC Regulated; always specify voltage
      250mA at 24VDC
      Provided with ElectroLynx® 8-Pin Connector
    • 2 keys included

    $460.00
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs





Specifications

Construction: Heavy Duty Steel
Lock Function: 71 : Electromechanical Fail Secure
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate: Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm)
Strike: 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike (28- option)
Latch  Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option)
Bolt Projection: 1/2"
Stile: 4-1/2"
Power Hard Wired
Operating Voltage 24VDC
Amp Draw 250mA
Rose & Lever: Standard L Rose and L Lever
Cylinder:
Brass, 6 pin, LA keyway standard (not included)
Finish: 10BE - Dark Oxidized Satin Bronze
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 7-Year Manufacturer Warranty


Downloads

SRG-28-70-10G71-LL-24V-10BE

The SRG-28-70-10G71-LL-24V-10BE is a heavy duty electrified cylindrical key-in-lever handle lockset exceeds by nine times the Grade 1 standards. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.


Features

  • 10G71: Power off, locks outside lever
  • Deadlocking latch
  • Key retracts latch
  • Inside lever always allows egress
  • Voltage requirements: 24VDC Regulated; always specify voltage
    250mA at 24VDC
    Provided with ElectroLynx® 8-Pin Connector
  • 2 keys included





Specifications

Construction: Heavy Duty Steel
Lock Function: 71 : Electromechanical Fail Secure
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate: Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm)
Strike: 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike (28- option)
Latch  Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option)
Bolt Projection: 1/2"
Stile: 4-1/2"
Power Hard Wired
Operating Voltage 24VDC
Amp Draw 250mA
Rose & Lever: Standard L Rose and L Lever
Cylinder:
Brass, 6 pin, LA keyway standard (not included)
Finish: 10BE - Dark Oxidized Satin Bronze
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 7-Year Manufacturer Warranty
