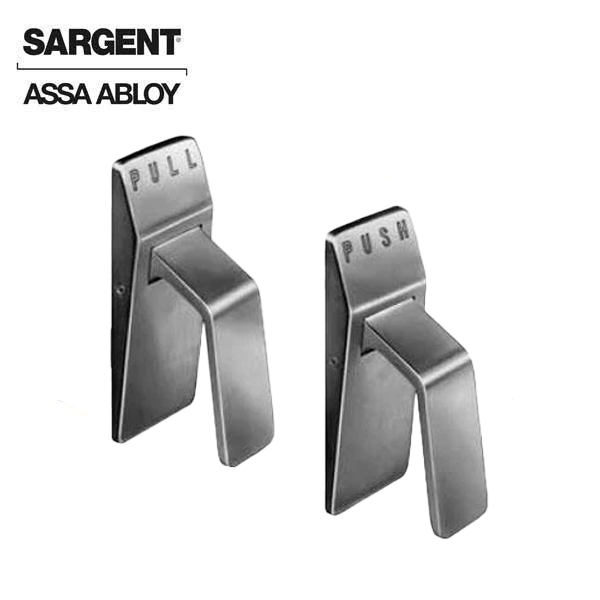

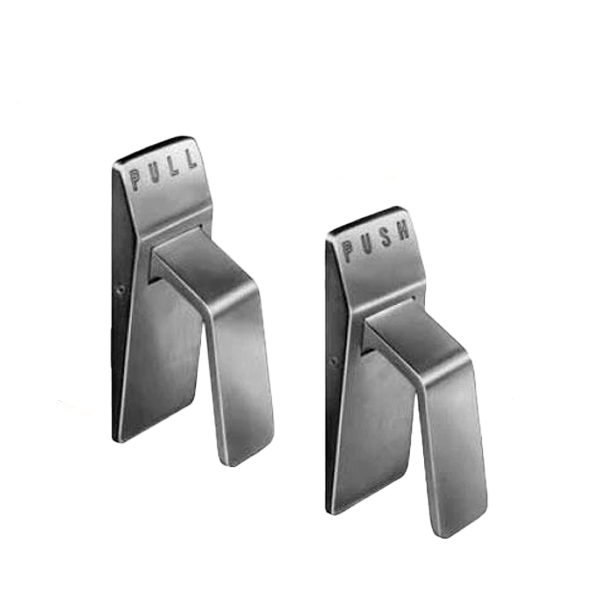

Sargent - 114P - Push/Pull Trim - Hospital Latch - Optional Handing - 5" Backset - UL Listed - ANSI Strike - US26D - Satin Chrome - Grade 1
In Stock
SKU:
SRG-28-114P-LH-26D
NSID:
37969
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $399.12
-
$475.00 - $399.12
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
SRG-28-114P-(LH/RH)-26D
Designed for convenience and functionality, the 114 Hospital Latches open with a gentle pull or slight push, making it ideal for hands-free operation in settings like hospitals and nursing care centers. Available with “PUSH” and “PULL” stamped into the top of the escutcheon and feature slim tapered paddles for a clean, aesthetic look.
Features:
- Easy installation with multiple mounting options
- 114 - Paddles mounted in down position only
- Can be readily integrated into sophisticated access control systems
- ANSI/BHMA A 156.13 Grade 1
- UL listed
- Goes beyond industry standards for operating temperature, shock and fire hazard
Specifications:
| For Doors | 1-3/4" (44mm) to 2-1/4" (57mm) |
| Backset | 5" (127mm) standard |
| Strike | Unit shuts down when voltage exceeds 28VDC |
| Bolt | Brass, 1/2" (13mm) throw |
| Hand | Left Handed, Right Handed |
| Escutcheons | Cold drawn; 2-1/2" (64mm) x 6-7/8" (175mm) |
| UL Listed | UL Listed for use on fire doors. See Underwriters Laboratories Building Materials List |
| Backsets | 5" |
| Strike | 4-7/8" (124mm) ANSI curved lip strike # 808 |
