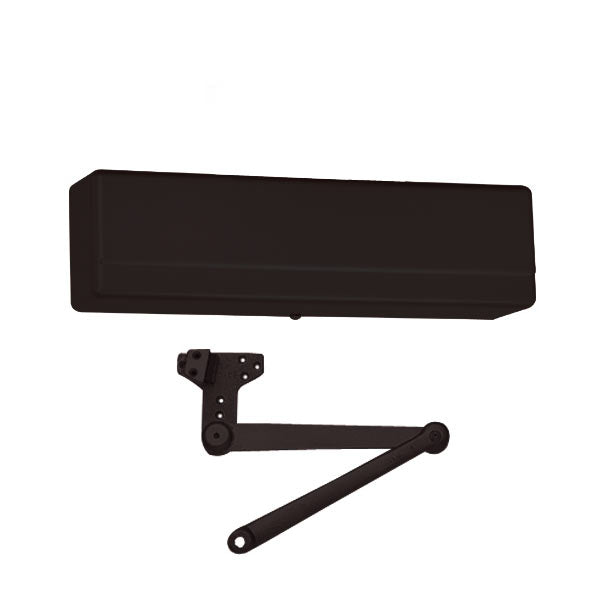

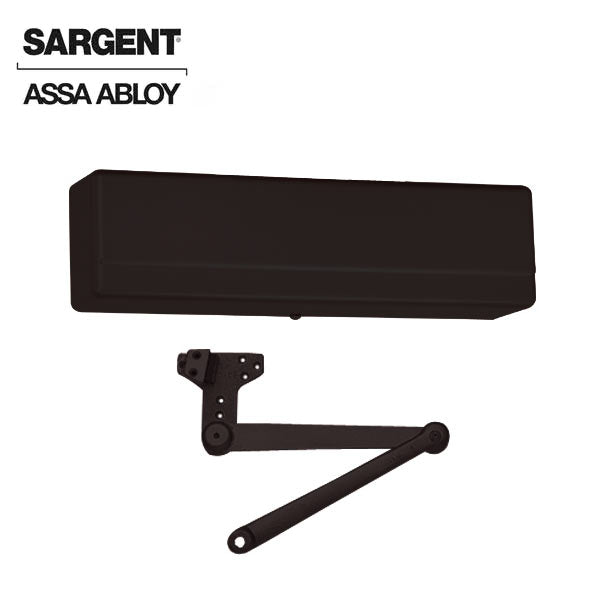

Sargent - 1431 - Powerglide Door Closer w/ CPS - Heavy Duty Parallel Arm w/ Compression Stop - BSP - Black Suede Powder Coat - Grade 1 - UHS Hardware
Sargent - 1431 - Powerglide Door Closer w/ CPS - Heavy Duty Parallel Arm w/ Compression Stop - BSP - Black Suede Powder Coat - Grade 1 - UHS Hardware

Sargent - 1431 - Powerglide Door Closer - Back Check Function - Heavy Duty Parallel Arm w/ Compression Stop - Adjustable Size 1-6 - Plastic Cover - Black Suede - Fire Rated - Grade 1

Available to Order
SKU: SRG-1431-CPS-BSP
NSID: 24629

Please Note: This product has a lead time

$330.00
$396.00
$330.00

Featuring heavy-duty construction for superior strength and wear resistance, the Sargent 1431 Series Powerglide Door Closer is ideally suited for highly trafficked environments like schools, healthcare facilities, and office and commercial buildings. With a full complement of arm types and front-facing valves, the 1431 series can be easily installed and maintained—for interior and exterior applications.

Features

  • Exceeds 25 million cycles
  • Non-handed
  • Black Suede Powder Coat finish
  • Full rack and pinion construction
  • Self sticking templates supplied for most applications
  • 1-1/2" diameter piston for superior door control
  • Closing speed, latching speed and backcheck shall be controlled by key operated valves
  • CPS - Heavy duty parallel arm with compression stop
  • High impact non-corrosive plastic covers with two machine screws standard
  • Adjustable spring power allows 1431 closers a size range of 1 through 6
  • UL/cUL listed for use on fire rated doors


Call 1-800-878-6604 for Bulk / Dealer Pricing!

    Specifications

    Construction Heavy Duty Aluminum Alloy
    Function Door Closer w/ Compression Stop
    Interior or Exterior Universal
    Handing Non-Handed
    Finish BSP - Black Suede Powder Coat
    Door Width 24 - 48"
    Diameter Piston 1-1/2"
    Projection from Wall 2-1/4"
    Application
    Parallel
    Arm Type CPS - Heavy Duty Parallel Arm with Compression Stop
    Fasteners Machine Screws and self tapping screws provided for closer and arm
    Max. Door Opening 105°
    ADA Meets ADA requirements in all applications, except Push Side Track application
    Fire Rating UL 10C listed for positive pressure fire test
    Certifications Certified ANSI/BHMA A156.4 Grade 1
    Warranty 30-Year Limited Manufacturer Warranty


    Downloads
    Product Catalog
    Product Template
    Installation Guide

    Compatible With
