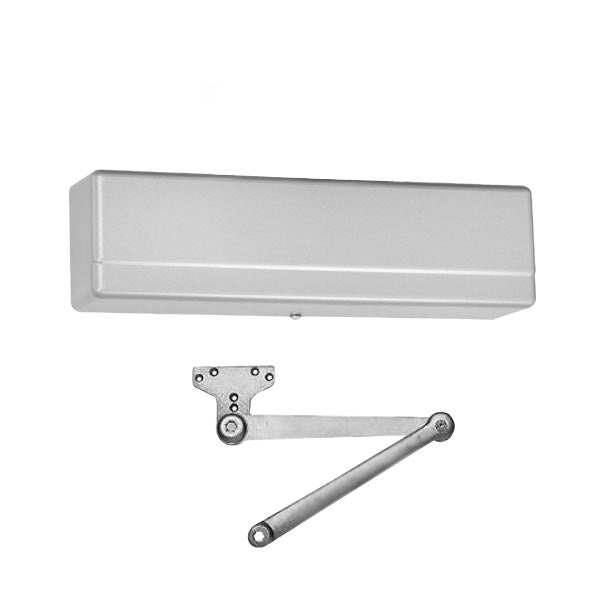

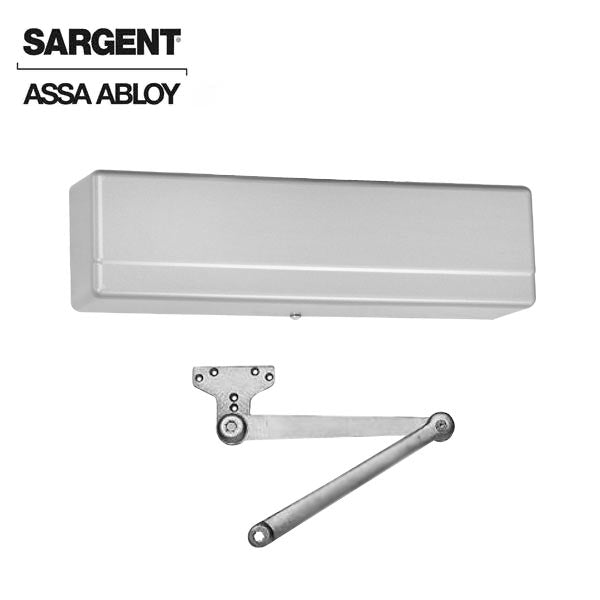

Sargent - 1431 - Powerglide Door Closer - Back Check Function - Heavy Duty Parallel Arm - Adjustable Size 1-6 - Plastic Cover - Aluminum - Fire Rated - Grade 1
Available to Order
SKU:
SRG-1431-P10-EN
NSID:
24630
- $260.00
-
$312.00 - $260.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Featuring heavy-duty construction for superior strength and wear resistance, the Sargent 1431 Series Powerglide Door Closer is ideally suited for highly trafficked environments like schools, healthcare facilities, and office and commercial buildings. With a full complement of arm types and front-facing valves, the 1431 series can be easily installed and maintained—for interior and exterior applications.
Features
- Exceeds 25 million cycles
- Universal Handing
- Sprayed Aluminum Enamel finish
- Full rack and pinion construction
- Self sticking templates supplied for most applications
- 1-1/2" diameter piston for superior door control
- Closing speed, latching speed and backcheck shall be controlled by key operated valves
- P10 - Heavy Duty Parallel Arm
- High impact non-corrosive plastic covers with two machine screws standard
- Adjustable spring power allows 1431 closers a size range of 1 through 6
- UL/cUL listed for use on fire rated doors
Specifications
| Construction | Heavy Duty Aluminum Alloy |
| Function | Door Closer |
| Interior or Exterior | Universal |
| Handing | Universal |
| Finish | EN - Sprayed Aluminum Enamel |
| Door Width | 24 - 48" |
| Diameter Piston | 1-1/2" |
| Projection from Wall | 2-1/4" |
| Application |
Parallel |
| Arm Type | P10 - Heavy Duty Parallel Arm |
| Fasteners | Machine Screws and self tapping screws provided for closer and arm |
| Max. Door Opening | 120° Standard 180° with alternate mounting or corner bracket |
| ADA | Meets ADA requirements in all applications, except Push Side Track application |
| Fire Rating | UL 10C listed for positive pressure fire test |
| Certifications | Certified ANSI/BHMA A156.4 Grade 1 |
| Warranty | 30-Year Limited Manufacturer Warranty |
