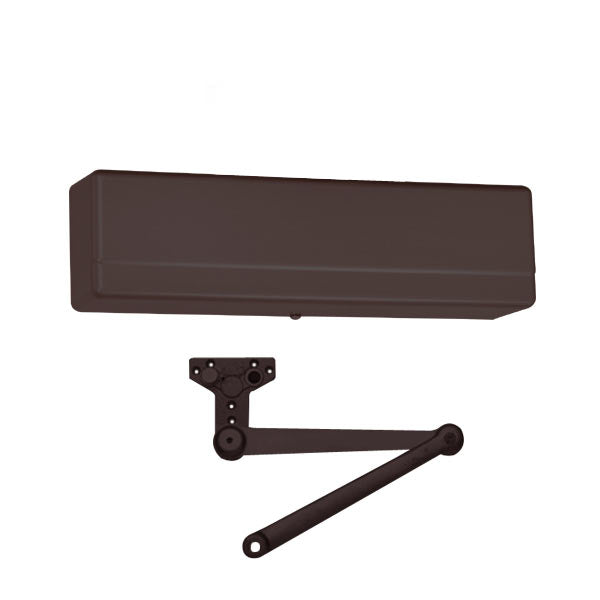

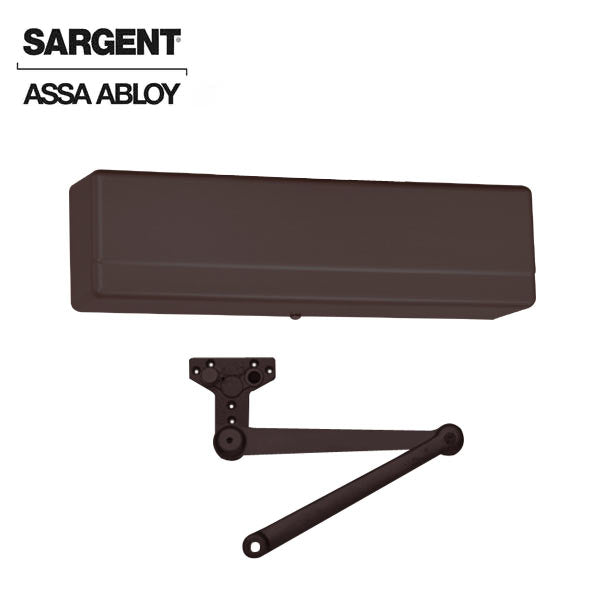

Sargent - 1431 - Powerglide Door Closer - Back Check Function - Heavy Duty Parallel Arm - Adjustable Size 1-6 - Plastic Cover - Dark Oxidized Satin Bronze - Fire Rated - Grade 1
Sargent - 1431 - Powerglide Door Closer - Back Check Function - Heavy Duty Parallel Arm - Adjustable Size 1-6 - Plastic Cover - Dark Oxidized Satin Bronze - Fire Rated - Grade 1
Sargent - 1431 - Powerglide Door Closer - Back Check Function - Heavy Duty Parallel Arm - Adjustable Size 1-6 - Plastic Cover - Dark Oxidized Satin Bronze - Fire Rated - Grade 1
Sargent - 1431 - Powerglide Door Closer - Back Check Function - Heavy Duty Parallel Arm - Adjustable Size 1-6 - Plastic Cover - Dark Oxidized Satin Bronze - Fire Rated - Grade 1
Sargent - 1431 - Powerglide Door Closer - Back Check Function - Heavy Duty Parallel Arm - Adjustable Size 1-6 - Plastic Cover - Dark Oxidized Satin Bronze - Fire Rated - Grade 1

Sargent - 1431 - Powerglide Door Closer - Back Check Function - Heavy Duty Parallel Arm - Adjustable Size 1-6 - Plastic Cover - Dark Oxidized Satin Bronze - Fire Rated - Grade 1

$285.00 $342.00
Availability: Out of Stock
Wishlist
  • Product SKU: SRG-1431-PS-10BE
  • NSID: 24634
  • SRG-1431-PS-10BE

    Featuring heavy-duty construction for superior strength and wear resistance, the Sargent 1431 Series Powerglide Door Closer is ideally suited for highly trafficked environments like schools, healthcare facilities, and office and commercial buildings. With a full complement of arm types and front-facing valves, the 1431 series can be easily installed and maintained—for interior and exterior applications.

    Features

    • Exceeds 25 million cycles
    • Non-handed
    • Dark Oxidized Satin Bronze Equivalent finish
    • Full rack and pinion construction
    • Self sticking templates supplied for most applications
    • 1-1/2" diameter piston for superior door control
    • Closing speed, latching speed and backcheck shall be controlled by key operated valves
    • PS - Heavy Duty Parallel Arm with Positive Stop
    • High impact non-corrosive plastic covers with two machine screws standard
    • Adjustable spring power allows 1431 closers a size range of 1 through 6
    • UL/cUL listed for use on fire rated doors



    $285.00

    Specifications

    Construction Heavy Duty Aluminum Alloy
    Function Door Closer with Positive Stop
    Interior or Exterior Universal
    Handing Non-Handed
    Finish 10BE - Dark Oxidized Satin Bronze Equivalent
    Door Width 24 - 48"
    Diameter Piston 1-1/2"
    Projection from Wall 2-1/4"
    Application
    Parallel
    Arm Type PS - Heavy Duty Parallel Arm with Positive Stop
    Fasteners Machine Screws and self tapping screws provided for closer and arm
    Max. Door Opening 110°
    Stop Angle 85° - 110° - Positive Stop
    ADA Meets ADA requirements in all applications, except Push Side Track application
    Fire Rating UL 10C listed for positive pressure fire test
    Certifications Certified ANSI/BHMA A156.4 Grade 1
    Warranty 30-Year Limited Manufacturer Warranty


    Downloads
    Product Catalog
    Product Template
    Installation Guide

    SRG-1431-PS-10BE

    Featuring heavy-duty construction for superior strength and wear resistance, the Sargent 1431 Series Powerglide Door Closer is ideally suited for highly trafficked environments like schools, healthcare facilities, and office and commercial buildings. With a full complement of arm types and front-facing valves, the 1431 series can be easily installed and maintained—for interior and exterior applications.

    Features

    • Exceeds 25 million cycles
    • Non-handed
    • Dark Oxidized Satin Bronze Equivalent finish
    • Full rack and pinion construction
    • Self sticking templates supplied for most applications
    • 1-1/2" diameter piston for superior door control
    • Closing speed, latching speed and backcheck shall be controlled by key operated valves
    • PS - Heavy Duty Parallel Arm with Positive Stop
    • High impact non-corrosive plastic covers with two machine screws standard
    • Adjustable spring power allows 1431 closers a size range of 1 through 6
    • UL/cUL listed for use on fire rated doors


      Specifications

      Construction Heavy Duty Aluminum Alloy
      Function Door Closer with Positive Stop
      Interior or Exterior Universal
      Handing Non-Handed
      Finish 10BE - Dark Oxidized Satin Bronze Equivalent
      Door Width 24 - 48"
      Diameter Piston 1-1/2"
      Projection from Wall 2-1/4"
      Application
      Parallel
      Arm Type PS - Heavy Duty Parallel Arm with Positive Stop
      Fasteners Machine Screws and self tapping screws provided for closer and arm
      Max. Door Opening 110°
      Stop Angle 85° - 110° - Positive Stop
      ADA Meets ADA requirements in all applications, except Push Side Track application
      Fire Rating UL 10C listed for positive pressure fire test
      Certifications Certified ANSI/BHMA A156.4 Grade 1
      Warranty 30-Year Limited Manufacturer Warranty


      Downloads
      Product Catalog
      Product Template
      Installation Guide
