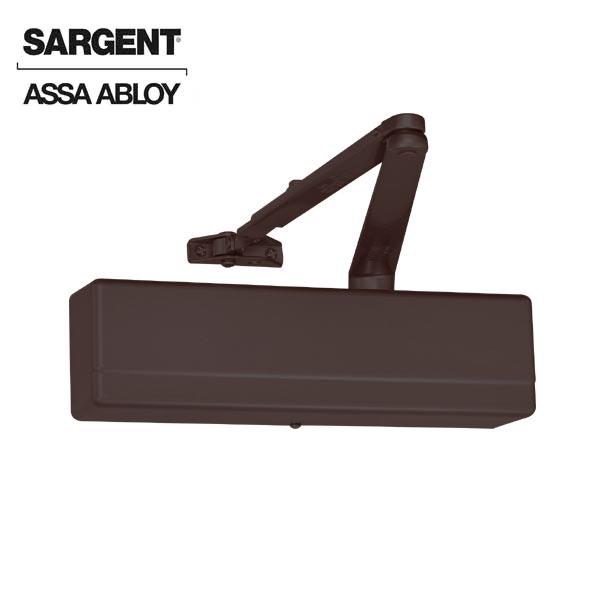

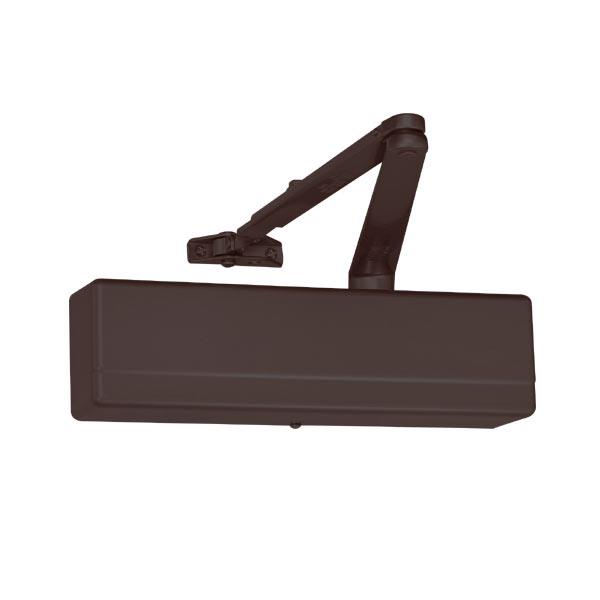

Sargent - 1431 - Powerglide Door Closer - Back Check Function - Universal Standard Arm Package - Adjustable Size 1-6 - Plastic Cover - Dark Oxidized Satin Bronze - Fire Rated - Grade 1

Available to Order
SKU: SRG-1431-UO-10BE
NSID: 24625

Please Note: This product has a lead time

$250.00
$300.00
$250.00

Featuring heavy-duty construction for superior strength and wear resistance, the Sargent 1431 Series Powerglide Door Closer is ideally suited for highly trafficked environments like schools, healthcare facilities, and office and commercial buildings. With a full complement of arm types and front-facing valves, the 1431 series can be easily installed and maintained—for interior and exterior applications.

Features

  • Exceeds 25 million cycles
  • Non-handed
  • Dark Oxidized Satin Bronze Equivalent finish
  • Full rack and pinion construction
  • Self sticking templates supplied for most applications
  • 1-1/2" diameter piston for superior door control
  • Closing speed, latching speed and backcheck shall be controlled by key operated valves
  • UO - Universal Standard Arm Package - Contains Arms & Brackets to install in Standard, Top Jamb, and Parallel applications
  • High impact non-corrosive plastic covers with two machine screws standard
  • Adjustable spring power allows 1431 closers a size range of 1 through 6
  • UL/cUL listed for use on fire rated doors


Call 1-800-878-6604 for Bulk / Dealer Pricing!

    Specifications

    Construction Heavy Duty Aluminum Alloy
    Function Door Closer
    Interior or Exterior Universal
    Handing Non-Handed
    Finish 10BE - Dark Oxidized Satin Bronze Equivalent
    Door Width 24 - 48"
    Diameter Piston 1-1/2"
    Projection from Wall 2-1/4"
    Application
    Standard, Top Jamb, Parallel
    Arm Type UO - Universal Standard Arm Package - Contains Arms & Brackets to install in Standard, Top Jamb, and Parallel applications
    Fasteners Machine Screws and self tapping screws provided for closer and arm
    Max. Door Opening 120° Standard
    180° with alternate mounting or corner bracket
    ADA Meets ADA requirements in all applications, except Push Side Track application
    Fire Rating UL 10C listed for positive pressure fire test
    Certifications Certified ANSI/BHMA A156.4 Grade 1
    Warranty 30-Year Limited Manufacturer Warranty


    Downloads
    Product Catalog
    Product Template
    Installation Guide
