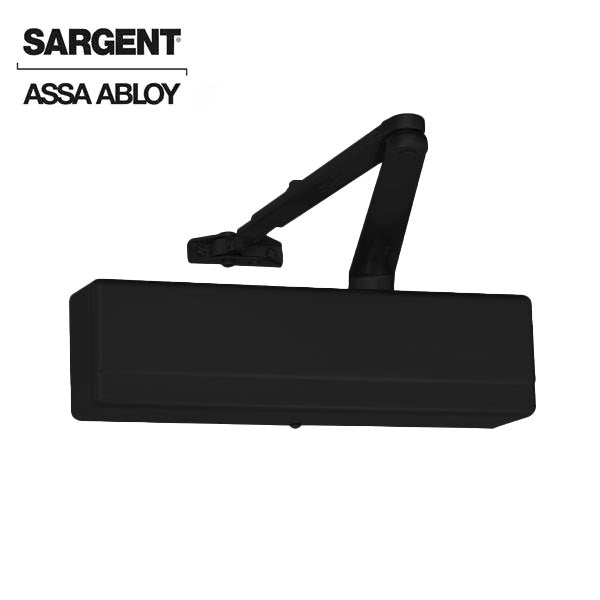

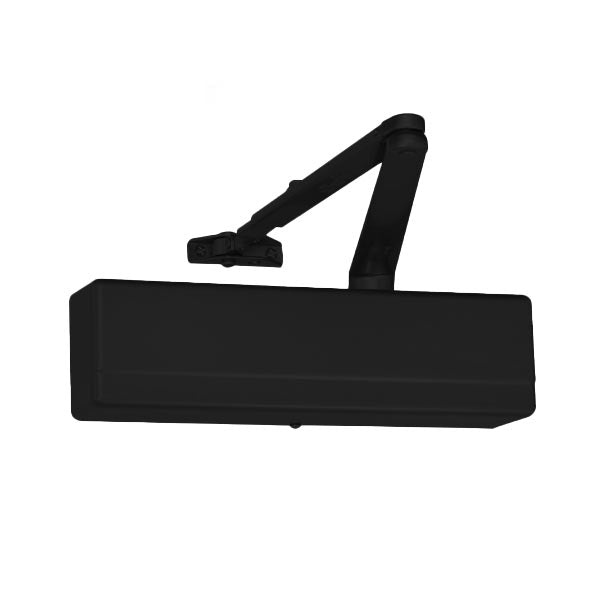

*Discontinued* Sargent - 1431 - Powerglide Door Closer - Back Check Function - Universal Standard Arm Package - Adjustable Size 1-6 - Plastic Cover - Black Suede - Fire Rated - Grade 1
Out of Stock
SKU:
SRG-1431-UO-BSP
NSID:
24626
- $361.71
-
$434.05 - $361.71
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Featuring heavy-duty construction for superior strength and wear resistance, the Sargent 1431 Series Powerglide Door Closer is ideally suited for highly trafficked environments like schools, healthcare facilities, and office and commercial buildings. With a full complement of arm types and front-facing valves, the 1431 series can be easily installed and maintained—for interior and exterior applications.
Features
- Exceeds 25 million cycles
- Non-handed
- Black Suede Powder Coat finish
- Full rack and pinion construction
- Self sticking templates supplied for most applications
- 1-1/2" diameter piston for superior door control
- Closing speed, latching speed and backcheck shall be controlled by key operated valves
- UO - Universal Standard Arm Package - Contains Arms & Brackets to install in Standard, Top Jamb, and Parallel applications
- High impact non-corrosive plastic covers with two machine screws standard
- Adjustable spring power allows 1431 closers a size range of 1 through 6
- UL/cUL listed for use on fire rated doors
- $361.71
-
$434.05 - $361.71
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Construction | Heavy Duty Aluminum Alloy |
| Function | Door Closer |
| Interior or Exterior | Universal |
| Handing | Non-Handed |
| Finish | BSP - Black Suede Powder Coat |
| Door Width | 24 - 48" |
| Diameter Piston | 1-1/2" |
| Projection from Wall | 2-1/4" |
| Application |
Standard, Top Jamb, Parallel |
| Arm Type | UO - Universal Standard Arm Package - Contains Arms & Brackets to install in Standard, Top Jamb, and Parallel applications |
| Fasteners | Machine Screws and self tapping screws provided for closer and arm |
| Max. Door Opening | 120° Standard 180° with alternate mounting or corner bracket |
| ADA | Meets ADA requirements in all applications, except Push Side Track application |
| Fire Rating | UL 10C listed for positive pressure fire test |
| Certifications | Certified ANSI/BHMA A156.4 Grade 1 |
| Warranty | 30-Year Limited Manufacturer Warranty |
Downloads
Product Catalog
Product Template
Installation Guide
