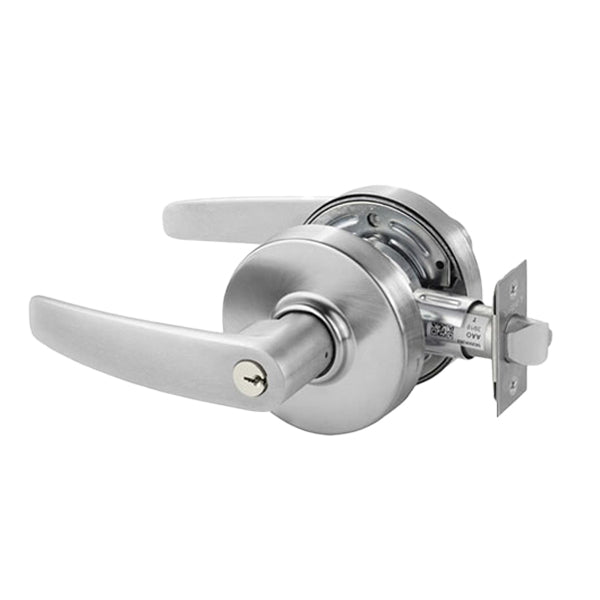

Sargent - 28-7G05-LB - Line Bored Knob - Entrance/Office Cylindrical Lever Lockset - B-Rose - LF Keyway - Deadlatch - Non-Handed - Grade 2 - Satin Chrome 26D
Available to Order
SKU:
SRG-28-7G05-LB-26
NSID:
75755
- $236.87
-
$284.22 - $236.87
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
A key-in-lever lock designed for standard-duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities, and public buildings. Exceeds ANSI/BHMA A156.2 Standards for cycling and durability.
Features:
- Deadlocking latch
- Latch by either lever unless the outside lever is locked by the push/turn button in the inside lever
- Push button released by key outside or lever inside
- The turn button must be released manually
- Key retracts latch when outside lever is locked
- Fits modified 161 door preps, installs in 1 minute or less
- Internal through bolts supply strength and stability without requiring additional door preparation
Specifications:
| Door Thickness | 1-3/4" (44mm) Thick Door Standard |
| Backset | 2-3/4" (70mm) Backset Standard |
| Cylindrical Housing | Steel, zinc dichromate |
| Front | Stainless steel |
| Strike | 808 ANSI strike 1-1/4" Curved lip |
| Lock Function | Entry (Entrance), Office |
| Handing | Non-Handed |
| Usage | Medium Duty |
| Latch Type | Deadlatch |
| Keyway | LF Keyway |
| Number of pins | 6 pins |
| Lever/Knob Design | B Lever |
| Rose/Escutcheon | O-Rose, 3-3/8" |
| Cylinder Type | Conventional Cylinder |
| Keys | 2 keys |
| Bolt Projection | 1/2" |
| Dust Box | None |
| Latch Bore | 7/8" |
| Bore Hole Diameter | 2-1/8" |
| Lock Face | 1-1/8 x 2-1/4" |
| Base material | Brass |
| Limted Warranty | 5-years Manufacturer's warranty |
| Fire Rated | 3 Hours {A} |
| Burgular Rated | No |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 2, UL Listed |
