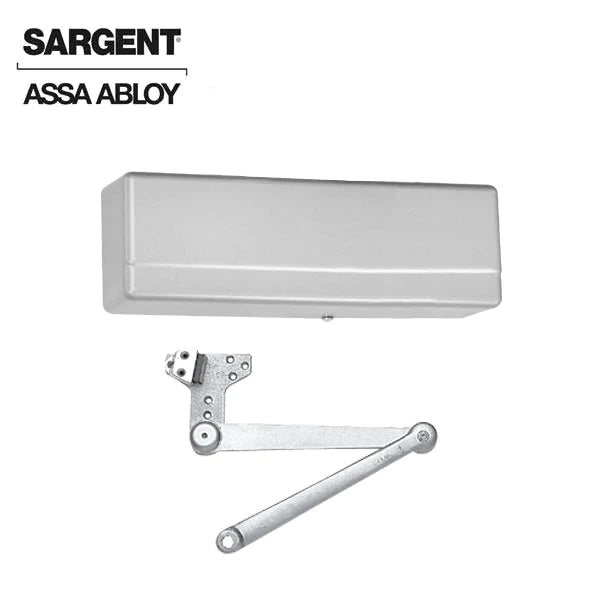

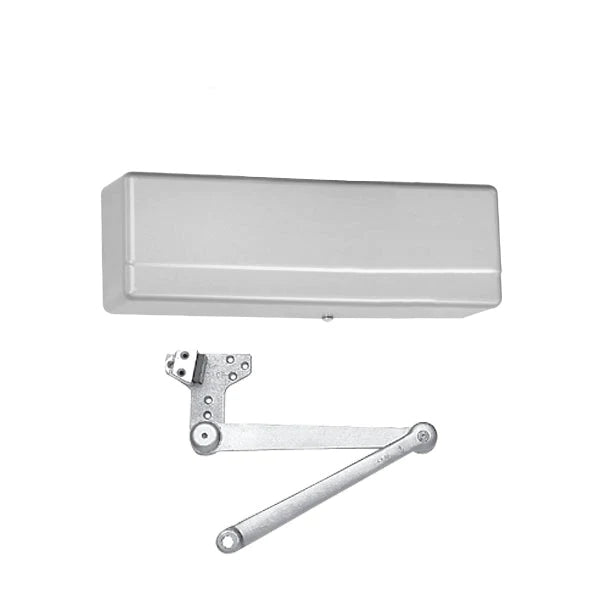

Sargent - 281 - Powerglide Cast Iron Door Closer - Back Check Function - Regular Duty Parallel Arm - Adjustable Size 1-6 - Plastic Cover - Aluminum - Fire Rated - Grade 1
- Product SKU: SRG-281-P9-EN
- NSID: 37258
-
SRG-281-P9-EN
The Sargent 281-P9-EN Regular duty door closers are designed for interior and exterior doors with quality and flexibility to meet virtually every application. All 281 Series closers are equipped with fluid that allows the units to operate effectively in extreme temperatures without readjustment. The spring size is adjustable to fit any application. The 281 Series door closers are certified to the ANSI/BHMA A156.4 Grade 1 requirements
Features
- Exceeds 25 million cycles
- Non-handed
- Sprayed Aluminum Enamel finish
- Full rack and pinion construction
- 1-1/2" diameter piston for superior door control
- Self sticking templates supplied for most applications
- Heavy duty mounting bracket for easy installation of full size iron closer
- Closing speed, latching speed and backcheck shall be controlled by key operated valves
- P9 Regular parallel arm application
- For use in moderate duty institutional applications
- 120° Maximum door opening
- Double jointed arm provides flexibility in the vertical mounting position of closer
- Cover secured by machine screws
- Fasteners: Machine screws and self tapping screws provided for closer and arm
Specifications
| Construction | Heavy Duty Cast Iron |
| Function | Door Closer |
| Interior or Exterior | Interior |
| Handing | Non-Handed |
| Finish | EN - Sprayed Aluminum Enamel |
| Door Width | 24 - 48" |
| Diameter Piston | 1-1/2" |
| Body Projection from Door | 2-3/16" |
| Fasteners | Machine Screws and self tapping screws provided for closer and arm |
| Max. Door Opening | 180° |
| ADA | Meets ADA requirements in all applications, except Push Side Track application |
| Fire Rating | UL 10C listed for positive pressure fire test |
| Certifications | Certified ANSI/BHMA A156.4 Grade 1 |
| Warranty | 30-Year Limited Manufacturer Warranty |
Downloads
Product Catalog
Product Template
Installation Guide
