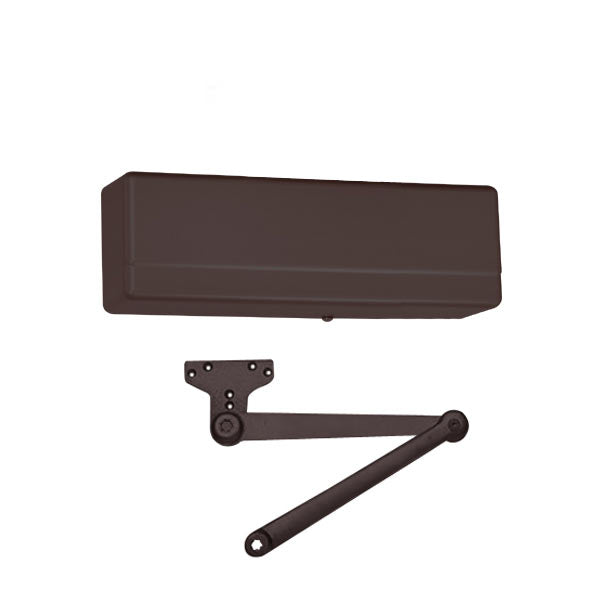

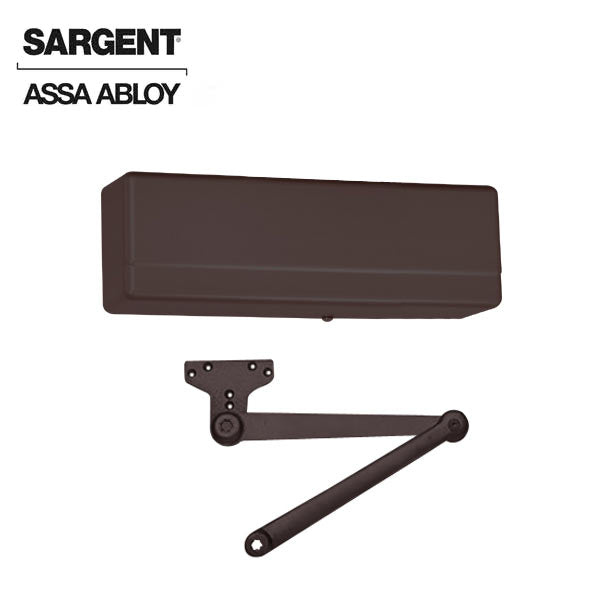

Sargent - 281 - Powerglide Cast Iron Door Closer w/ P10 - Heavy Duty Parallel Arm - 10BE - Dark Oxidized Satin Bronze Equivalent - Grade 1
Sargent - 281 - Powerglide Cast Iron Door Closer w/ P10 - Heavy Duty Parallel Arm - 10BE - Dark Oxidized Satin Bronze Equivalent - Grade 1
Sargent - 281 - Powerglide Cast Iron Door Closer w/ P10 - Heavy Duty Parallel Arm - 10BE - Dark Oxidized Satin Bronze Equivalent - Grade 1
Sargent - 281 - Powerglide Cast Iron Door Closer w/ P10 - Heavy Duty Parallel Arm - 10BE - Dark Oxidized Satin Bronze Equivalent - Grade 1
Sargent - 281 - Powerglide Cast Iron Door Closer w/ P10 - Heavy Duty Parallel Arm - 10BE - Dark Oxidized Satin Bronze Equivalent - Grade 1

Sargent - 281 - Powerglide Cast Iron Door Closer w/ P10 - Heavy Duty Parallel Arm - 10BE - Dark Oxidized Satin Bronze Equivalent - Grade 1

$310.00 $372.00
Available: Out of Stock
Wishlist
  • Product SKU: SRG-281-P10-10BE
  • SRG-281-P10-10BE

    Designed to meet the needs of facilities maintaining “cast iron” specifications, the Sargent 281 Series Powerglide Cast Iron Door Closer features a heavy-duty one-piece cast iron body for superior strength and wear resistance. With a full complement of arm types and front-facing valves, the 281 series can be easily installed and maintained—for interior and exterior applications.

    Features

    • Exceeds 25 million cycles
    • Non-handed
    • Dark Oxidized Satin Bronze finish
    • Heat treated full rack and pinion for high strength & wear resistance
    • Heavy duty one piece cast iron body provides superior strength and wear resistance
    • Self sticking templates supplied for most applications
    • 1-1/2" diameter piston for superior door control
    • Closing speed, latching speed and backcheck shall be controlled by key operated valves
    • P10 - Heavy duty parallel arm
    • High impact non-corrosive plastic covers with two machine screws standard
    • Adjustable spring power allows 281 closers a size range of 1 through 6
    • UL/cUL listed for use on fire rated doors



    $310.00

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

    Specifications

    Construction Heavy Duty Cast Iron
    Function Door Closer
    Interior or Exterior Universal
    Handing Non-Handed
    Finish 10BE - Dark Oxidized Satin Bronze
    Door Width 24 - 48"
    Diameter Piston 1-1/2"
    Body Projection from Door 2-3/16"
    Application
    Parallel
    Arm Type P10 - Heavy Duty Parallel Arm
    Fasteners Machine Screws and self tapping screws provided for closer and arm
    Max. Door Opening 120° - Standard Mounting
    180° - Alternative Mounting
    ADA Meets ADA requirements in all applications, except Push Side Track application
    Fire Rating UL 10C listed for positive pressure fire test
    Certifications Certified ANSI/BHMA A156.4 Grade 1
    Warranty 30-Year Limited Manufacturer Warranty


    Downloads
    Product Catalog
    Product Template
    Installation Guide

    SRG-281-P10-10BE

    Designed to meet the needs of facilities maintaining “cast iron” specifications, the Sargent 281 Series Powerglide Cast Iron Door Closer features a heavy-duty one-piece cast iron body for superior strength and wear resistance. With a full complement of arm types and front-facing valves, the 281 series can be easily installed and maintained—for interior and exterior applications.

    Features

    • Exceeds 25 million cycles
    • Non-handed
    • Dark Oxidized Satin Bronze finish
    • Heat treated full rack and pinion for high strength & wear resistance
    • Heavy duty one piece cast iron body provides superior strength and wear resistance
    • Self sticking templates supplied for most applications
    • 1-1/2" diameter piston for superior door control
    • Closing speed, latching speed and backcheck shall be controlled by key operated valves
    • P10 - Heavy duty parallel arm
    • High impact non-corrosive plastic covers with two machine screws standard
    • Adjustable spring power allows 281 closers a size range of 1 through 6
    • UL/cUL listed for use on fire rated doors


      Specifications

      Construction Heavy Duty Cast Iron
      Function Door Closer
      Interior or Exterior Universal
      Handing Non-Handed
      Finish 10BE - Dark Oxidized Satin Bronze
      Door Width 24 - 48"
      Diameter Piston 1-1/2"
      Body Projection from Door 2-3/16"
      Application
      Parallel
      Arm Type P10 - Heavy Duty Parallel Arm
      Fasteners Machine Screws and self tapping screws provided for closer and arm
      Max. Door Opening 120° - Standard Mounting
      180° - Alternative Mounting
      ADA Meets ADA requirements in all applications, except Push Side Track application
      Fire Rating UL 10C listed for positive pressure fire test
      Certifications Certified ANSI/BHMA A156.4 Grade 1
      Warranty 30-Year Limited Manufacturer Warranty


      Downloads
      Product Catalog
      Product Template
      Installation Guide
