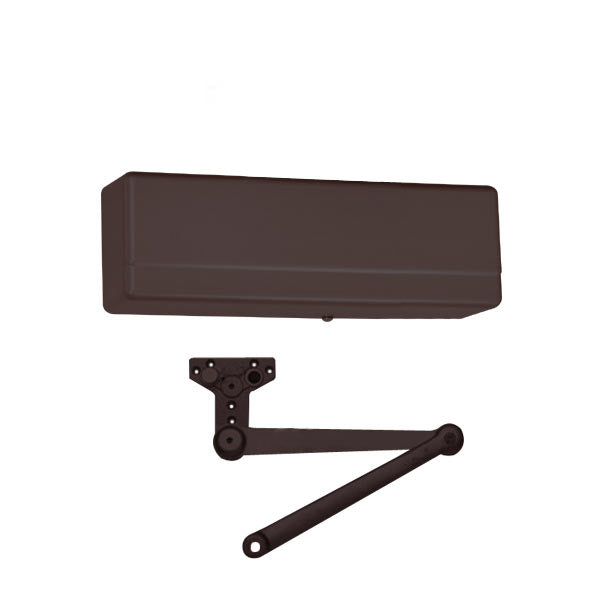

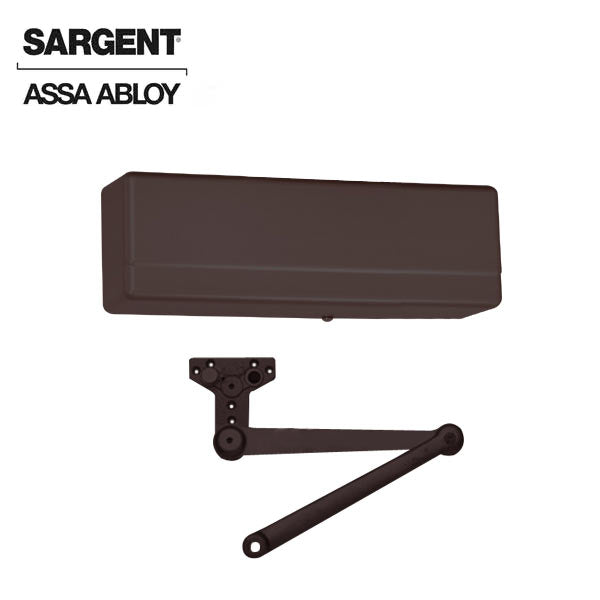

Sargent - 281 - Powerglide Cast Iron Door Closer w/ PS - Heavy Duty Parallel Arm w/ Positive Stop - 10BE - Dark Oxidized Satin Bronze Equivalent - Grade 1 - UHS Hardware
Sargent - 281 - Powerglide Cast Iron Door Closer w/ PS - Heavy Duty Parallel Arm w/ Positive Stop - 10BE - Dark Oxidized Satin Bronze Equivalent - Grade 1 - UHS Hardware

Sargent - 281 - Powerglide Cast Iron Door Closer - Back Check Function - Heavy Duty Parallel Arm w/ Positive Stop - Adjustable Size 1-6 - Plastic Cover - Dark Oxidized Satin Bronze - Fire Rated - Grade 1

Available to Order
SKU: SRG-281-PS-10BE
NSID: 24655

Please Note: This product has a lead time

$310.00
$372.00
$310.00

Designed to meet the needs of facilities maintaining “cast iron” specifications, the Sargent 281 Series Powerglide Cast Iron Door Closer features a heavy-duty one-piece cast iron body for superior strength and wear resistance. With a full complement of arm types and front-facing valves, the 281 series can be easily installed and maintained—for interior and exterior applications.

Features

  • Exceeds 25 million cycles
  • Non-handed
  • Dark Oxidized Satin Bronze finish
  • Heat treated full rack and pinion for high strength & wear resistance
  • Heavy duty one piece cast iron body provides superior strength and wear resistance
  • Self sticking templates supplied for most applications
  • 1-1/2" diameter piston for superior door control
  • Closing speed, latching speed and backcheck shall be controlled by key operated valves
  • PS - Heavy duty parallel arm with positive stop
  • High impact non-corrosive plastic covers with two machine screws standard
  • Adjustable spring power allows 281 closers a size range of 1 through 6
  • UL/cUL listed for use on fire rated doors


Call 1-800-878-6604 for Bulk / Dealer Pricing!

    Specifications

    Construction Heavy Duty Cast Iron
    Function Door Closer w/ Positive Stop
    Interior or Exterior Universal
    Handing Non-Handed
    Finish 10BE - Dark Oxidized Satin Bronze
    Door Width 24 - 48"
    Diameter Piston 1-1/2"
    Body Projection from Door 2-3/16"
    Application
    Parallel
    Arm Type PS - Heavy Duty Parallel Arm with Positive Stop
    Fasteners Machine Screws and self tapping screws provided for closer and arm
    Max. Door Opening 110°
    Stop Angle 85° - 110°
    ADA Meets ADA requirements in all applications, except Push Side Track application
    Fire Rating UL 10C listed for positive pressure fire test
    Certifications Certified ANSI/BHMA A156.4 Grade 1
    Warranty 30-Year Limited Manufacturer Warranty
