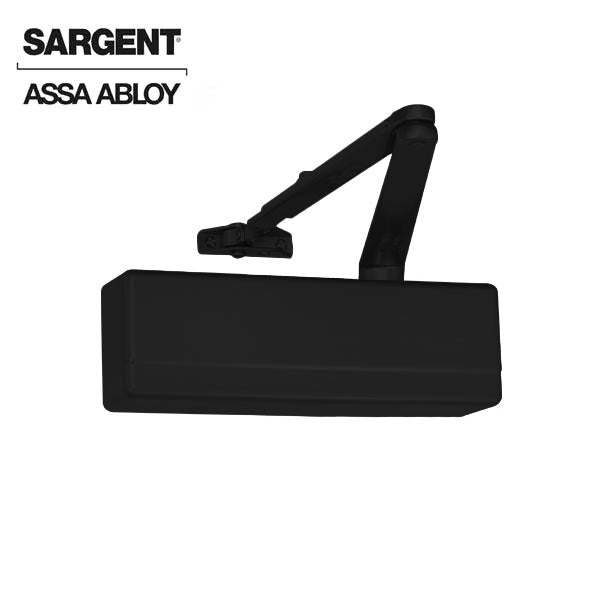

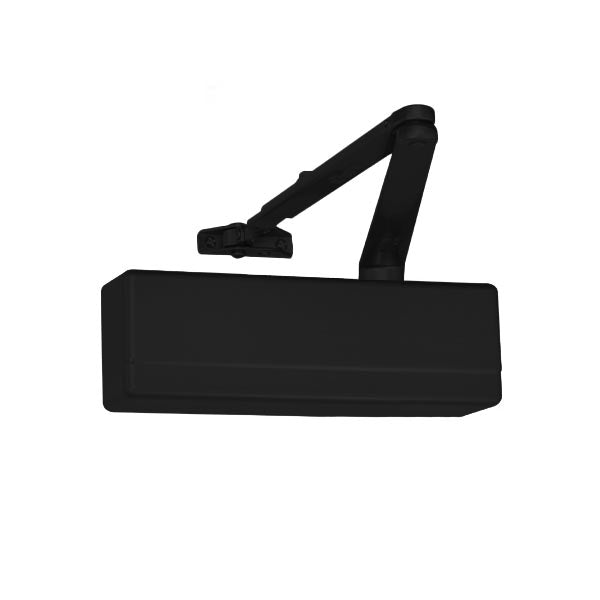

*Discontinued* Sargent - 281 - Powerglide Cast Iron Door Closer - Back Check Function - Universal Standard Arm Package - Adjustable Size 1-6 - Plastic Cover - Black Suede - Fire Rated - Grade 1
Out of Stock
SKU:
SRG-281-UO-BSP
NSID:
24647
- $285.00
-
- $285.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Designed to meet the needs of facilities maintaining “cast iron” specifications, the Sargent 281 Series Powerglide Cast Iron Door Closer features a heavy-duty one-piece cast iron body for superior strength and wear resistance. With a full complement of arm types and front-facing valves, the 281 series can be easily installed and maintained—for interior and exterior applications.
Features
- Exceeds 25 million cycles
- Non-handed
- Black Suede Powder Coat finish
- Heat treated full rack and pinion for high strength & wear resistance
- Heavy duty one piece cast iron body provides superior strength and wear resistance
- Self sticking templates supplied for most applications
- 1-1/2" diameter piston for superior door control
- Closing speed, latching speed and backcheck shall be controlled by key operated valves
- UO - Universal arm package provides arms and brackets to install closer in standard, top jamb, or parallel application
- High impact non-corrosive plastic covers with two machine screws standard
- Adjustable spring power allows 281 closers a size range of 1 through 6
- UL/cUL listed for use on fire rated doors
- $285.00
-
- $285.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Construction | Heavy Duty Cast Iron |
| Function | Door Closer |
| Interior or Exterior | Universal |
| Handing | Non-Handed |
| Finish | BSP - Black Suede Powder Coat |
| Door Width | 24 - 48" |
| Diameter Piston | 1-1/2" |
| Body Projection from Door | 2-3/16" |
| Application |
Standard, Top Jamb, Parallel |
| Arm Type | UO - Universal arm package provides arms and brackets to install closer in standard, top jamb, or parallel application |
| Fasteners | Machine Screws and self tapping screws provided for closer and arm |
| Max. Door Opening | 180° |
| ADA | Meets ADA requirements in all applications, except Push Side Track application |
| Fire Rating | UL 10C listed for positive pressure fire test |
| Certifications | Certified ANSI/BHMA A156.4 Grade 1 |
| Warranty | 30-Year Limited Manufacturer Warranty |
Downloads
Product Catalog
Product Template
Installation Guide
