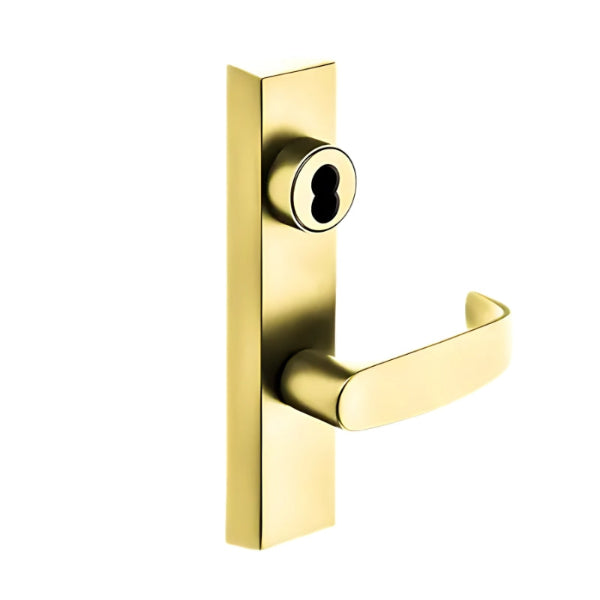

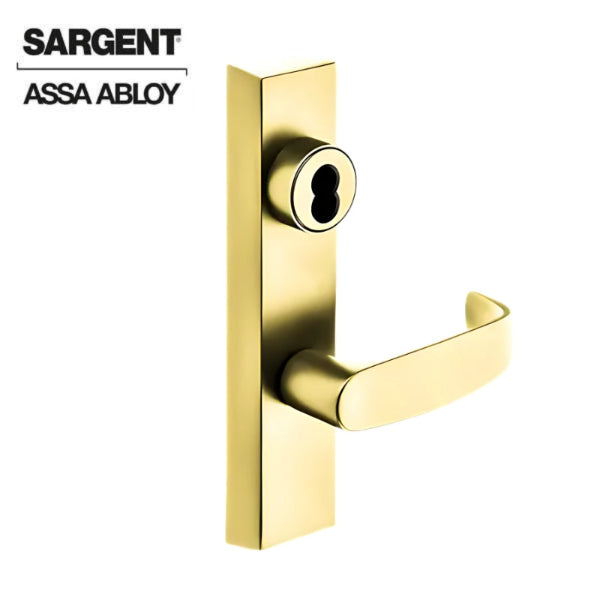

Sargent - 70-713-4-ETP-RHRB - Exit Device Trim - Classroom Function - For Concealed Vertical Rod 8400/8600 Series Devices - SFIC Prep Less Core - P Lever - Right Hand Reverse - Grade 1 - Bright Brass 605/US3 Finish
Available to Order
SKU:
SRG-70-713-4-ETP-RHRB-3
NSID:
77643
- $750.00
-
$900.00 - $750.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The SARGENT SRG-70-713-4-ETP-RHRB-3 is a Grade 1 exit device trim designed for high-traffic and secure environments. It features a classroom function where the key from the exterior side locks or unlocks the trim, ensuring controlled access. This trim is compatible with SARGENT's 8400 and 8600 Series Concealed Vertical Rod Exit Devices.
Specifications:
| Manufacturer | Sargent |
| Model Number | 70-713-4-ETP-RHRB-3 |
| Function | Classroom (ANSI Function 08) |
| Compatibility | Designed for use with SARGENT 8400 and 8600 Series concealed Vertical rod exit devices |
| Handing | Right Hand Reverse (RHR) |
| Lever Design | P-Lever |
| Finish | Bright Brass (US3/605) |
| Cylinder Preparation | Small Format Interchangeable Core (SFIC) prep, Less Core |
| Cylinder type | Accepts 1-1/8" Mortise Cylinder |
| Door Thickness | 1-3/4" |
| ADA Compliance | Yes |
| Fire Rating | Not fire-rated |
| Height | 8-1/16" |
| Width | 1-13/16" |
| Thickness | 13/16" |
| Length | 4-15/16" |
| Projection | 3-9/16" |
