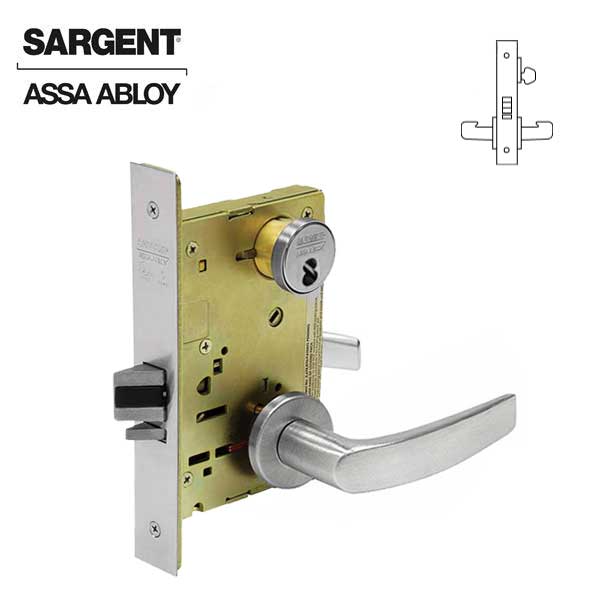

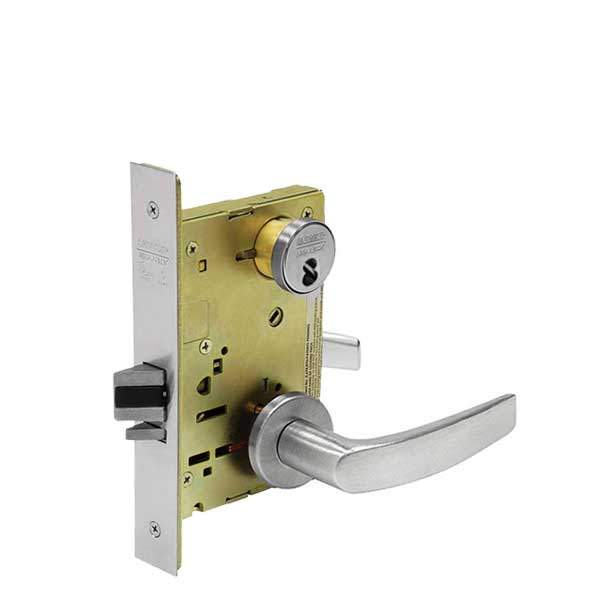

Sargent - 8237 - Mechanical Mortise Lock - LN Rose / B Lever - Classroom - 1-3/4" Frame - SFIC - Satin Chrome - Grade 1
Sargent - 8237 - Mechanical Mortise Lock - LN Rose / B Lever - Classroom - 1-3/4" Frame - SFIC - Satin Chrome - Grade 1
$628.87$754.64On Sale
You save $125.77 (17%)
Quantity
Couldn't load pickup availability
The 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.
Features:
- Strong and Reliable
- Pre-assembled components make installation fool-proof
- Lock easily re-handed without removing parts or opening the lock case
- Only 30 degrees of lever rotation required to retract latchbolt for easy operation
- Classroom Function - Outside Keyed, Inside Always Unlocked
- Comes with two Nickel Silver Keys
- Exceeds Grade 1 requirements
View full details
Details
Specifications:
| Construction: | Heavy Duty Steel |
| Lock Function: | Mechanical Mortise Lock - Classroom - Outside Keyed lock / Inside Always Unlocked |
| Door Thickness: | 1-3/4" |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | 8”L x 1-1/4”W |
| Strike: | ANSI 1-1/4" Standard; Curved lip, non-handed |
| Strike Height: | 4-7/8" |
| Frame Inner Dimension Requirements: | 8”L x 1-1/2”W x 1-1/2”D |
| Bolt Diameter: | 3/4” |
| Bolt Throw: | 1” |
| Stile: | 4-3/4" |
| Rose & Lever: | Standard LN Rose and B Lever |
| Cylinder: |
1-1/8" Brass SFIC |
| Keyway: | 6 or 7 Pin SFIC (Core Not Included) |
| Finish: | 626 - Satin Chrome |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 10-Year Manufacturer Warranty |
Downloads:
