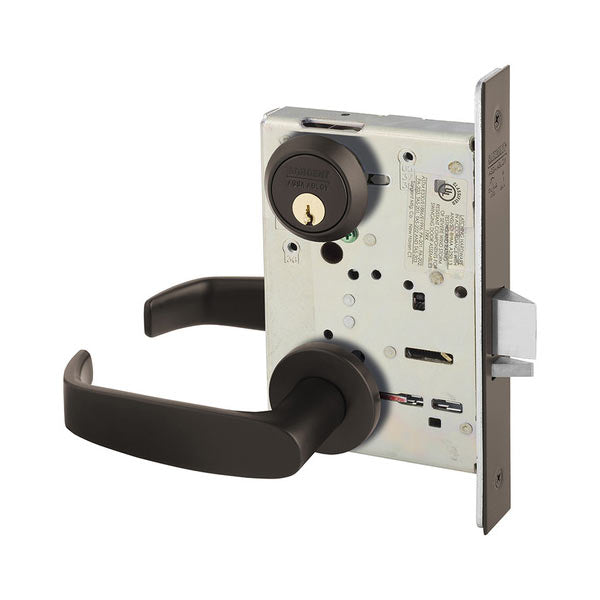

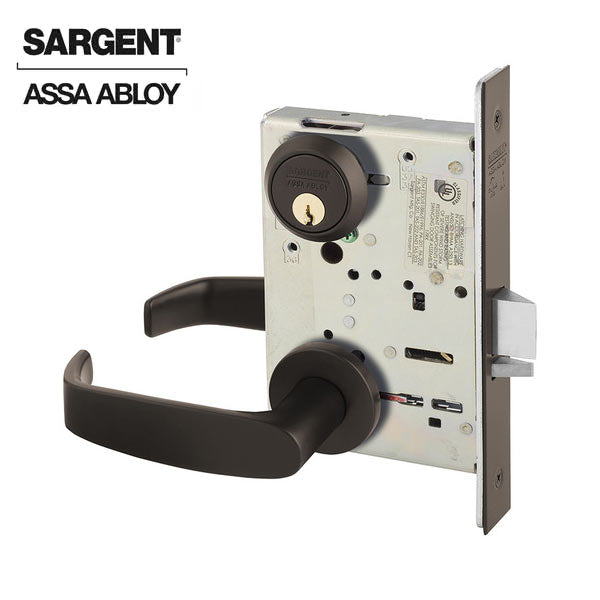

Sargent - 8204 - Mechanical Mortise Lock - LN Rose / L Lever - Storeroom - LFIC - 10BE - Dark Oxidized Satin Bronze Equivalent - Grade 1
Sargent - 8204 - Mechanical Mortise Lock - LN Rose / L Lever - Storeroom - LFIC - 10BE - Dark Oxidized Satin Bronze Equivalent - Grade 1
Sargent - 8204 - Mechanical Mortise Lock - LN Rose / L Lever - Storeroom - LFIC - 10BE - Dark Oxidized Satin Bronze Equivalent - Grade 1
Sargent - 8204 - Mechanical Mortise Lock - LN Rose / L Lever - Storeroom - LFIC - 10BE - Dark Oxidized Satin Bronze Equivalent - Grade 1
Sargent - 8204 - Mechanical Mortise Lock - LN Rose / L Lever - Storeroom - LFIC - 10BE - Dark Oxidized Satin Bronze Equivalent - Grade 1

Sargent - 8204 - Mechanical Mortise Lock - LN Rose / L Lever - Storeroom - LFIC - 10BE - Dark Oxidized Satin Bronze Equivalent - Grade 1

$520.00 $624.00
Availability: Available
Wishlist
  • Product SKU: SRG-63-8204-LNL-10BE
  • NSID: 24688
  • SRG-63-8204-LNL-10BE

    The 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.

    Features

    • Strong and Reliable
    • Pre-assembled components make installation fool-proof
    • Lock easily re-handed without removing parts or opening the lock case
    • Only 30 degrees of lever rotation required to retract latchbolt for easy operation
    • Storeroom Function - Key outside retracts latchbolt, Trim outside always locked, trim inside always unlocked
    • Comes with two Nickel Silver Keys
    • Exceeds Grade 1 requirements



    $520.00
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications

Construction: Heavy Duty Steel
Lock Function: Mechanical Mortise Lock - Storeroom - Outside locked/Inside Unlocked
Door Thickness: 1-3/4"
Backset: 2-3/4" (70mm)
Faceplate:  8”L x 1-1/4”W
Strike: ANSI 1-1/4" Standard; Curved lip, non-handed
Strike Height: 4-7/8"
Frame Inner Dimension Requirements:  8”L x 1-1/2”W x 1-1/2”D
Bolt Diameter: 3/4”
Bolt Throw: 1”
Stile: 4-3/4"
Rose & Lever: Standard LN Rose and L Lever
Cylinder:
1-1/8" Brass LFIC
Keyway: 6 or 7 Pin LFIC
Finish: 10BE - Dark Oxidized Satin Bronze, Equivalent
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 10-Year Manufacturer Warranty



Downloads

SRG-63-8204-LNL-10BE

The 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.

Features

  • Strong and Reliable
  • Pre-assembled components make installation fool-proof
  • Lock easily re-handed without removing parts or opening the lock case
  • Only 30 degrees of lever rotation required to retract latchbolt for easy operation
  • Storeroom Function - Key outside retracts latchbolt, Trim outside always locked, trim inside always unlocked
  • Comes with two Nickel Silver Keys
  • Exceeds Grade 1 requirements


Specifications

Construction: Heavy Duty Steel
Lock Function: Mechanical Mortise Lock - Storeroom - Outside locked/Inside Unlocked
Door Thickness: 1-3/4"
Backset: 2-3/4" (70mm)
Faceplate:  8”L x 1-1/4”W
Strike: ANSI 1-1/4" Standard; Curved lip, non-handed
Strike Height: 4-7/8"
Frame Inner Dimension Requirements:  8”L x 1-1/2”W x 1-1/2”D
Bolt Diameter: 3/4”
Bolt Throw: 1”
Stile: 4-3/4"
Rose & Lever: Standard LN Rose and L Lever
Cylinder:
1-1/8" Brass LFIC
Keyway: 6 or 7 Pin LFIC
Finish: 10BE - Dark Oxidized Satin Bronze, Equivalent
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 10-Year Manufacturer Warranty



Downloads
