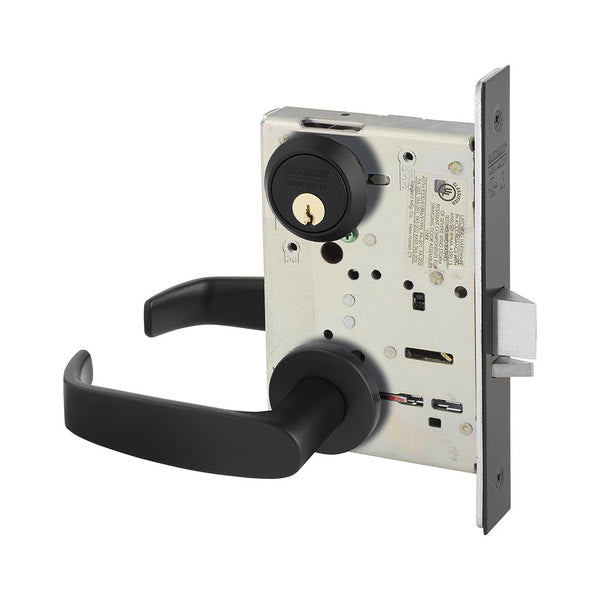

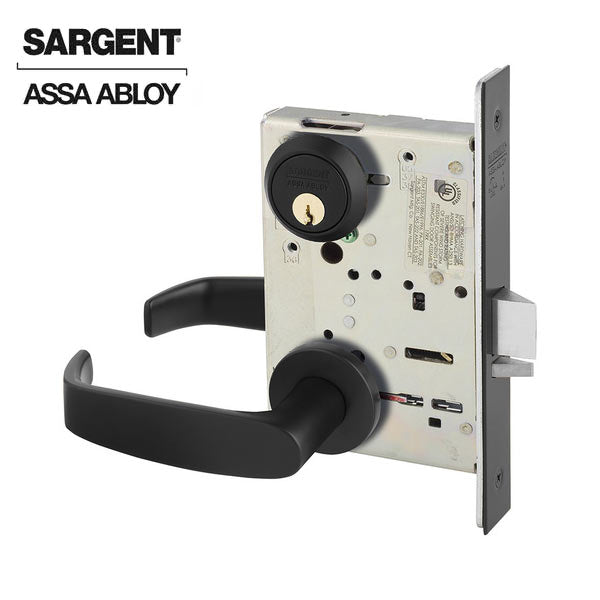

Sargent - 8204 - Mechanical Mortise Lock - LN Rose / L Lever - Storeroom - LFIC - BSP - Black Suede Powder Coat - Grade 1
Sargent - 8204 - Mechanical Mortise Lock - LN Rose / L Lever - Storeroom - LFIC - BSP - Black Suede Powder Coat - Grade 1
$859.64$1,031.57On Sale
You save $171.93 (17%)
Please Note:
This product has a lead time
Quantity
Couldn't load pickup availability
The 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.
Features
- Strong and Reliable
- Pre-assembled components make installation fool-proof
- Lock easily re-handed without removing parts or opening the lock case
- Only 30 degrees of lever rotation required to retract latchbolt for easy operation
- Storeroom Function - Key outside retracts latchbolt, Trim outside always locked, trim inside always unlocked
- Comes with two Nickel Silver Keys
- Exceeds Grade 1 requirements
View full details
Details
Specifications
| Construction: | Heavy Duty Steel |
| Lock Function: | Mechanical Mortise Lock - Storeroom - Outside locked/Inside Unlocked |
| Door Thickness: | 1-3/4" |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | 8”L x 1-1/4”W |
| Strike: | ANSI 1-1/4" Standard; Curved lip, non-handed |
| Strike Height: | 4-7/8" |
| Frame Inner Dimension Requirements: | 8”L x 1-1/2”W x 1-1/2”D |
| Bolt Diameter: | 3/4” |
| Bolt Throw: | 1” |
| Stile: | 4-3/4" |
| Rose & Lever: | Standard LN Rose and L Lever |
| Cylinder: |
1-1/8" Brass LFIC |
| Keyway: | 6 or 7 Pin LFIC |
| Finish: | BSP - Black Suede Powder Coat |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 10-Year Manufacturer Warranty |
