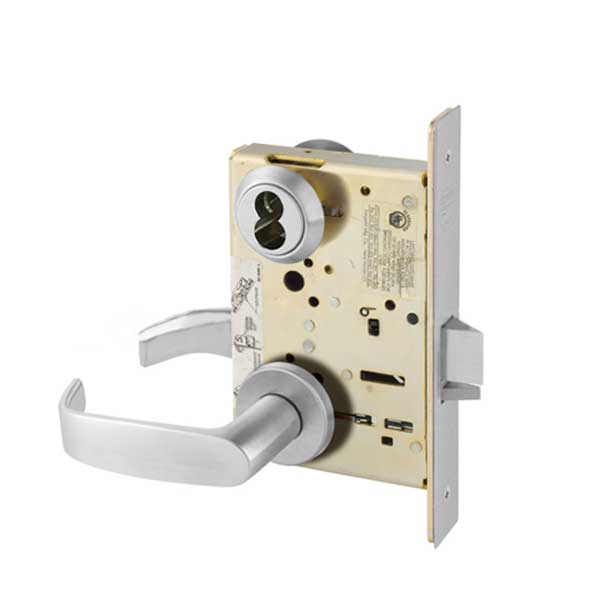

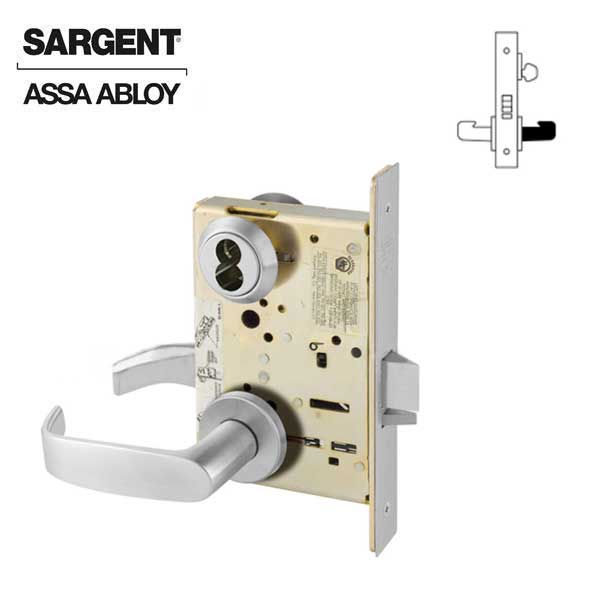

Sargent - 8204 - Mechanical Mortise Lock - LN Rose / L Lever - Storeroom - SFIC - 26D - Satin Chrome Plated - Grade 1

In Stock
SKU: SRG-70-8204-LNL-26D
NSID: 24666

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$483.10
$588.00
$483.10

The Sargent 8204-LNL-26D Storeroom or Closet mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

Features

  • Key outside retracts latchbolt
  • Trim outside locked at all times
  • Trim inside always retracts latchbolt
  • Auxiliary deadlatch
  • Multi-function 8200/R8200/7800 lockbody


Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Construction: Heavy Duty Steel
Lock Function: Mechanical Mortise Lock - 04: Storeroom or Closet
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate: 8" (203mm) x 1-1⁄4" (31mm)
Strike: ANSI Standard A115.1; curved lip, non-handed
Strike Height: 4-7/8"
Frame Inner Dimension Requirements: 8”L x 1-1/2”W x 1-1/2”D
Bolt Diameter: 3/4"
Bolt Throw: 1"
Stile: 4-1/2"
Rose & Lever: Standard LN Rose and L Lever
Cylinder:
1-1/8" Brass SFIC (not included)
Keyway: 6 or 7 Pin SFIC
Finish: 26D - Satin Chrome Plated
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 10-Year Manufacturer Warranty
