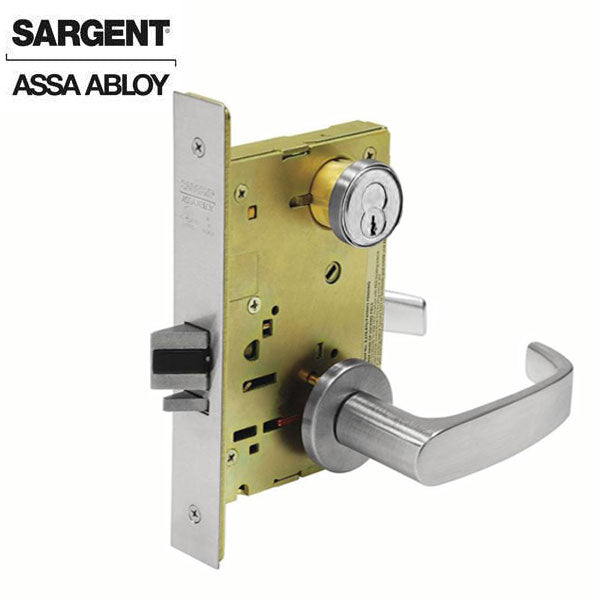

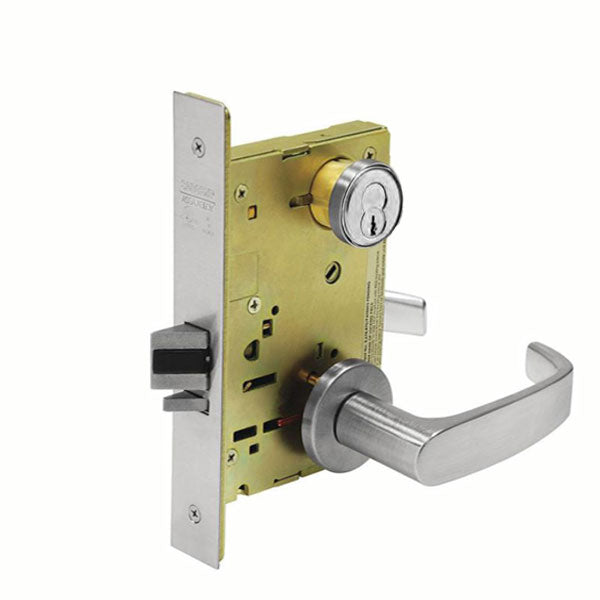

Sargent - 8204 - Mechanical Mortise Lock - Storeroom - 7-Pin Construction Core - O Rose/NJ Lever - Keyed Alike - Satin Chrome - Grade 1 - UHS Hardware
Sargent - 8204 - Mechanical Mortise Lock - Storeroom - 7-Pin Construction Core - O Rose/NJ Lever - Keyed Alike - Satin Chrome - Grade 1 - UHS Hardware

Sargent - 8204 - Mechanical Mortise Lock - Storeroom - 7-Pin Construction Core - O Rose/NJ Lever - Keyed Alike - Satin Chrome - Grade 1

Available to Order
SKU: SRG-727P-11-8204-ONJ-KA-US26D
NSID: 31193

Please Note: This product has a lead time

$513.43
$616.12
$513.43

The Sargent 727P-11-8205 Office or Entry mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. Comes with a 7-Pin Removable Construction Core. This allows a construction crew to have temporary keys made to gain entry, and then as soon as a permanent option is needed, it is easily removable. Permanent Core Not Included

Storeroom: Key outside retracts latch-bolt; Trim inside always retracts latch-bolt, trim outside remains locked.

Features

  • Strong and Reliable
  • Pre-assembled components make installation fool-proof
  • Lock easily re-handed without removing parts or opening the lock case
  • Only 30 degrees of lever rotation required to retract latch-bolt for easy operation
  • Lock accepts XC-SFIC (7-pin, removable core)
  • Provided with 7-pin keyed construction core
  • XC-SFIC permanent core ordered separately
  • Key outside retracts latch-bolt, also locks & unlocks outside trim
  • Trim inside always retracts latch-bolt, trim outside remains locked
  • Auxiliary dead-latch


Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Construction: Heavy Duty Steel
Lock Function: 04 - Storeroom
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate: 8" (203mm) x 1-1⁄4" (31mm)
Strike: ANSI Standard A115.1; curved lip, non-handed
Strike Height: 4-7/8"
Frame Inner Dimension Requirements: 8”L x 1-1/2”W x 1-1/2”D
Bolt Diameter: 3/4”
Bolt Throw: 1”
Stile: 4-1/2"
Rose & Lever: O Rose and NJ Lever
Cylinder:
11 - Standard Construction Core Provided
Permanent Cylinder: Sold Separately
Keyway: 7 Pin XC Keyway
Keying: Keyed Alike
Finish: 26D-Satin Chrome Plated
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 10-Year Manufacturer Warranty
