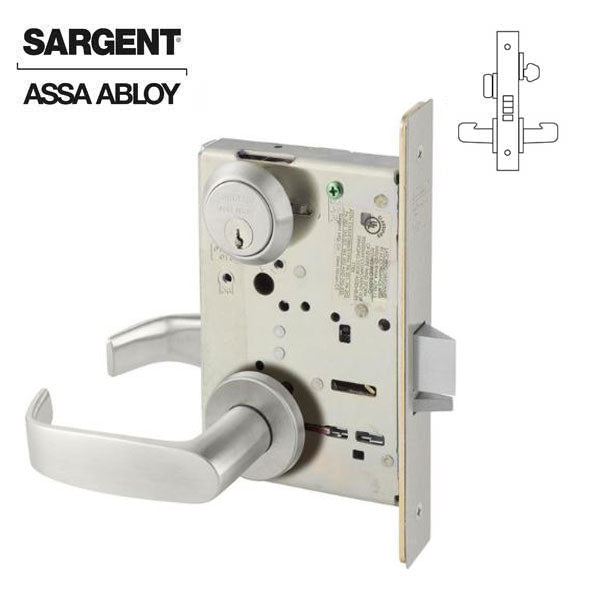

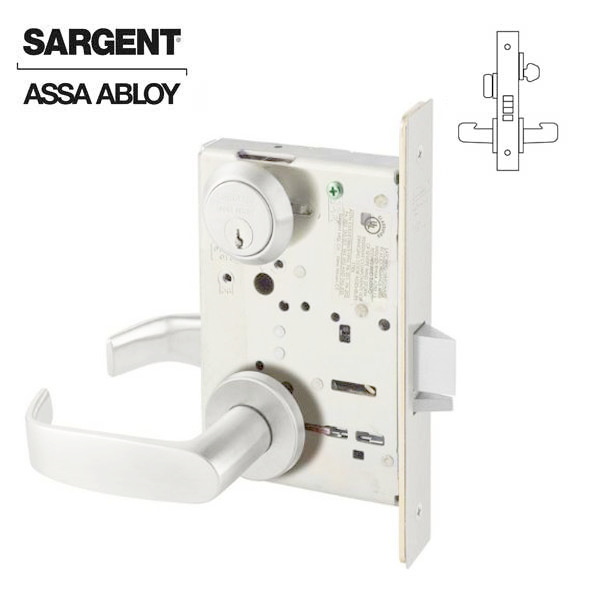

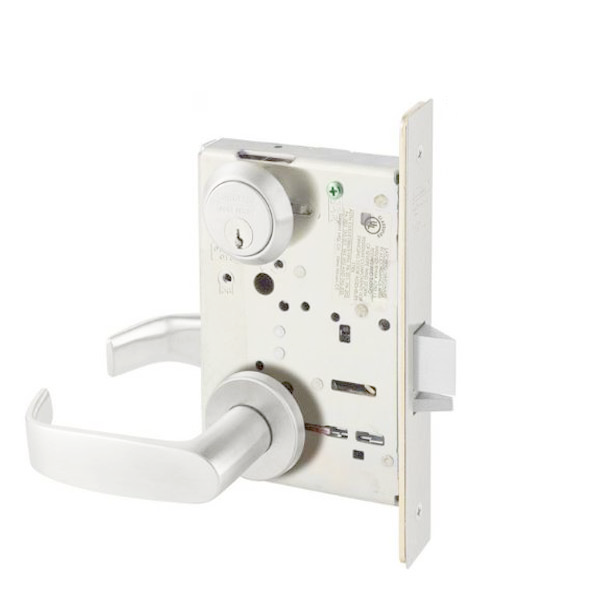

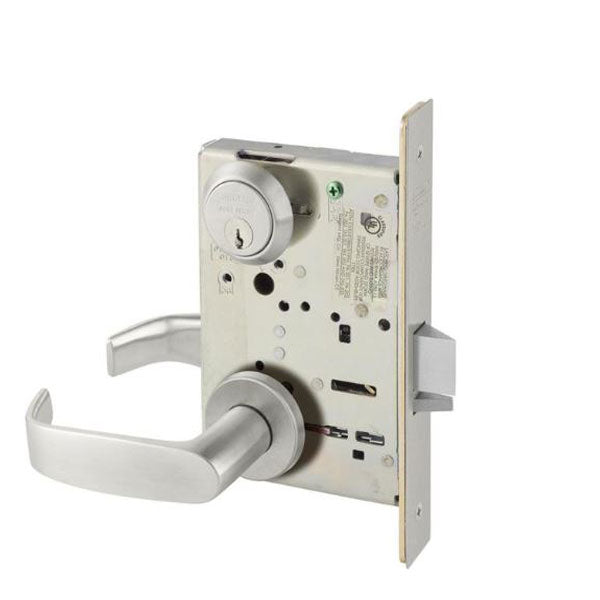

Sargent - 8205 - Mechanical Mortise Lock - LN Rose / L Lever - Office/Entry - LA Keyway - 0 Bitted Core - Optional Finish - Fire rated -Grade 1
Available to Order
SKU:
SRG-8205-LNL-LA-32D
NSID:
31945
37285
- $493.01
-
$612.00 - $493.01
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
SRG-8205-LNL-LA-XXX
The Sargent 8205-LNL-LA Office or Entry mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.
Office or Entry lock: Key outside retracts latch-bolt, also locks and unlocks outside trim; Trim inside always retracts latch-bolt, trim outside remains locked; Thumb-turn inside locks and unlocks outside trim.
Features
- Strong and Reliable
- Pre-assembled components make installation fool-proof
- Lock easily re-handed without removing parts or opening the lock case
- Only 30 degrees of lever rotation required to retract latch-bolt for easy operation
- Key outside retracts latch-bolt, also locks & unlocks outside trim
- Trim inside always retracts latch-bolt, trim outside remains locked
- Auxiliary dead-latch
- Multi-function 8200/R8200/7800 lock-body
- Exceeds Grade 1 requirements
Specifications
| Construction: | Heavy Duty Steel |
| Lock Function: | Mechanical Mortise Lock - 05: Office or Entry |
| Door Thickness: | 1-3/4" (44mm) |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | 8" (203mm) x 1-1⁄4" (31mm) |
| Strike: | ANSI Standard A115.1; curved lip, non-handed |
| Strike Height: | 4-7/8" |
| Frame Inner Dimension Requirements: | 8”L x 1-1/2”W x 1-1/2”D |
| Bolt Diameter: | 3/4” |
| Bolt Throw: | 1” |
| Stile: | 4-1/2" |
| Rose & Lever: | Standard LN Rose and L Lever |
| Cylinder: |
0 Bitted core |
| Keyway: | LA Keyway |
| Finish: | 26D Satin Chrome, 32D - Stainless Steel |
| Fire Rated: | 3 Hours |
| Certifications: | ANSI/BHMA A156.13, UL/UL Listed, UL10C, ADA |
| Warranty: | 10-Year Manufacturer Warranty |
