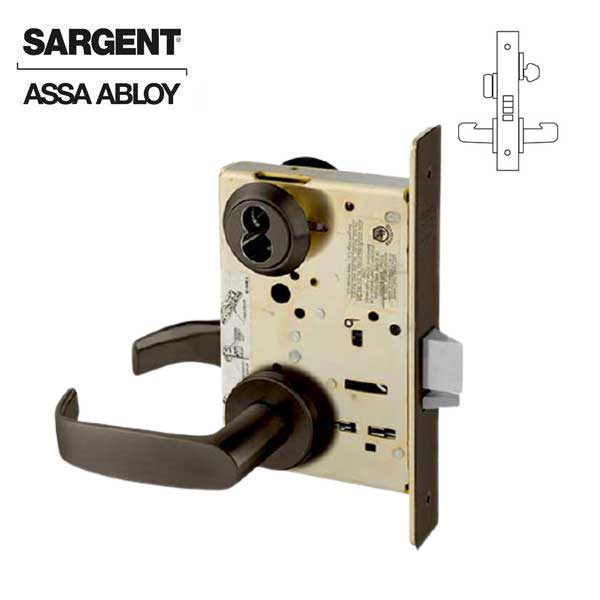

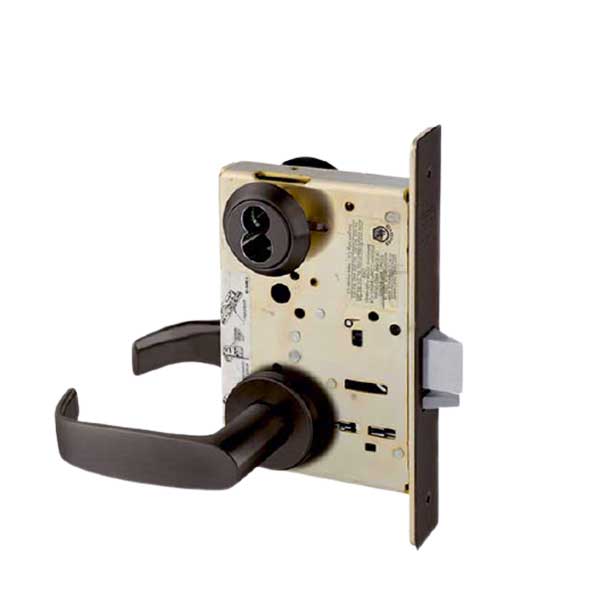

*Discontinued* Sargent - 8205 - Mechanical Mortise Lock - LN Rose / L Lever - Office/Entry - SFIC - 10BE - Dark Oxidized Satin Bronze - Grade 1
Out of Stock
NSID:
24670
- $490.00
-
$588.00 - $490.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
SRG-70-8205-LNL-10BE
The Sargent 8205-LNL-10BE Office or Entry mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.
Office or Entry lock: Key outside retracts latch-bolt, also locks and unlocks outside trim; Trim inside always retracts latch-bolt, trim outside remains locked; Thumb-turn inside locks and unlocks outside trim.
Features
- Strong and Reliable
- Pre-assembled components make installation fool-proof
- Lock easily re-handed without removing parts or opening the lock case
- Only 30 degrees of lever rotation required to retract latch-bolt for easy operation
- Key outside retracts latch-bolt, also locks & unlocks outside trim
- Trim inside always retracts latch-bolt, trim outside remains locked
- Auxiliary dead-latch
- Multi-function 8200/R8200/7800 lock-body
- Exceeds Grade 1 requirements
- $490.00
-
$588.00 - $490.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Construction: | Heavy Duty Steel |
| Lock Function: | Mechanical Mortise Lock - Office or Entry - Outside locked/Inside Unlocked |
| Door Thickness: | 1-3/4" (44mm) |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | 8" (203mm) x 1-1⁄4" (31mm) |
| Strike: | ANSI Standard A115.1; curved lip, non-handed |
| Strike Height: | 4-7/8" |
| Frame Inner Dimension Requirements: | 8”L x 1-1/2”W x 1-1/2”D |
| Bolt Diameter: | 3/4” |
| Bolt Throw: | 1” |
| Stile: | 4-1/2" |
| Rose & Lever: | Standard LN Rose and L Lever |
| Cylinder: |
1-1/8" Brass SFIC (not included) |
| Keyway: | 6 Pin SFIC |
| Finish: | 10BE - Dark Oxidized Satin Bronze, Equivalent |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 10-Year Manufacturer Warranty |
