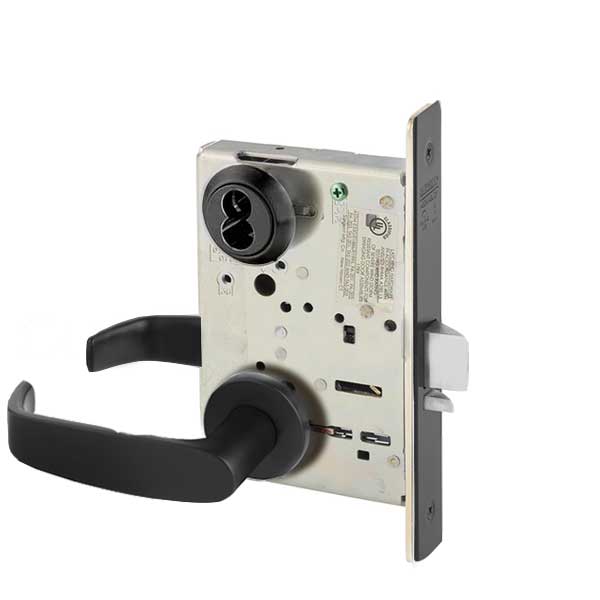

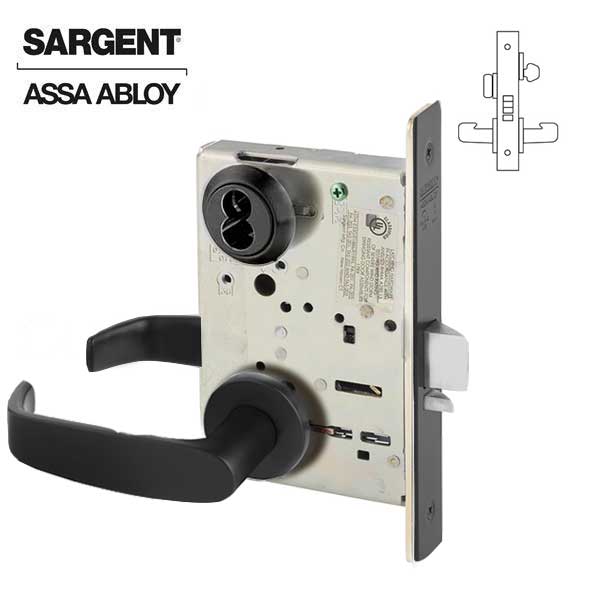

*Discontinued* Sargent - 8205 - Mechanical Mortise Lock - LN Rose / L Lever - Office - SFIC - BSP - Black Suede Powder Coat - Grade 1
- $490.00
-
$588.00 - $490.00
- Unit price
- per
SRG-70-8205-LNL-BSP
The Sargent 8205-LNL-BSP Storeroom or Closet mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.
Features
- Key outside retracts latchbolt
- Trim outside locked at all times
- Trim inside always retracts latchbolt
- Auxiliary deadlatch
- Multi-function 8200/R8200/7800 lockbody
-
- $490.00
-
$588.00 - $490.00
- Unit price
- per
Description
xSpecifications
Construction: | Heavy Duty Steel |
Lock Function: | Mechanical Mortise Lock - 04: Storeroom or Closet |
Door Thickness: | 1-3/4" (44mm) |
Backset: | 2-3/4" (70mm) |
Faceplate: | 8" (203mm) x 1-1⁄4" (31mm) |
Strike: | ANSI Standard A115.1; curved lip, non-handed |
Strike Height: | 4-7/8" |
Frame Inner Dimension Requirements: | 8”L x 1-1/2”W x 1-1/2”D |
Bolt Diameter: | 3/4" |
Bolt Throw: | 1" |
Stile: | 4-1/2" |
Rose & Lever: | Standard LN Rose and L Lever |
Cylinder: |
1-1/8" Brass SFIC (not included) |
Keyway: | 6 or 7 Pin SFIC |
Finish: | BSP - Black Suede Powder Coat |
Certifications: | UL / cUL Listed for 3-Hour Doors |
Warranty: | 10-Year Manufacturer Warranty |
Downloads
