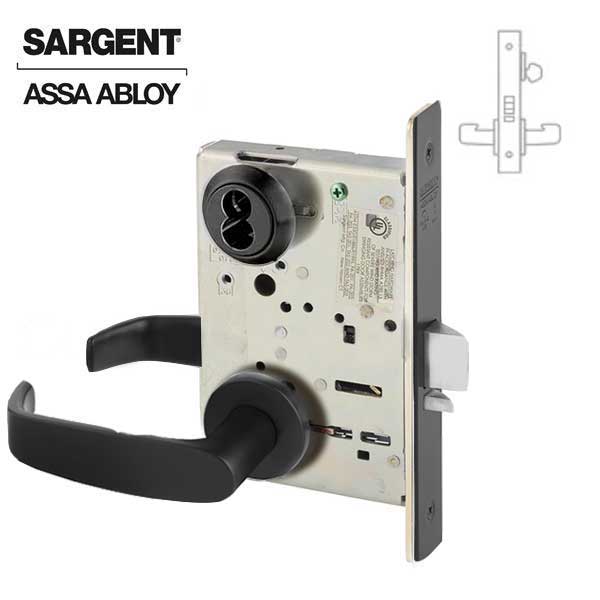

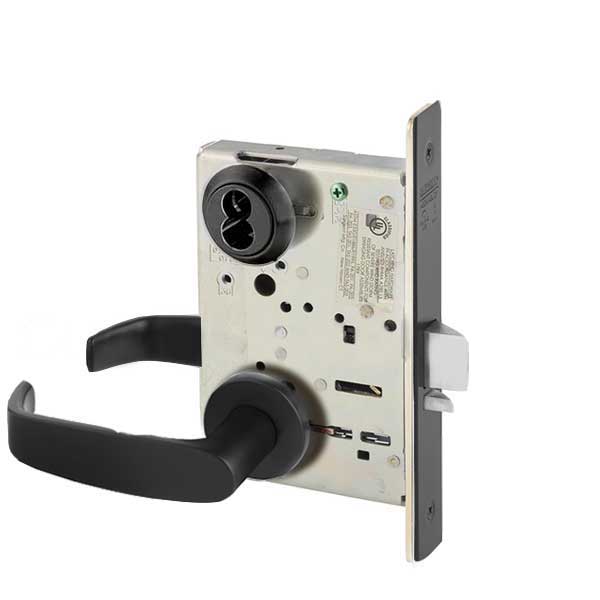

Sargent - 8237 - Mechanical Mortise Lock - LN Rose / L Lever - Classroom - LFIC - BSP - Black Suede Powder Coat - Grade 1
Sargent - 8237 - Mechanical Mortise Lock - LN Rose / L Lever - Classroom - LFIC - BSP - Black Suede Powder Coat - Grade 1
Sargent - 8237 - Mechanical Mortise Lock - LN Rose / L Lever - Classroom - LFIC - BSP - Black Suede Powder Coat - Grade 1
Sargent - 8237 - Mechanical Mortise Lock - LN Rose / L Lever - Classroom - LFIC - BSP - Black Suede Powder Coat - Grade 1
Sargent - 8237 - Mechanical Mortise Lock - LN Rose / L Lever - Classroom - LFIC - BSP - Black Suede Powder Coat - Grade 1

Sargent - 8237 - Mechanical Mortise Lock - LN Rose / L Lever - Classroom - LFIC - BSP - Black Suede Powder Coat - Grade 1

$520.00 $624.00
Availability: Out of Stock
Wishlist
  • Product SKU: SRG-63-8237-LNL-BSP
  • NSID: 24695
  • SRG-63-8237-LNL-BSP

    The Sargent 63-8237-LNL-BSP Classroom mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

    Features

    • Strong and Reliable
    • Pre-assembled components make installation fool-proof
    • Lock easily re-handed without removing parts or opening the lock case
    • Only 30 degrees of lever rotation required to retract latch-bolt for easy operation
    • Key outside retracts latchbolt, also locks and unlocks outside trim
    • Trim inside always retracts latchbolt
    • Auxiliary deadlatch
    • Multi-function 8200/R8200/7800 lockbody

    $520.00


Specifications

Construction: Heavy Duty Steel
Lock Function: Mechanical Mortise Lock : 37 - Classroom
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate:  8" (203mm) x 1-1⁄4" (31mm)
Strike: ANSI Standard A115.1; curved lip, non-handed
Strike Height: 4-7/8"
Frame Inner Dimension Requirements:  8”L x 1-1/2”W x 1-1/2”D
Bolt Diameter: 3/4”
Bolt Throw: 1”
Stile: 4-1/2"
Rose & Lever: Standard LN Rose and L Lever
Cylinder:
1-1/8" Brass LFIC
Keyway: 6 Pin LFIC
Finish: BSP - Black Suede Powder Coat
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 10-Year Manufacturer Warranty



Downloads

SRG-63-8237-LNL-BSP

The Sargent 63-8237-LNL-BSP Classroom mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

Features

  • Strong and Reliable
  • Pre-assembled components make installation fool-proof
  • Lock easily re-handed without removing parts or opening the lock case
  • Only 30 degrees of lever rotation required to retract latch-bolt for easy operation
  • Key outside retracts latchbolt, also locks and unlocks outside trim
  • Trim inside always retracts latchbolt
  • Auxiliary deadlatch
  • Multi-function 8200/R8200/7800 lockbody


Specifications

Construction: Heavy Duty Steel
Lock Function: Mechanical Mortise Lock : 37 - Classroom
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate:  8" (203mm) x 1-1⁄4" (31mm)
Strike: ANSI Standard A115.1; curved lip, non-handed
Strike Height: 4-7/8"
Frame Inner Dimension Requirements:  8”L x 1-1/2”W x 1-1/2”D
Bolt Diameter: 3/4”
Bolt Throw: 1”
Stile: 4-1/2"
Rose & Lever: Standard LN Rose and L Lever
Cylinder:
1-1/8" Brass LFIC
Keyway: 6 Pin LFIC
Finish: BSP - Black Suede Powder Coat
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 10-Year Manufacturer Warranty



Downloads
