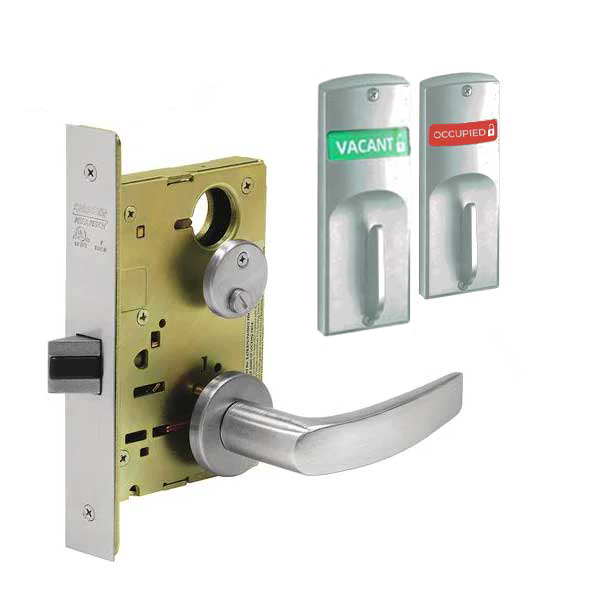

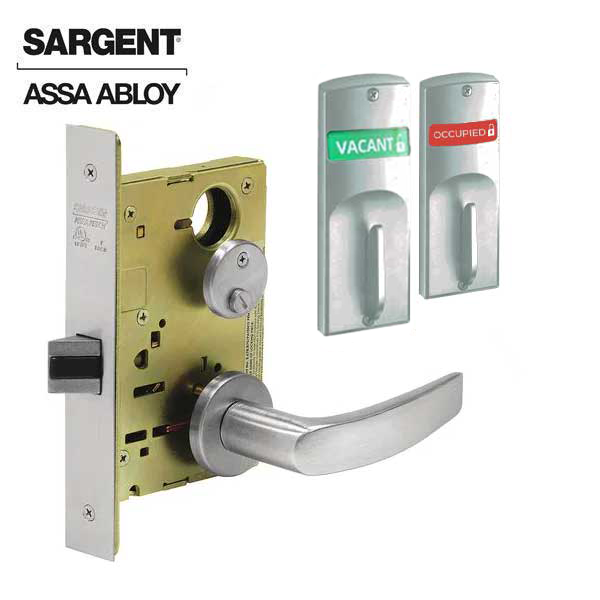

Sargent - 8265 - Mechanical Mortise Lock - LN Rose / B Lever - Privacy w/ Indicator - 1-3/4" Frame - Satin Chrome - Grade 1
Sargent - 8265 - Mechanical Mortise Lock - LN Rose / B Lever - Privacy w/ Indicator - 1-3/4" Frame - Satin Chrome - Grade 1
Sargent - 8265 - Mechanical Mortise Lock - LN Rose / B Lever - Privacy w/ Indicator - 1-3/4" Frame - Satin Chrome - Grade 1
Sargent - 8265 - Mechanical Mortise Lock - LN Rose / B Lever - Privacy w/ Indicator - 1-3/4" Frame - Satin Chrome - Grade 1
Sargent - 8265 - Mechanical Mortise Lock - LN Rose / B Lever - Privacy w/ Indicator - 1-3/4" Frame - Satin Chrome - Grade 1

Sargent - 8265 - Mechanical Mortise Lock - LN Rose / B Lever - Privacy w/ Indicator - 1-3/4" Frame - Satin Chrome - Grade 1

$590.00 $708.00
Availability: Available
Wishlist
  • Product SKU: SRG-V20-8265-LNB-26D
  • NSID: 24465
  • SRG-V20-8265-LNB-26D

    The 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.

    These Indicators can be used in a variety of applications and are most commonly used to identify occupancy or display the locked/unlocked status of a room.

    NOTE: This item is not available for next day shipping

    Features:

    • Strong and Reliable
    • Pre-assembled components make installation fool-proof
    • Lock easily re-handed without removing parts or opening the lock case
    • Only 30 degrees of lever rotation required to retract latchbolt for easy operation
    • Privacy Function with Indicator - Both sides always unlocked except when inside thumbturn is thrown
    • Exceeds Grade 1 requirements



    $590.00
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Construction: Heavy Duty Steel
Lock Function: Mechanical Mortise Lock - Privacy - Outside Unlocked / Inside Thumbturn Lock
Door Thickness: 1-3/4"
Backset: 2-3/4" (70mm)
Faceplate:  8”L x 1-1/4”W
Strike: ANSI 1-1/4" Standard; Curved lip, non-handed
Strike Height: 4-7/8"
Frame Inner Dimension Requirements:  8”L x 1-1/2”W x 1-1/2”D
Bolt Diameter: 3/4”
Bolt Throw: 1”
Stile: 4-3/4"
Rose & Lever: Standard LN Rose and B Lever
Cylinder:
Thumbturn
Indicator: Outside - Green (Vacant) /Red (Occupied)
Finish: 626 - Satin Chrome
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 10-Year Manufacturer Warranty



Downloads:

SRG-V20-8265-LNB-26D

The 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.

These Indicators can be used in a variety of applications and are most commonly used to identify occupancy or display the locked/unlocked status of a room.

NOTE: This item is not available for next day shipping

Features:

  • Strong and Reliable
  • Pre-assembled components make installation fool-proof
  • Lock easily re-handed without removing parts or opening the lock case
  • Only 30 degrees of lever rotation required to retract latchbolt for easy operation
  • Privacy Function with Indicator - Both sides always unlocked except when inside thumbturn is thrown
  • Exceeds Grade 1 requirements


Specifications:

Construction: Heavy Duty Steel
Lock Function: Mechanical Mortise Lock - Privacy - Outside Unlocked / Inside Thumbturn Lock
Door Thickness: 1-3/4"
Backset: 2-3/4" (70mm)
Faceplate:  8”L x 1-1/4”W
Strike: ANSI 1-1/4" Standard; Curved lip, non-handed
Strike Height: 4-7/8"
Frame Inner Dimension Requirements:  8”L x 1-1/2”W x 1-1/2”D
Bolt Diameter: 3/4”
Bolt Throw: 1”
Stile: 4-3/4"
Rose & Lever: Standard LN Rose and B Lever
Cylinder:
Thumbturn
Indicator: Outside - Green (Vacant) /Red (Occupied)
Finish: 626 - Satin Chrome
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 10-Year Manufacturer Warranty
