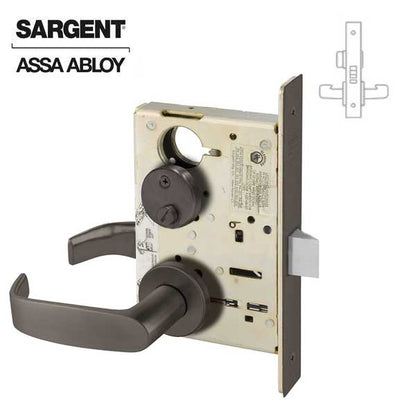

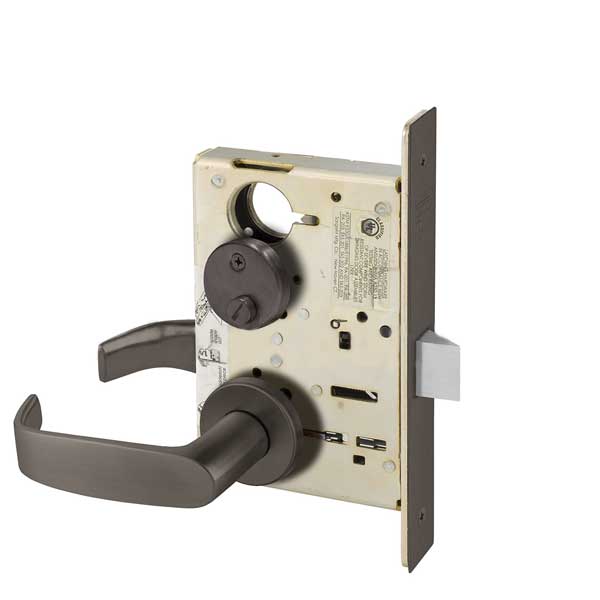

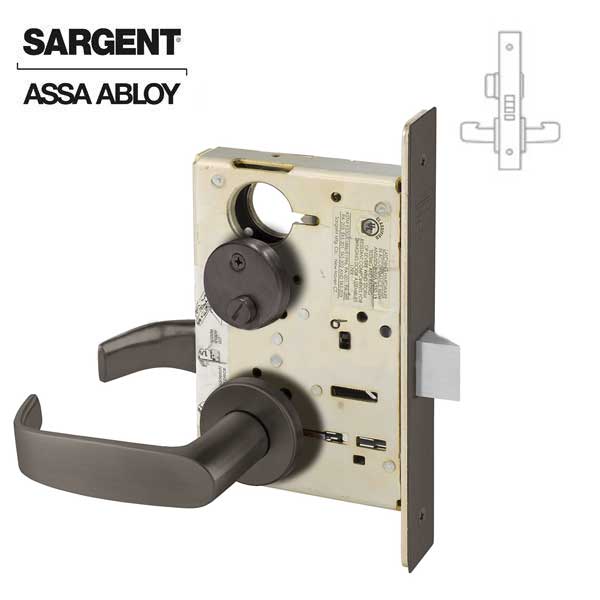

Sargent - 8265 - Mechanical Mortise Lock - LN Rose / L Lever - Privacy - 10BE - Dark Oxidized Satin Bronze - Grade 1
Available to Order
SKU:
SRG-8265-LNL-10BE
NSID:
24679
- $450.00
-
$540.00 - $450.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Sargent 8265-LNL-10BE Privacy mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.
Features
- Strong and Reliable
- Pre-assembled components make installation fool-proof
- Lock easily re-handed without removing parts or opening the lock case
- Only 30 degrees of lever rotation required to retract latch-bolt for easy operation
- Trim outside retracts latchbolt except when locked by thumbturn
- Trim inside retracts latchbolt and unlocks outside trim
- Emergency release locks/unlocks trim outside - by coin, screwdriver or Emergency key (14-0057) ordered separately
- Thumbturn locks and unlocks trim outside
- Closing the door will unlock outside trim
Specifications
| Construction: | Heavy Duty Steel |
| Lock Function: | 65 - Privacy Bedroom or Bath |
| Door Thickness: | 1-3/4" (44mm) |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | 8" (203mm) x 1-1⁄4" (31mm) |
| Strike: | ANSI Standard A115.1; curved lip, non-handed |
| Strike Height: | 4-7/8" |
| Frame Inner Dimension Requirements: | 8”L x 1-1/2”W x 1-1/2”D |
| Stile: | 4-1/2" |
| Rose & Lever: | Standard LN Rose and L Lever |
| Cylinder: |
1-1/8" Brass |
| Keyway: | 6 Pin |
| Finish: | 10 BE - Dark Oxidized Satin Bronze |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 10-Year Manufacturer Warranty |
