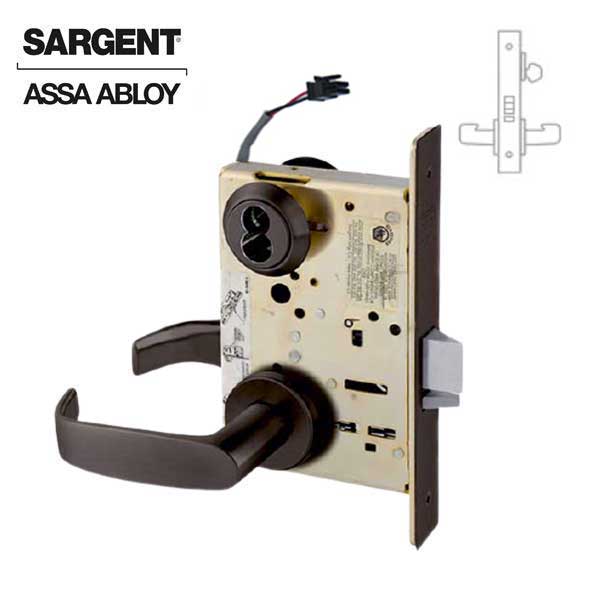

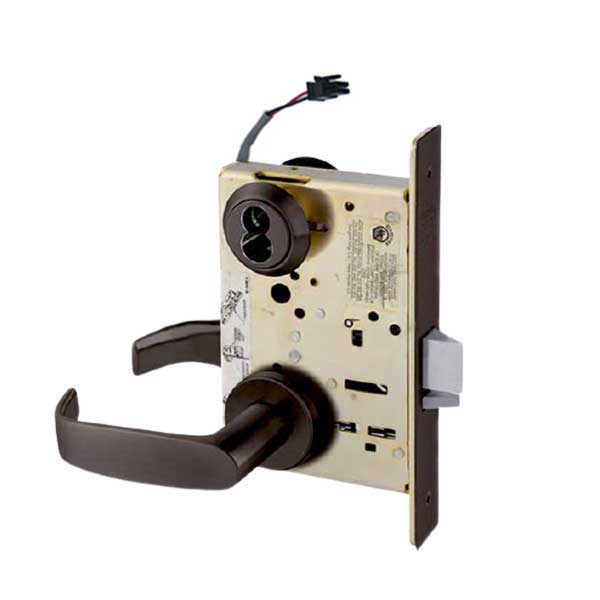

Sargent - 8270 - Electromechanical Mortise Lock - LN Rose / L Lever - Fail Safe - LFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1
Sargent - 8270 - Electromechanical Mortise Lock - LN Rose / L Lever - Fail Safe - LFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1
Sargent - 8270 - Electromechanical Mortise Lock - LN Rose / L Lever - Fail Safe - LFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1
Sargent - 8270 - Electromechanical Mortise Lock - LN Rose / L Lever - Fail Safe - LFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1
Sargent - 8270 - Electromechanical Mortise Lock - LN Rose / L Lever - Fail Safe - LFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1

Sargent - 8270 - Electromechanical Mortise Lock - LN Rose / L Lever - Fail Safe - LFIC - 10BE - Dark Oxidized Satin Bronze - 24V - Grade 1

$570.00 $684.00
Availability: Available
Wishlist
  • Product SKU: SRG-63-8270-LNL-24V-10BE
  • NSID: 24703
  • SRG-63-8270-LNL-24V-10BE

    The Sargent 63-8270-LNL-24V-10BE Fail Safe mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

    Features

    • Strong and Reliable
    • Pre-assembled components make installation fool-proof
    • Lock easily re-handed without removing parts or opening the lock case
    • Only 30 degrees of lever rotation required to retract latch-bolt for easy operation
    • Power ON, Locks outside lever
    • Specify volage: 12VDC or 24VDC (operates from 12-24VDC)
    • Key outside retracts latchbolt
    • Lever outside retracts latchbolt, except when locked
    • Lever outside can only be locked electronically
    • Lever inside always retracts latchbolt
    • Auxiliary deadlatch

    $570.00
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs


Specifications

Construction: Heavy Duty Steel
Lock Function:  70 - Fail Safe
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate:  8" (203mm) x 1-1⁄4" (31mm)
Strike: ANSI Standard A115.1; curved lip, non-handed
Strike Height: 4-7/8"
Frame Inner Dimension Requirements:  8”L x 1-1/2”W x 1-1/2”D
Bolt Diameter: 3/4”
Bolt Throw: 1”
Stile: 4-1/2"
Rose & Lever: Standard LN Rose and L Lever
Cylinder:
1-1/8" Brass LFIC
Keyway: 6 Pin LFIC
Finish: 10BE - Dark Oxidized Satin Bronze, Equivalent
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 10-Year Manufacturer Warranty



Downloads

SRG-63-8270-LNL-24V-10BE

The Sargent 63-8270-LNL-24V-10BE Fail Safe mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

Features

  • Strong and Reliable
  • Pre-assembled components make installation fool-proof
  • Lock easily re-handed without removing parts or opening the lock case
  • Only 30 degrees of lever rotation required to retract latch-bolt for easy operation
  • Power ON, Locks outside lever
  • Specify volage: 12VDC or 24VDC (operates from 12-24VDC)
  • Key outside retracts latchbolt
  • Lever outside retracts latchbolt, except when locked
  • Lever outside can only be locked electronically
  • Lever inside always retracts latchbolt
  • Auxiliary deadlatch


Specifications

Construction: Heavy Duty Steel
Lock Function:  70 - Fail Safe
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate:  8" (203mm) x 1-1⁄4" (31mm)
Strike: ANSI Standard A115.1; curved lip, non-handed
Strike Height: 4-7/8"
Frame Inner Dimension Requirements:  8”L x 1-1/2”W x 1-1/2”D
Bolt Diameter: 3/4”
Bolt Throw: 1”
Stile: 4-1/2"
Rose & Lever: Standard LN Rose and L Lever
Cylinder:
1-1/8" Brass LFIC
Keyway: 6 Pin LFIC
Finish: 10BE - Dark Oxidized Satin Bronze, Equivalent
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 10-Year Manufacturer Warranty
