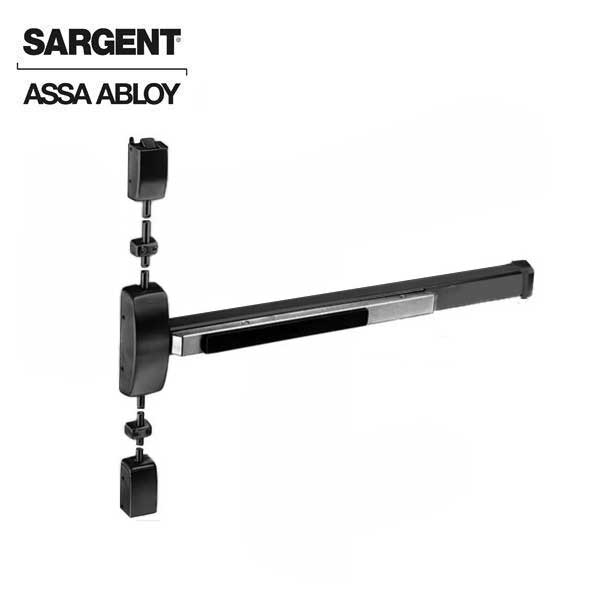

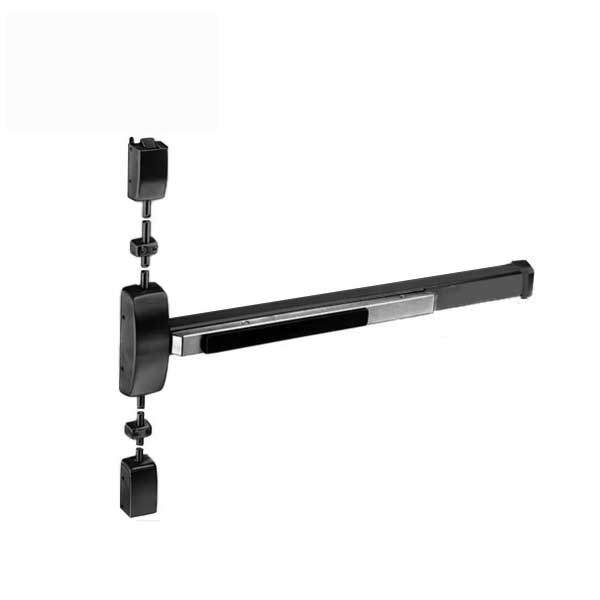

*Discontinued* Sargent - 8710F - Surface Vertical Exit Rod - Passage (Exit Only) - 36" x 84" - Black Suede - Fired Rated - Grade 1

*Discontinued* Sargent - 8710F - Surface Vertical Exit Rod - Passage (Exit Only) - 36" x 84" - Black Suede - Fired Rated - Grade 1

Discontinued
SKU SRG-12-8710F-36Wx84H-EO-655x646-LHR-BSP NSID 29734
$1,156.55$1,387.86On Sale You save $231.31 (17%)
Handing

SRG-12-8710F-36Wx84h-EO-655x646-(L/R)HR-BSP

The 8700 Series offers two point latching with vertical rods mounted to the surface of the door face. It provides a top and bottom latch which can be adjusted via the center case. Meeting ANSI/BHMA Grade 1 standards, the 8700 Series can be used for single and double door applications and is available with hurricane and windstorm resistance certifications. Ideal for schools, offices, and hospitals—for both single door and double door applications with mullions.

Features

  • Two point latching
  • Standard bottom latch compatible with track latch thresholds
  • Single or double door applications
  • Few moving parts
  • ANSI/BHMA Grade 1
  • UL Fire and Panic listed
  • Made from 61% post-consumer recycled content
  • 5 year manufacturers warranty

View full details

Details

Specifications

Device Function 10 - Passage, (Exit Only)
ANSI Function 01 - Passage (no cylinder)
Handing Left Hand Reverse/Right Hand Reverse
Door Type Wood or metal doors
Pushbar Projection 2-1/8" - 3"
Rail Size 33"-36" door widths.
Door Thickness
 1-3/4" to 2-1/4"
Stile 4-1/2" (114mm) minimum stile width
Device center line from 41"(1041mm), 38"(965mm) for elementary schools
Door/Opening Height Must be specified - 120" (3048mm) Max Door Opening - Non-fire rated doors
96" (2438mm) - Max Door Opening - Fire rated doors
Mounting Supplied standard with wood and machine screws
Dogging Hex dogging not available on fire rated
Strike 646 Top Strike
655 Fire Rated Bottom Strike
Center Case Dimensions 8-3/8" (213mm) x 2-5/8" (67mm)
Fire Rated  UL Fire rated for 3 Hours
Certifications ANSI A156.3 – 2008 Grade 1
Manufacturer's Warranty 5 Years
