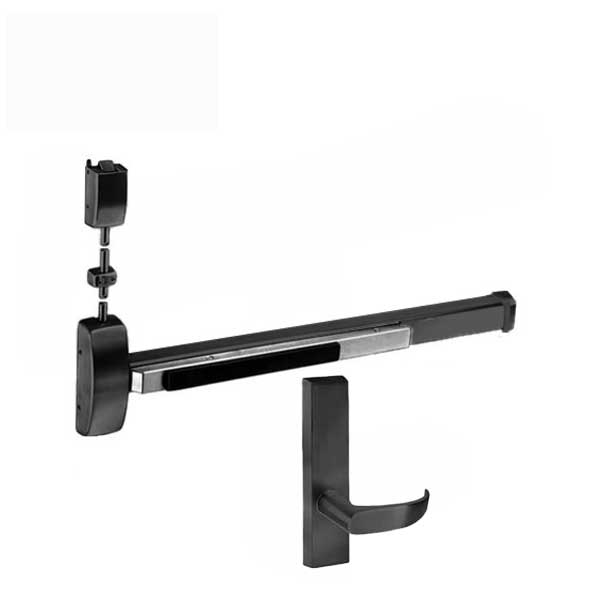

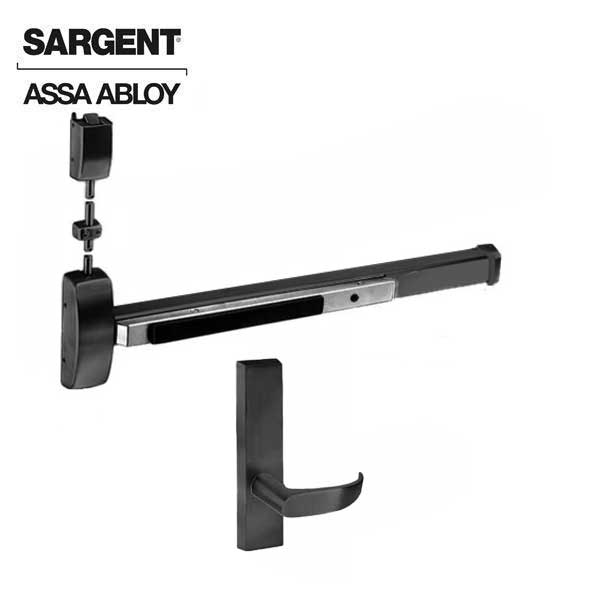

*Discontinued* Sargent - 8715F - Surface Vertical Exit Rod - Top Latch - Passage - 36" x 84" - Black Suede - Fired Rated - Grade 1
*Discontinued* Sargent - 8715F - Surface Vertical Exit Rod - Top Latch - Passage - 36" x 84" - Black Suede - Fired Rated - Grade 1
$1,399.72$1,679.66On Sale
You save $279.94 (17%)
The 8700 Series offers two point latching with vertical rods mounted to the surface of the door face. It provides a top and bottom latch which can be adjusted via the center case. Meeting ANSI/BHMA Grade 1 standards, the 8700 Series can be used for single and double door applications and is available with hurricane and windstorm resistance certifications. Ideal for schools, offices, and hospitals—for both single door and double door applications with mullions.
Features
- Single point top latching
- Top latch projection adjustable through center case
- Tripping potential removed - no bottom strike
- Few moving parts
- ANSI/BHMA Grade 1
- UL Fire and Panic listed
- Made from 61% post-consumer recycled content
- 5 year manufacturers warranty
Details
Specifications
| Device Function | 15 - Passage Only |
| ANSI Function | 14 - Passage Only (no cylinder) |
| Trim | Rim Exit Device with Trim Lever |
| Trim Description | 700 Series ET Trim |
| Lever Style | P Lever - 3" (76mm) Projection |
| Handing | Left Hand Reverse/Right Hand Reverse |
| Door Type | Wood or metal doors |
| Pushbar Projection | 2-1/8" - 3" |
| Rail Size | 33"-36" door widths. |
| Door Thickness |
1-3/4" to 2-1/4" |
| Stile | 4-1/2" (114mm) minimum stile width |
| Device center line from | 41" (1041mm) |
| Door/Opening Height | 120" (3048mm) Max Door Opening |
| Dogging | Hex Key dogging not available on fire rated |
| Strike | 646 Top Strike (Panic and Fire Rated) |
| Center Case Dimensions | 8-3/8" (213mm) x 2-5/8" (67mm) |
| Fire Rated | Optional UL Fire rated for 3 Hours |
| Certifications | ANSI A156.3 – 2008 Grade 1 |
| Manufacturer's Warranty | 5 Years |
