*Discontinued* Sargent - 8813F - Rim Exit Device with Trim Lever - Satin Stainless Steel - SFIC - 36" - Grade 1

*Discontinued* Sargent - 8813F - Rim Exit Device with Trim Lever - Satin Stainless Steel - SFIC - 36" - Grade 1

Discontinued
SKU SRG-70-8813F-ETL-32D NSID 24709
$1,211.84

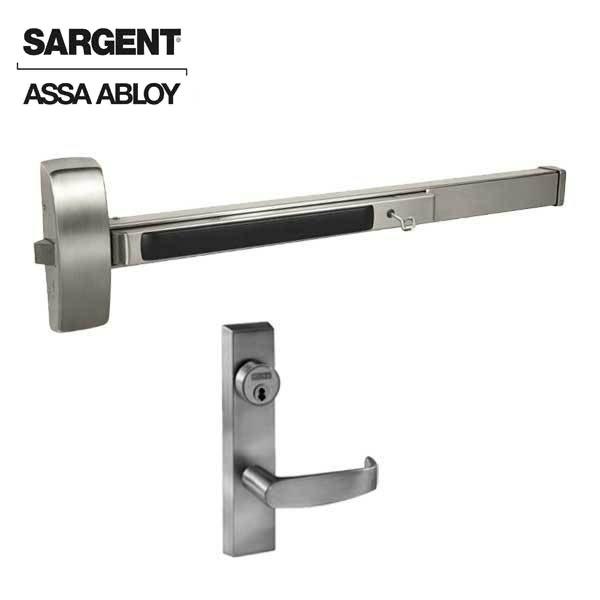

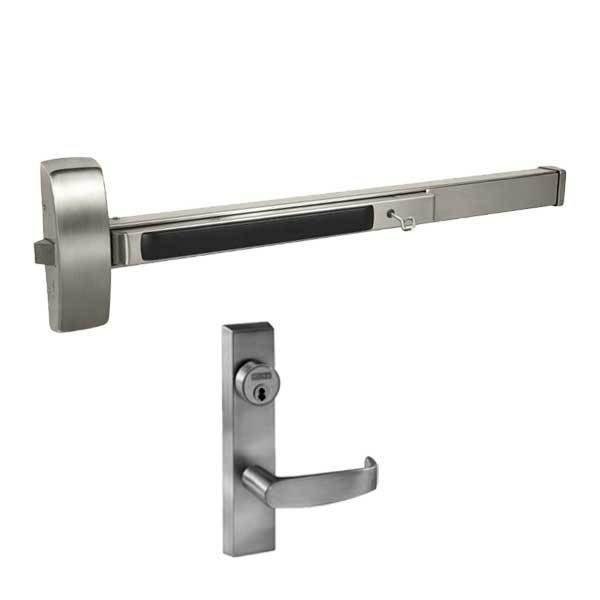

This is a 8813 Rim Exit Device with 700 ET Trim Lever - Accepts SFIC

Designed for standard width stile applications on wood and metal doors, the 8800 Series features a rim bolt that combines quiet operation with solid security. Ideal for schools, offices, and hospitals—for both single door and double door applications with mullions.

Features

  • Designed for standard width stile applications on wood and metal doors
  • Single point rim latching device
  • Modular construction, maintenance-free design
  • Few moving parts
  • ANSI/BHMA Grade 1
  • UL Fire and Panic listed
  • Key outside unlocks/locks trim
  • Accepts SFIC (Small Format Interchangeable Cores) - Not Included
  • Single or double door applications with mullion
  • Made from 61% post-consumer recycled content
  • 5 year manufacturers warranty

View full details

Details

Specifications

Device Function 13 - Key outside unlocks/locks trim
ANSI Function 08 - Key outside unlocks/locks trim
Cylinder Option
 70 - Lock to accept SFIC (6-pin or 7-pin, removable core) and provided with disposable plastic core; SFIC permanent core ordered separately
Trim Rim Exit Device with Trim Lever
Trim Description 700 ET Trim
Lever Style L Lever - 2-1/2" Projection
Trim Size 8-1/16" H x 1-13/16" W
Pushbar Projection 2-1/8" - 3"
Cylinder SFIC (removable core) - Not Included
Latch Bolt Stainless Steel 3/4" Throw
Exit Device length 33" to 36" (84cm to 91cm) No cutting required for 36" (91cm) door
Door Thickness
1-3/4" to 2-1/4"
Stile 4-1/2" (114mm) minimum stile width
Mounting Supplied standard with wood and machine screws
Dogging Hex key dogging standard on non fired rated devices
Strikes 649 Strike supplied standard for panic & fire rated openings
Fire Rated UL Fire rated for 3 Hours
Certifications ANSI A156.3 – 2008 Grade 1

Downloads
Spec Sheet
Installation Instructions
