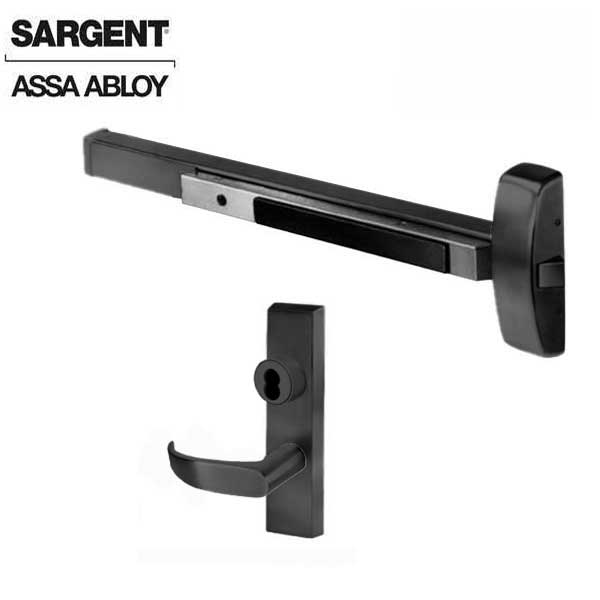

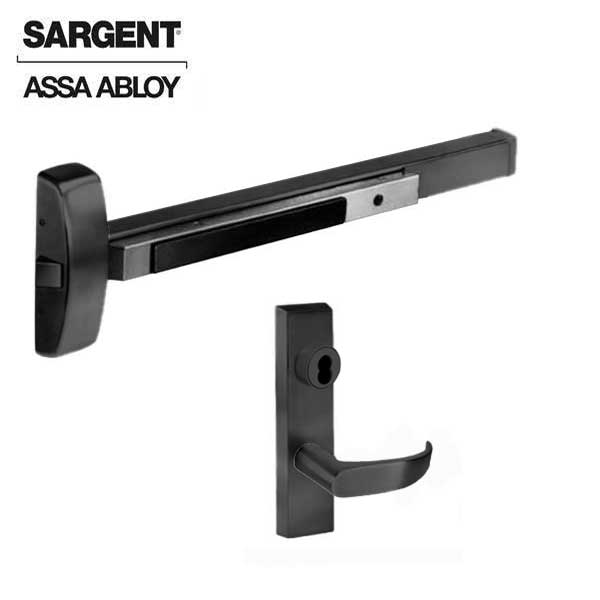

Sargent - 8813F - Rim Exit Rod - Less Cylinder - Entrance - 36" x 84" - Black Suede - Grade 1
Sargent - 8813F - Rim Exit Rod - Less Cylinder - Entrance - 36" x 84" - Black Suede - Grade 1
$1,580.37$1,896.44On Sale
You save $316.07 (17%)
Please Note:
This product has a lead time
Quantity
Couldn't load pickup availability
Designed for standard width stile applications on wood and metal doors, the 8800 Series features a rim bolt that combines quiet operation with solid security. Meeting ANSI/BHMA Grade 1 standards, the 8800 Series is ideal for schools, offices, and hospitals—for both single door and double door applications with mullions.
Features
- Designed for standard width stile applications on wood and metal doors
- Single point rim latching device
- single door & double door applications with mullions
- Opens if Deadbolt Unlocked and Stop Button not set
- Few moving parts
- ANSI/BHMA Grade 1
- UL305 Panic listed
- Made from 61% post-consumer recycled content
- 5 year manufacturers warranty
View full details
Details
Specifications
| Device Function | 13 - Entrance - Outside Keyed. Inside lever rigid. Locked/unlocked by thumbturn. |
| ANSI Function | 08 - Key outside unlocks/locks trim |
| Trim | Rim Exit Device with Trim Lever |
| Trim Description | 700 Series ET Trim |
| Lever Style | P Lever - 3" (76mm) Projection |
| Handing | Left Hand Reverse/Right Hand Reverse |
| Door Type | Wood or metal doors |
| Pushbar Projection | 2-1/8" (54mm) - 3" (76mm) |
| Rail Size | 33"-36" door widths |
| Cylinder | Less Cylinder (No Cylinder Included) |
| Door Thickness |
1-3/4" to 2-1/4" |
| Stile | 4-1/2" (114mm) minimum stile width |
| Device center line from | 41" (1041mm) |
| Dogging | Hex Key dogging standard |
| Strike | 649 Standard |
| Center Case Dimensions | 8-3/8" (213mm) x 2-5/8" (67mm) |
| Fire Rated | Optional UL Fire rated for 3 Hours |
| Certifications | ANSI A156.3 – 2008 Grade 1, UL305 |
| Manufacturer's Warranty | 5 Years |
Downloads
