*Discontinued* Sargent - 8815F ETL - Rim Exit Device with Trim Lever - 32D - Aluminum Finish - Passage - 36"
*Discontinued* Sargent - 8815F ETL - Rim Exit Device with Trim Lever - 32D - Aluminum Finish - Passage - 36"

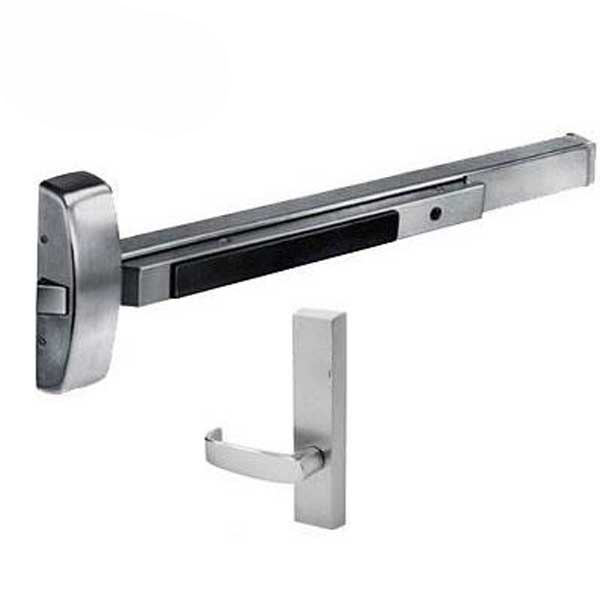

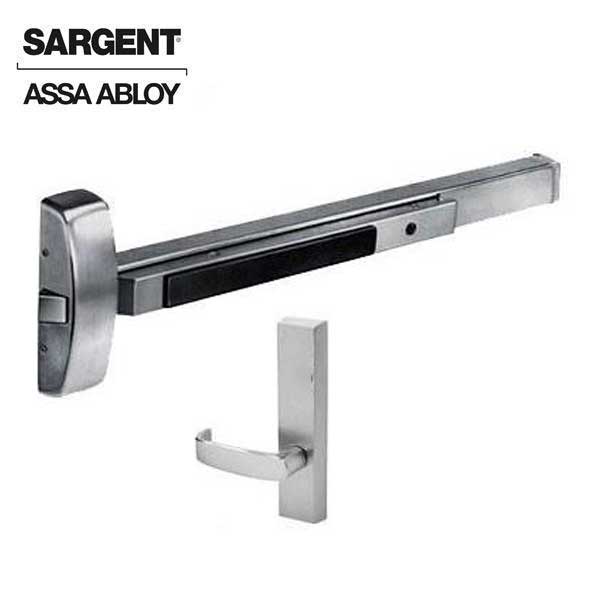

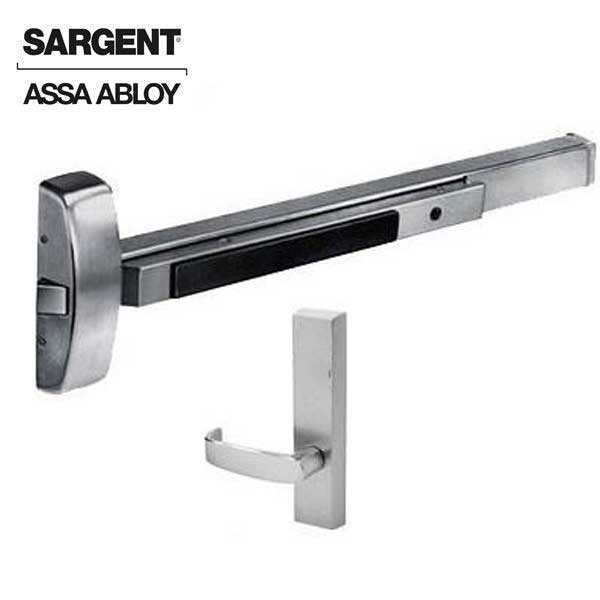

This an 8815 Rim Exit Device with 700 ET Trim Lever - Passage
Designed for standard width stile applications on wood and metal doors, the 8800 Series features a rim bolt that combines quiet operation with solid security. Ideal for schools, offices, and hospitals—for both single door and double door applications with mullions.
- Designed for standard width stile applications on wood and metal doors
- Single point rim latching device
- Modular construction, maintenance-free design
- Few moving parts
- ANSI/BHMA Grade 1
- UL Fire and Panic listed
- Single or double door applications with mullion
- Made from 61% post-consumer recycled content
- 5 year manufacturers warranty
Details
Specifications
| Trim | Rim Exit Device with Trim Lever |
| Trim description | 700 ET Trim L |
| Lever Style | 06 Standard |
| Escutcheon plate size |
8-1/16" (205mm) x 1-13/16" (46mm) x 3/16" (21mm) |
| Projection | 3-9/16" MAX* (90mm) |
| ANSI function | 14 Passage by lever. |
| Device functions | Passage Only |
| Cylinder | No cylinder |
| Exit Device length | 33" to 36" (84cm to 91cm) No cutting required for 36" (91cm) door |
| Door Thickness |
1-3/4" to 2-1/4" |
| Stile | 4-1/2" (114mm) minimum stile width |
| Mounting | Supplied standard with wood and machine screws |
| Dogging | Hex key dogging standard on non fired rated devices |
| Strikes | 649 Strike supplied standard for panic & fire rated openings |
| Fire Rated | Yes 3 Hour |
| Certifications | ANSI A156.3 – 2008 Grade 1. |
