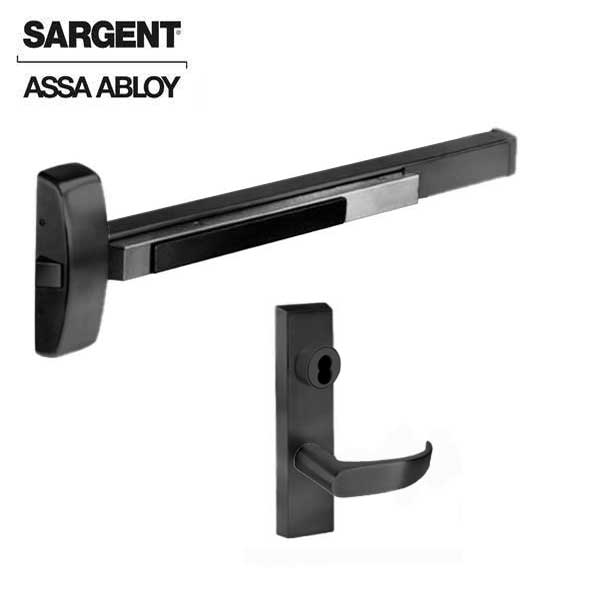

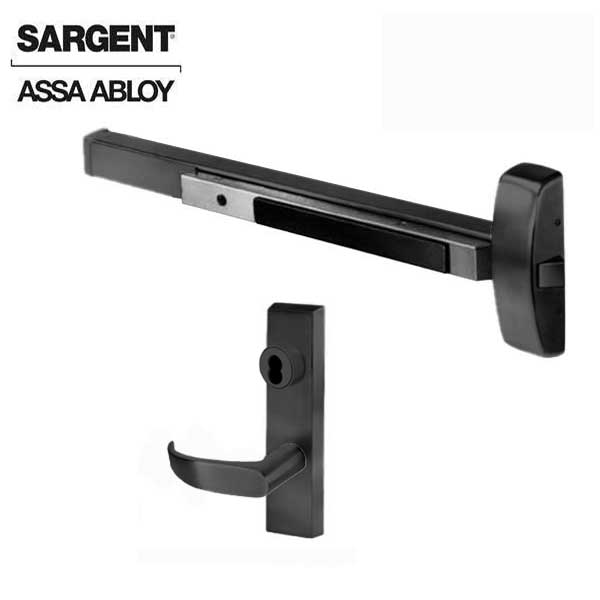

*Discontinued* Sargent - 8876F - Rim Exit Rod - Fail Secure - Less Cylinder - Optional Rail Size - Black Suede - Fired Rated - 24VDC - Grade 1
Out of Stock
SKU:
SRG-LC-8876F-36W-ETP-24V-649-LHR-BSP
NSID:
29738
29736
29741
29737
- $1,279.67
-
$1,535.60 - $1,279.67
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
SRG-LC-12-8876F-36W-ETP-24V-649-RHR-BSP
Designed for standard width stile applications on wood and metal doors, the 8800 Series features a rim bolt that combines quiet operation with solid security. Meeting ANSI/BHMA Grade 1 standards, the 8800 Series can be used for single and double door applications and is available with hurricane and windstorm resistance certifications. Ideal for schools, offices, and hospitals—for both single door and double door applications with mullions.
Features
- Designed for standard width stile applications on wood and metal doors
- Single point rim latching device
- Single door & double door applications with mullions
- Quiet operation and solid security
- Few moving parts
- ANSI/BHMA Grade 1
- UL Fire and Panic listed
- NO left handed reverse Fire rated
- 42" rail size ONLY in RHR & Fire Rated
- Made from 61% post-consumer recycled content
- 5 year manufacturers warranty
- $1,279.67
-
$1,535.60 - $1,279.67
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Device Function | 76 - EU - Fail Secure - Electronically Unlocked - Locks upon Power Loss |
| Trim | Rim Exit Device with Trim Lever (Less Cylinder) |
| Trim Description | 700 Series ET Trim |
| Lever Style | P Lever - 3" (76mm) Projection |
| Handing | Optional |
| Door Type | Metal doors |
| Pushbar Projection | 2-1/8" to 3" |
| Rail Size | Optional |
| Door Thickness |
1-3/4" to 2-1/4" |
| Stile | 4-1/2" (114mm) minimum stile width |
| Device center line from | 41" (1041mm) |
| Dogging | Hex Key dogging not available on fire rated |
| Strike | 649 Standard |
| Center Case Dimensions | 8-3/8" (213mm) x 2-5/8" (67mm) |
| Voltage | 24 VDC |
| Fire Rated | Optional UL Fire rated for 3 Hours |
| Certifications | ANSI A156.3 – 2008 Grade 1, Fire and Panic Listed |
| Manufacturer's Warranty | 5 Years |
