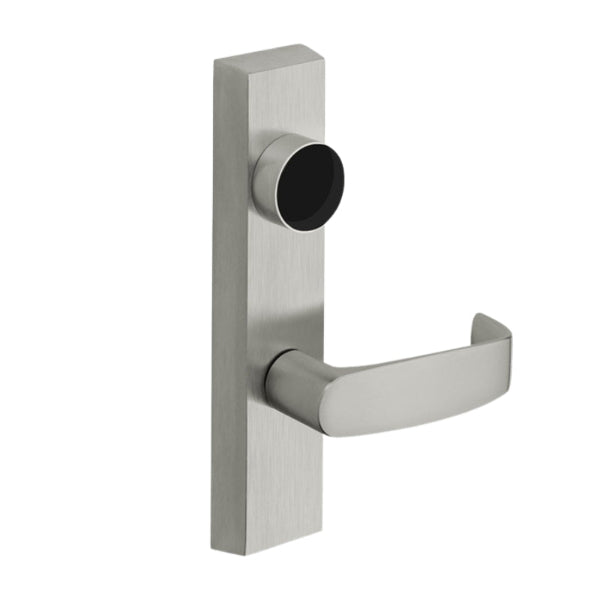

Sargent - LC-776 - Grade 1 - Electrified Exit Device Trim - Fail Secure - Power Off - Locks Lever - Key Retracts Latch - For Rim (8800) and NB8700 Series Devices - Less Cylinder - L Lever - Satin Chrome Finish (26D)
Available to Order
SKU:
SRG-LC-776-8-ETL-12V-RHRB-26D
NSID:
77683
- $1,106.34
-
$1,327.61 - $1,106.34
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The SARGENT LC-776-8-ETL-12V-RHRB-26D is a Grade 1 electrified exit device trim designed for high-security applications. It features a fail-secure function, locking the lever when power is off, while allowing mechanical key override to retract the latch. This trim is compatible with SARGENT's 8800, 8888, 8500, and NB8700 Series Rim Exit Devices.
| Technical Specifications | |
|---|---|
| Model Number | LC-776-8-ETL-12V-RHRB-26D |
| Function | Fail Secure (Power Off Locks Lever; Key Retracts Latch) |
| Voltage | 12 VDC |
| Handing | Right Hand Reverse (RHR) |
| Finish | Satin Chrome (US26D / 626) |
| Lever Style | L Lever |
| Cylinder | Less Cylinder (compatible with #34 Rim Cylinder) |
| Compatibility | SARGENT 8800, 8888, 8500, and NB8700 Series Exit Devices |
| ADA Compliance | Yes |
| Fire Rated | No |
| Reversible | Field Reversible |
| Grade | Grade 1 (ANSI/BHMA A156.3) |
| Trim Plate Height | 8-1/16" |
| Trim Plate Width | 1-13/16" |
| Trim Plate Thickness | 13/16" |
| Lever Projection | 3-9/16" |
| Lever Length | 4-1/2" |
