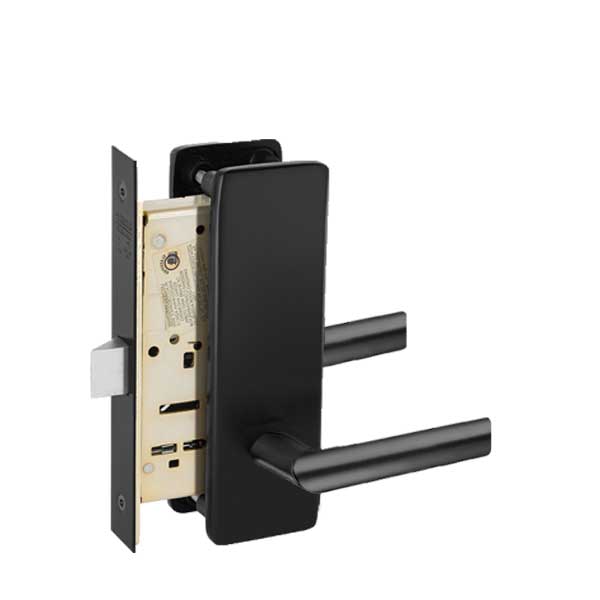

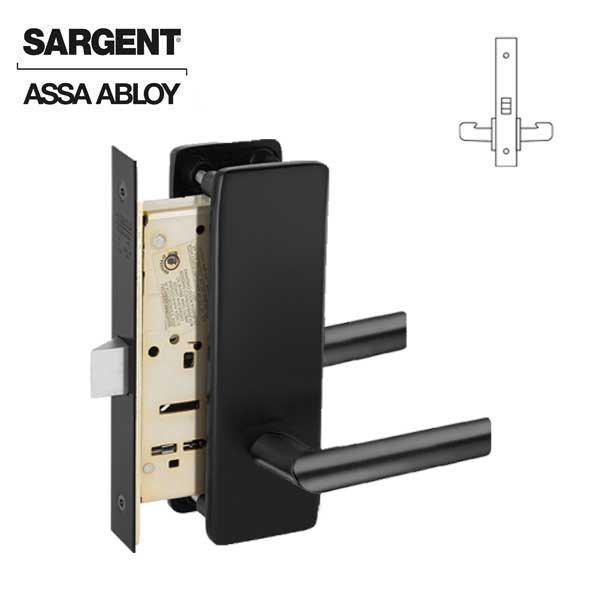

*Discontinued* Sargent - R8215 - Mechanical Mortise Lock - Roseless / MI Lever - Passage - 1-3/4" Frame - Black Suede Powder Coat - Grade 1
*Discontinued* Sargent - R8215 - Mechanical Mortise Lock - Roseless / MI Lever - Passage - 1-3/4" Frame - Black Suede Powder Coat - Grade 1
$596.44$715.73On Sale
You save $119.29 (17%)
The 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.
Features:
- Strong and Reliable
- Pre-assembled components make installation fool-proof
- Lock easily re-handed without removing parts or opening the lock case
- Only 30 degrees of lever rotation required to retract latchbolt for easy operation
- Passage Function - Both sides always unlocked
- Exceeds Grade 1 requirements
Details
Specifications:
| Construction: | Heavy Duty Steel |
| Lock Function: | Mechanical Mortise Lock - Passage - Outside Unlocked / Inside Unlocked |
| Door Thickness: | 1-3/4" |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | 8”L x 1-1/4”W |
| Strike: | ANSI 1-1/4" Standard; Curved lip, non-handed |
| Strike Height: | 4-7/8" |
| Frame Inner Dimension Requirements: | 8”L x 1-1/2”W x 1-1/2”D |
| Bolt Diameter: | 3/4” |
| Bolt Throw: | 1” |
| Stile: | 4-3/4" |
| Rose & Lever: | Roseless and MI Lever |
| Cylinder: |
N/A |
| Finish: | Black Suede Powder Coat |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 10-Year Manufacturer Warranty |
