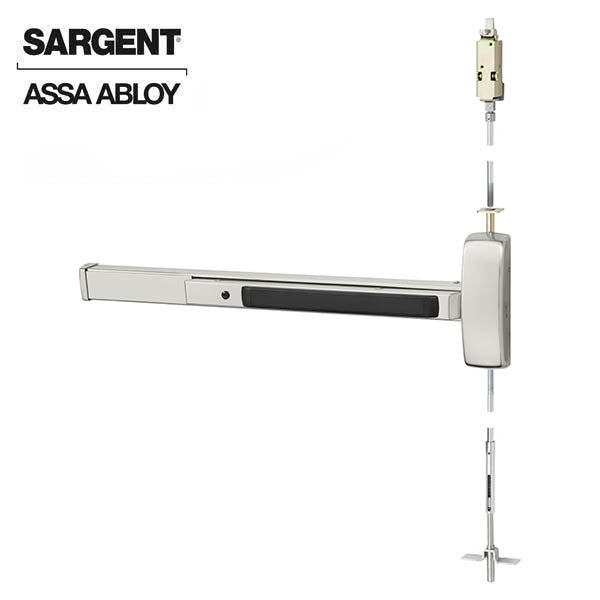

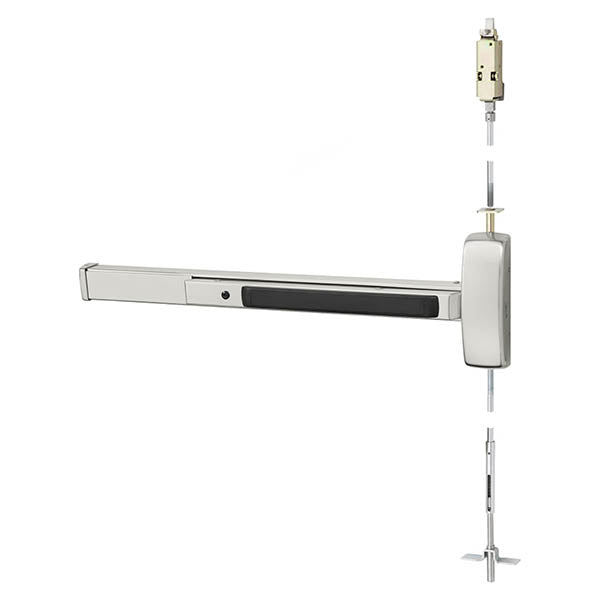

*Discontinued* Sargent - WD8613F - Concealed Vertical Exit Rod - #41 Cylinder - 33" x 36" - RHR - Satin Stainless Steel - Grade 1
*Discontinued* Sargent - WD8613F - Concealed Vertical Exit Rod - #41 Cylinder - 33" x 36" - RHR - Satin Stainless Steel - Grade 1
Designed for standard width single or double doors, the 8600 Series features vertical rods concealed within the door for added security and enhanced aesthetics. Equally suited for single door and double egress applications. Meeting ANSI/BHMA Grade 1 standards, the 8700 Series is available with hurricane and windstorm resistance certifications. Ideal for schools, offices, and hospitals.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Devices are ANSI/BHMA A156 3 - Grade 1
- UL10C (Fire) and UL305 (Panic) listed
Details
Specifications
| Device Function | Key Outside Unlocks/locks Trim #41 Cylinder Supplied |
| Handing | Left Hand Reverse/Right Hand Reverse |
| Door Type | Wood Doors |
| Rail Size | 33"-36" door widths. |
| Handing | Right Hand Reverse |
| Door Thickness |
1-3/4" to 2-1/4" |
| Stile | 4-1/2" (114mm) minimum stile width |
| Device center line from Finished floor | 41"(1041mm), 38"(965mm) for elementary schools |
| Door/Opening Height | 120" (3048mm) Max Door Opening |
| Mounting | Supplied standard with wood and machine screws |
| Dogging | Hex dogging standard |
| Strike | 640 for Top & Bottom Strike |
| Center Case Dimensions | 8-3/8" (213mm) x 2-5/8" (67mm) |
| Certifications | ANSI A156.3 – 2008 Grade 1 |
| Manufacturer's Warranty | 5 Years |
