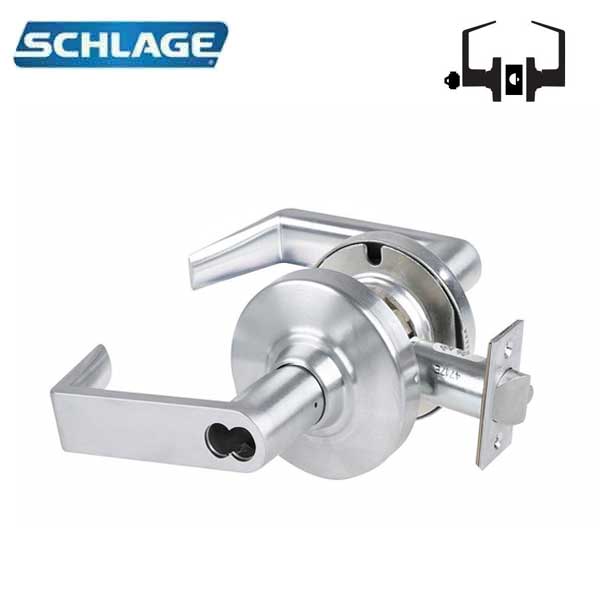

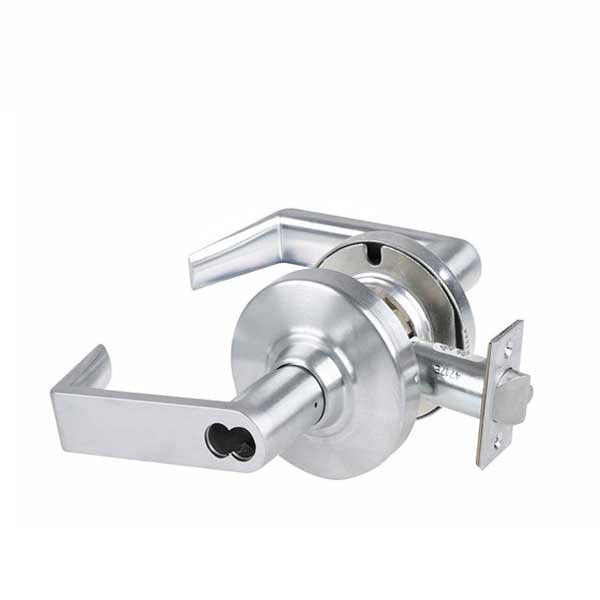

Schlage - ALX80J - Commercial Lever Set - Storeroom - Less FSIC - Satin Chrome - Rhodes Lever - Fire Rated - Grade 2
Available to Order
SKU:
SCH-ALX80J-RHO-626
NSID:
31161
- $202.30
-
$237.18 - $202.30
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Schlage ALX Series is a grade 2 lock unlike any other. As a modular lock, it features a single, patent pending chassis design that supports most functions and all cylinder applications. The lock's ability to be configured on site to meet the functional need let's you avoid problems. You can do more with less, giving you an unprecedented level of flexibility to every aspect of how you use it in your business..
Features
- Significantly exceeds A156.2-2011 Series 4000, Grade 2 cylindrical locks
- Prepped for FSIC cylinder formats
- Fire Rated for 3 Hours
- Key cylinder outside; plain lever inside; deadlatch
- Outside lever always fixed
- Key can retract the latch
- Field selectable Vandlgard® feature
- Inside lever always free for immediate egress
Specifications
| Chassis | |
| Material | Stainless Steel / Zinc |
| Door Thickness | 1 3⁄8" to 1 3⁄4" |
| Trim | |
| Lock Function | Storeroom lock - Outside lever is fixed |
| Handing | Non-Handed |
| Lever | Rhodes Lever |
| Rose | 3 7⁄16" diameter. Brass/Bronze/Zinc |
| Finish | 626 - Satin Chrome |
| Latches | |
| Backset | 2 3⁄4" |
| Faceplate Size | 1 1⁄8" x 2 1⁄4" |
| Bolt | 1⁄2" throw, 7⁄8" bolt , up to 1" housing |
| Strike | ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" |
| Keying | |
| Cylinder | FSIC Prep Less Core Cylinder Not included |
| Fire Rated | 3 Hour Positive pressure |
| Certifications |
ANSI/BHMA, ICC, UL/cUL, ADA, Grade 2 |
| Manufacturer Warranty | 10 years limited |
Dimensions RHODES
Downloads
