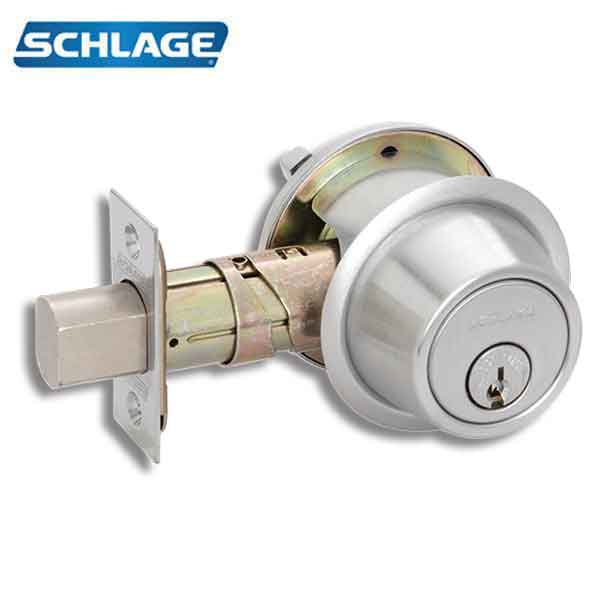

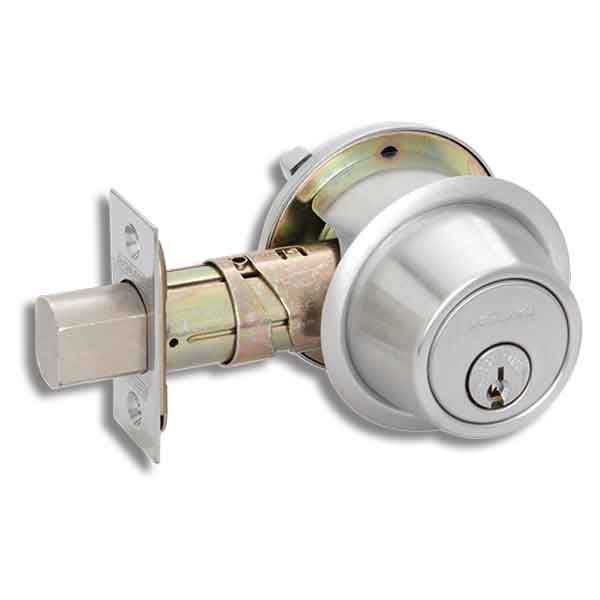

Schlage - B560P - Single Cylinder Deadbolt - Entrance - Triple Option Backset - Satin Chrome - Schlage "C124" Keyway - Grade 2

In Stock
SKU: SCH-B560P-626-C124
NSID: 67168

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$68.52
$82.22
$68.52

The B500-Series deadbolt is a revolutionary deadbolt that delivers higher security, tougher performance and the ultimate in installation versatility. Designed by locksmiths for locksmiths, the B500-Series deadbolt accepts any Schlage cylinders, fits virtually every door you service, enhances lock strength on the jamb side of the door and will change forever the way you look at deadbolts.

Features:

  • Triple Option 2-3/4" or 2-3/8" Adjustable backset with lock-in-place helix design
  • Integrated anti-pry shield protects latch
  • Thicker metal strike back-up on jamb side
  • Standard metal dustbox included
  • Third screw for stronger, deeper anchoring
  • Additional space inside strike box for true deadlatch
  • Deep drawn, single piece steel housing
  • Bolt contains hardened steel pin inside to prevent attack by sawing
  • Tapered front housing that can’t be unscrewed
  • Large, easy-to-use, ADA compliant thumbturn
  • No Lip
  • Metal Jamb (10-094)
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications:

Lock Function: B560P Entrance with Thumbturn
Handing: Non-Handed
Cylinder: Interchangeable 6-Pin Single Cylinder Deadbolt Schlage "C124" Keyway
Door Thickness: 1-3/8" - 1-3/4" (35-44mm)
Backset: Triple Option Adjustable to 2-3/8" - 2-3/4" (60-70mm)
Latch: Brass, 9/16" (14 mm) throw, deadlocking on keyed and  exterior functions.
Bolt: 1" (25mm) Throw
Material: Steel
Strike: 1-1/8” x 2-3/4“ square corner
Finish: Satin Chrome 626
Certifications: Meets or exceeds A156.36 Grade 2 strength and operational requirements, A117.1 Accessibility Code
Warranty: 3 year limited mechanical manufacturer's warranty



Downloads:



Please Note: Bulk price rates are available! Call us at 1-800-878-6604.

Note: Bulk price rates are available! Call us at 1-800-878-6604.

Compatible With

Note: Bulk price rates are available! Call us at 1-800-878-6604.
