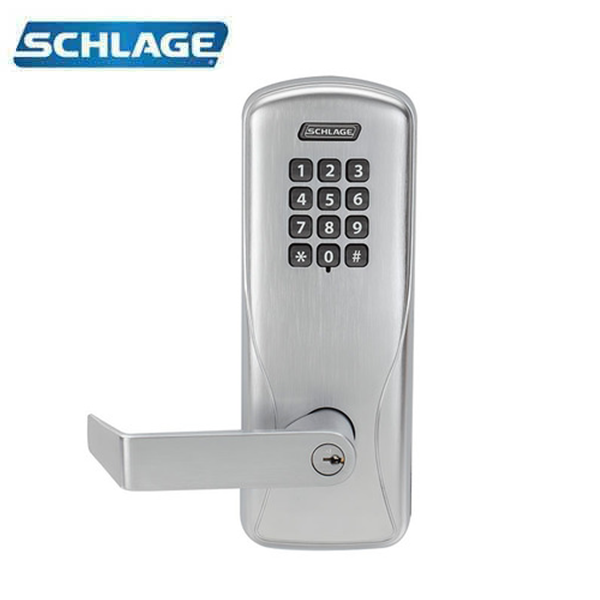

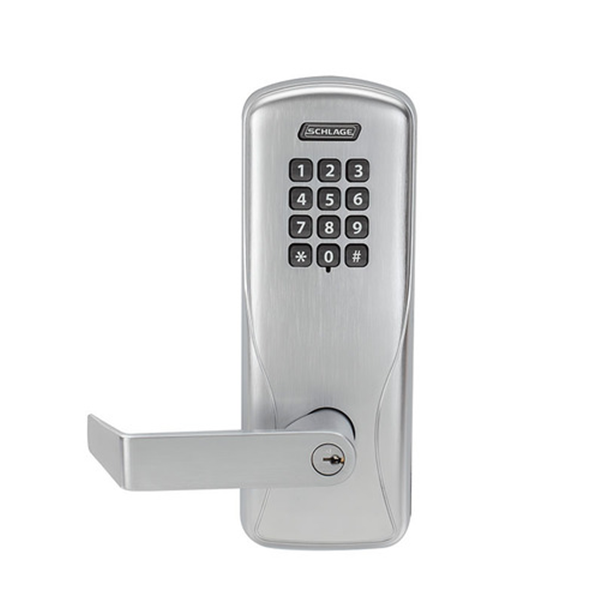

Schlage - CO-100 - Grade 1 Cylinder Keypad Programmable Lock - 6-pin - Rhodes Lever - Right Hand Reverse - Classroom - Satin Chrome - Exit Trim - Grade 1
In Stock
SKU:
SCH-CO100993R70KPRHO626PRR
NSID:
16921
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $647.15
-
$872.40 - $647.15
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The CO Series provides ideal solutions for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. Within this group is CO-100, a standalone lock that is manually programmable. User rights are stored on the lock with unique PIN codes assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door. Exit Trim for use with Push bar.
More Information Below
SPECIFICATIONS:
| LOCK FUNCTION | Classroom |
| DOOR THICKNESS | 1 3⁄4" standard, 1 3⁄8" to 2 3⁄4" optional (available in 1 ⁄8" increments) |
| BACKSET | 2 3/4″ Standard |
| HANDING | Right Hand Reverse |
| STRIKE | Standard: 1 3⁄16" lip, ANSI, 1 1⁄4" x 4 7⁄8" |
| KEYPAD | CO-100 uses 3-6 digit PIN codes as credentials. Administrator level users can program it right at the door to add or delete user PIN codes or change preferences or functions at any time. |
| LEVER TRIM | Pressure cast zinc, plated |
| POWER | 4 AA batteries (standard off the shelf: included) |
| INTERCHANGEABLE CORE | Schlage 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys standard. Additional options available including SFIC, FSIC and competitor brands. See lever and cylinder compatibility data sheet (010432) |
| KEYS | 2 Keys Included |
| PROGRAMMABLE | Locking modes, event schedules, group, individual, master, management, passage, emergency service codes. Lockout, remote override capability, and allowable entry time (3, 10, or 15 seconds), are programmable through the keypad. |
| USER CODES | support 500 users with 3-6 digit unique codes |
| WEATHERPROOF | -31° to 151°F (-35° to 66°C) |
| FINISH | 643E Aged Bronze |
