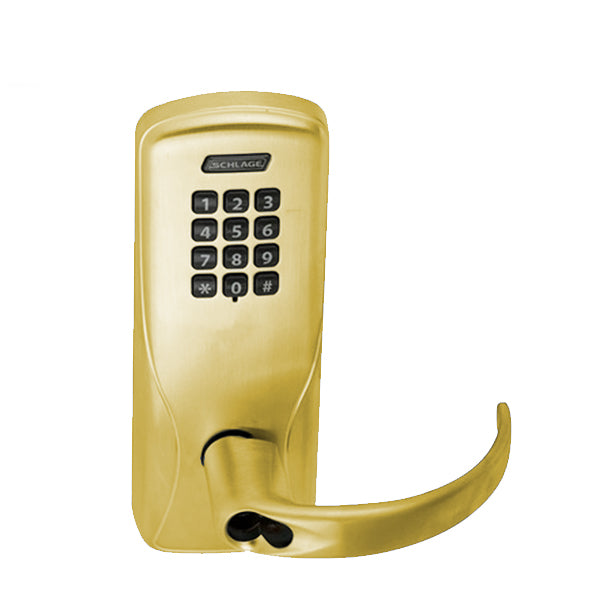

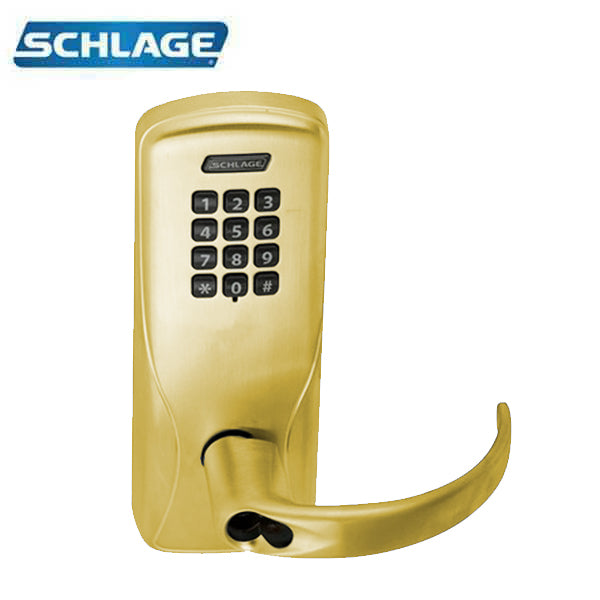

Schlage - CO-100 - Keypad Programmable Lock - SFIC Prep - Spartan Lever - Field Reversible - Classroom - Satin Brass - Grade 1
Schlage - CO-100 - Keypad Programmable Lock - SFIC Prep - Spartan Lever - Field Reversible - Classroom - Satin Brass - Grade 1
Schlage - CO-100 - Keypad Programmable Lock - SFIC Prep - Spartan Lever - Field Reversible - Classroom - Satin Brass - Grade 1
Schlage - CO-100 - Keypad Programmable Lock - SFIC Prep - Spartan Lever - Field Reversible - Classroom - Satin Brass - Grade 1
Schlage - CO-100 - Keypad Programmable Lock - SFIC Prep - Spartan Lever - Field Reversible - Classroom - Satin Brass - Grade 1

Schlage - CO-100 - Keypad Programmable Lock - SFIC Prep - Spartan Lever - Field Reversible - Classroom - Satin Brass - Grade 1

$606.00 $727.20
Availability: In Stock
  • Product SKU: SCH-CO100993R70KPSPA606JRR
  • NSID: 43290
  • SCH-CO100993R70KPSPA606JRR

    **SFIC Core Not Included


    The CO Series provides ideal solutions for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. Within this group is CO-100, a standalone lock that is manually programmable. User rights are stored on the lock with unique PIN codes assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.

    More Information Below


    $606.00
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

SPECIFICATIONS:

LOCK FUNCTION Classroom
DOOR THICKNESS 1 3⁄4" standard, 1 3⁄8" to 2 3⁄4" optional (available in 1
⁄8" increments)
BACKSET 2 3/4″ Standard
HANDING Field Reversible
STRIKE Standard: 1 3⁄16" lip, ANSI, 1 1⁄4" x 4 7⁄8"
KEYPAD CO-100 uses 3-6 digit PIN codes as credentials. Administrator level users can program it right at the door to add or delete user PIN codes or change preferences or functions at any time.
LEVER TRIM Pressure cast zinc, plated
POWER 4 AA batteries (standard off the shelf: included)
INTERCHANGEABLE CORE SFIC core (NOT INCLUDED)
PROGRAMMABLE Locking modes, event schedules, group, individual, master, management, passage, emergency service codes. Lockout, remote override capability, and allowable entry time (3, 10, or 15 seconds), are programmable through the keypad.
USER CODES support 500 users with 3-6 digit unique codes
WEATHERPROOF -31° to 151°F (-35° to 66°C)
FINISH 643E Aged Bronze



Download:

SCH-CO100993R70KPSPA606JRR

**SFIC Core Not Included


The CO Series provides ideal solutions for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. Within this group is CO-100, a standalone lock that is manually programmable. User rights are stored on the lock with unique PIN codes assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.

More Information Below

SPECIFICATIONS:

LOCK FUNCTION Classroom
DOOR THICKNESS 1 3⁄4" standard, 1 3⁄8" to 2 3⁄4" optional (available in 1
⁄8" increments)
BACKSET 2 3/4″ Standard
HANDING Field Reversible
STRIKE Standard: 1 3⁄16" lip, ANSI, 1 1⁄4" x 4 7⁄8"
KEYPAD CO-100 uses 3-6 digit PIN codes as credentials. Administrator level users can program it right at the door to add or delete user PIN codes or change preferences or functions at any time.
LEVER TRIM Pressure cast zinc, plated
POWER 4 AA batteries (standard off the shelf: included)
INTERCHANGEABLE CORE SFIC core (NOT INCLUDED)
PROGRAMMABLE Locking modes, event schedules, group, individual, master, management, passage, emergency service codes. Lockout, remote override capability, and allowable entry time (3, 10, or 15 seconds), are programmable through the keypad.
USER CODES support 500 users with 3-6 digit unique codes
WEATHERPROOF -31° to 151°F (-35° to 66°C)
FINISH 643E Aged Bronze



Download:
